UH 200 D

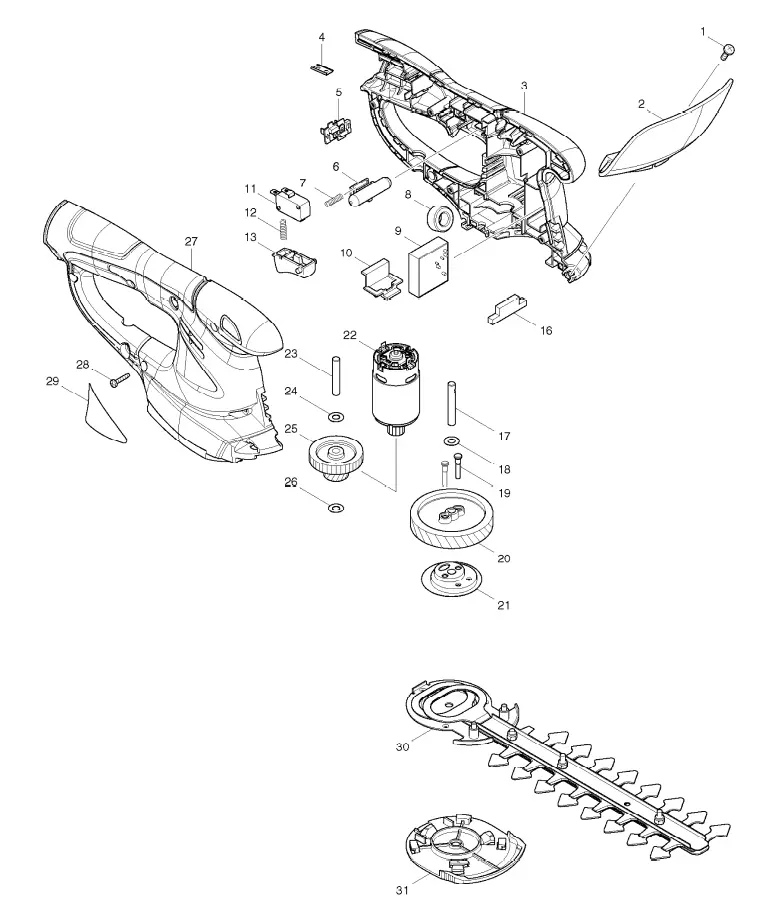

UH 200 D
| П-п | Арт | Название |
|---|---|---|
| 1 | BINDING HEAD SCREW M4X12 | |
| 2 | PROTECTOR COMPLETE | |
| 3 | HOUSING SET INC.27 | |
| 4 | SET PLATE | |
| 5 | TERMINAL | |
| 6 | LOCK OFF BUTTON | |
| 7 | COMPRESSION SPRING 4 | |
| 8 | LINE FILTER | |
| 9 | CONTROLLER ASSY INC.8 | |
| 10 | LOCK LEVER | |
| 11 | SWITCH DMC-1115-13 | |
| 12 | COMPRESSION SPRING 4 | |
| 13 | SWITCH LEVER | |
| 16 | DUST GUARD | |
| 17 | PIN 6 | |
| 18 | WASHER 6 | |
| 19 | PIN 4 | |
| 20 | HELICAL GEAR 47 | |
| 21 | CRANK COMPLETE | |
| 22 | DC MOTOR | |
| 23 | PIN 6 | |
| 24 |  |
WASHER 6 |
| 25 |  |
GEAR 12-31 |
| 26 |  |
WASHER 6 |
| 27 |  |
HOUSING SET INC.3 |
| 28 |  |
TAPPING SCREW 3X16 |
| 29 |  |
UH200D NAME PLATE |
| 30 |  |
SHEAR BLADE ASSEMBLY SET |
| 31 |  |
UNDER COVER COMPLETE |
| A01 |  |
BLADE COVER |
| A02 |  |
CHIP RECEIVER SET |
| A03 |  |
DC10WA BATTERY CHARGER |
| A04 |  |
BATTERY BL1013 SET |
| A05 |  |
SHEAR BLADE ASSEMBLY SET |
| A06 |  |
BASE FRAME |
| A07 |  |
CHANGE LEVER |
| A08 |  |
BLADE COVER |
| A09 |  |
STORAGE CASE |
