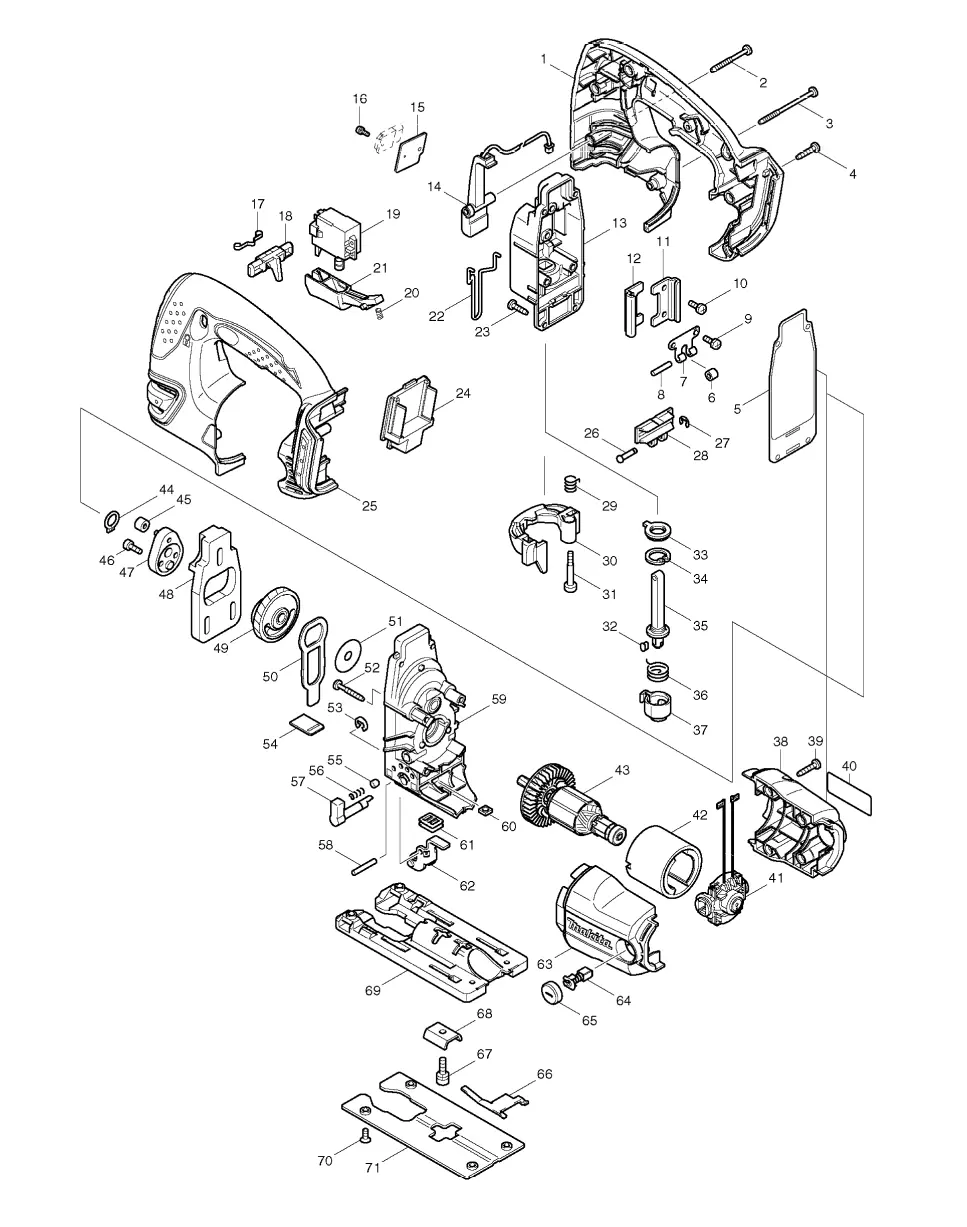

BJV180
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HANDLE SET INC. 25 |
| 2 |  |
TAPPING SCREW 4X40 |
| 3 |  |
TAPPING SCREW 4X50 |
| 4 |  |
TAPPING SCREW 4X18 |
| 5 |  |
PACKING |
| 6 |  |
PLANE BEARING 4 |
| 7 |  |
LEAF SPRING |
| 8 |  |
PIN 4 |
| 9 |  |
PAN HEAD SCREW M4X10 |
| 10 |  |
PAN HEAD SCREW M4X10 |
| 11 |  |
LINEAR GUIDE |
| 12 |  |
LINEAR GUIDE |
| 13 |  |
GEAR HOUSING COVER COMPLETE |
| 14 |  |
LIGHT CIRCUIT |
| 15 |  |
HEAT SINK |
| 16 |  |
PAN HEAD SCREW M3X8 |
| 17 |  |
LEAF SPRING |
| 18 |  |
LOCK OFF BUTTON |
| 19 |  |
SWITCH C3LA-2A-PLSRS |
| 20 | COMPRESSION SPRING 4 | |
| 21 | SWITCH LEVER | |
| 22 | SAFETY WIRE | |
| 23 | TAPPING SCREW CT 4X16 | |
| 24 | TERMINAL | |
| 25 | HANDLE SET INC. 1 | |
| 26 | PIN 4 | |
| 27 | STOP RING E-3 | |
| 28 | SLIDER | |
| 29 | TORSION SPRING 6 | |
| 30 | TOOL OPENER | |
| 31 | PAN HEAD SCREW M4 | |
| 32 | PUSH PIN | |
| 33 | DUST COVER | |
| 34 | RETAINING RING R-18 | |
| 35 | ROD | |
| 36 | TORSION SPRING 15 | |
| 37 | BLADE HOLDER | |
| 38 | MOTOR HOUSING SET INC. 63 | |
| 39 | TAPPING SCREW 4X18 | |
| 40 | BJV180 NAME PLATE | |
| 41 | ENDBELL COMPLETE | |
| 42 | YOKE UNIT | |
| 43 | ARMATURE | |
| 44 | RETAINING RING S-8 | |
| 45 | NEEDLE BEARING 407 | |
| 46 | HEX. SOCKET HEAD BOLT M4X12 | |
| 47 | CRANK COMPLETE | |
| 48 | BALANCE PLATE | |
| 49 | GEAR COMPLETE | |
| 50 | PUSH PLATE | |
| 51 | FLAT WASHER 8 | |
| 52 | TAPPING SCREW 4X30 | |
| 53 | STOP RING E-5 | |
| 54 | SEAL PLATE | |
| 55 | CAP 5 | |
| 56 | COMPRESSION SPRING 3 | |
| 57 | LEVER 17 | |
| 58 | PIN 4 | |
| 59 | GEAR HOUSING COMPLETE | |
| 60 | SQUARE NUT M5-8 | |
| 61 | DUST SEAL | |
| 62 | RETAINER COMPLETE | |
| 63 | MOTOR HOUSING SET INC. 38 | |
| 64 | CARBON BRUSH CB-430 | |
| 65 | BRUSH HOLDER CAP | |
| 66 | LEAF SPRING | |
| 67 | HEX. SOCKET HEAD BOLT M5X18 | |
| 68 | CRANK PLATE | |
| 69 | BASE | |
| 70 | COUNTERSUNK HEAD SCREW M4X8 | |
| 71 | BASE PLATE | |
| A01 | ANTI-SPLINTERING DEVICE | |
| A02 | COVER PLATE | |
| A03 | DUST NOZZLE | |
| A04 | JIGSAW BLADE NO.B22 | |
| A05 | JIGSAW BLADE NO.B10 | |
| A06 | JIGSAW BLADE NO.BR13 | |
| A07 | HEX. WRENCH 4 | |
| A08 | DC18RC FAST CHARGER | |
| A09 | BATTERY BL1830 SET | |
| A10 | PLASTIC CARRYING CASE COMPLETE | |
| A11 | BJV180RF TOOL LABEL | |
| A12 | BATTERY COVER |
