JV100D

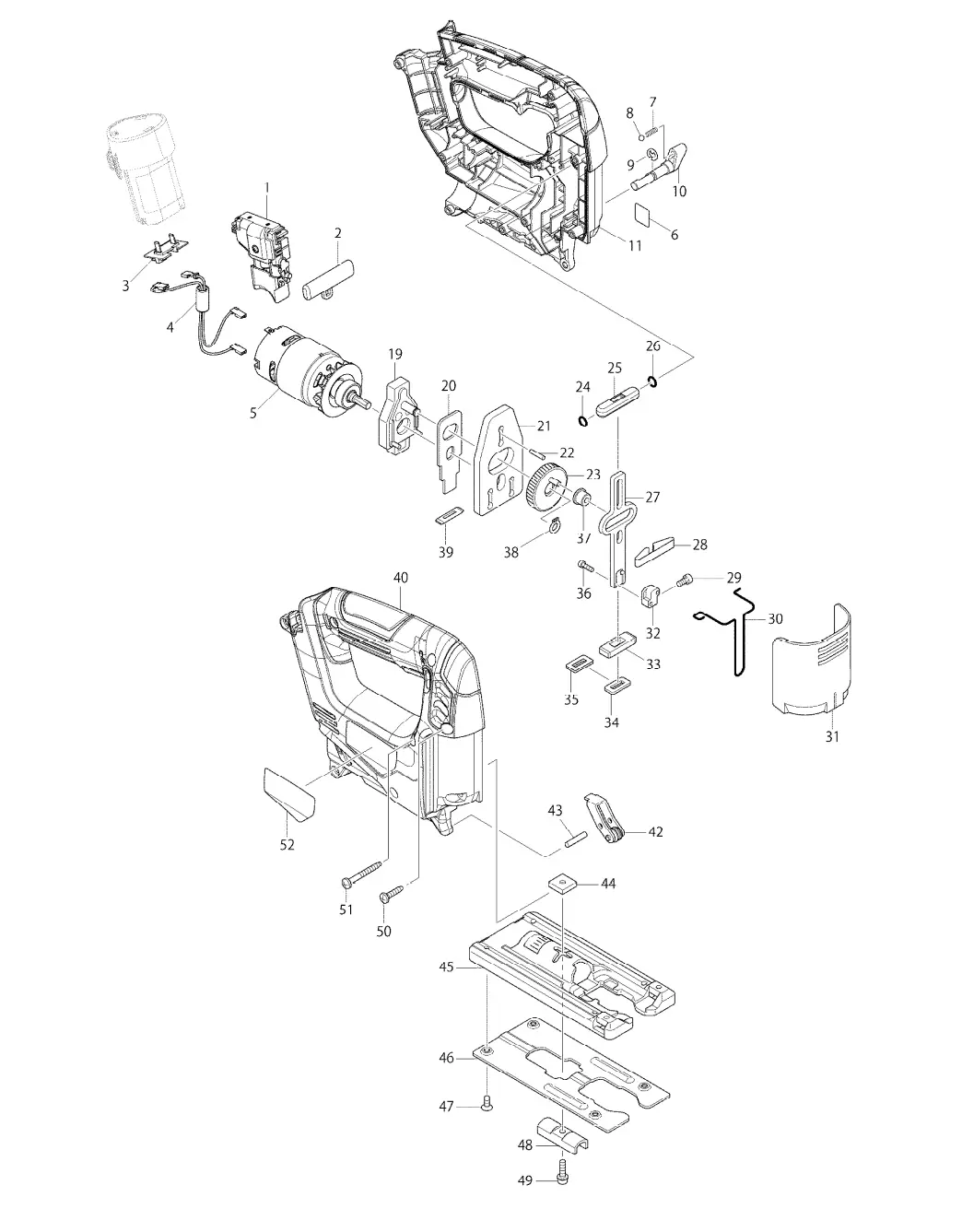

| П-п | Арт | Название |
|---|---|---|
| 1 | SWITCH C3HW-3A-M | |
| 2 | F/R CHANGE LEVER | |
| 3 | TERMINAL | |
| 4 | LINE FILTER UNIT | |
| 5 | DC MOTOR | |
| 7 | COMPRESSION SPRING 4 | |
| 8 | STEEL BALL 4 | |
| 9 | STOP RING E-4 | |
| 10 | LEVER 19 | |
| 11 | HOUSING SET INC. 40 | |
| 19 | BEARING CASE COMPLETE | |
| 20 | PUSH PLATE | |
| 21 | BALANCE PLATE | |
| 22 | PIN 3 | |
| 23 | GEAR COMPLETE | |
| 24 | O RING 5 | |
| 25 | SLIDER GUIDE | |
| 26 | O RING 5 | |
| 27 | SLIDER | |
| 28 | LEAF SPRING | |
| 29 | HEX. SOCKET HEAD BOLT M4X8 | |
| 30 | SAFETY WIRE | |
| 31 | DUST COVER | |
| 32 | BLADE CLAMP | |
| 33 | SLIDER SUPPORT | |
| 34 | POLY URETANE SPONGE SEAL | |
| 35 | SEAL PLATE | |
| 36 | HEX. SOCKET HEAD BOLT M3X10 | |
| 37 | COLLAR SLEEVE | |
| 38 | RETAINING RING S-6 | |
| 39 | DUST SEAL | |
| 40 | HOUSING SET INC. 11 | |
| 42 | RETAINER COMPLETE | |
| 43 | PIN 4 | |
| 44 | HOLDER | |
| 45 | BASE | |
| 46 | BASE PLATE | |
| 47 | COUNTERSUNK HEAD SCREW M4X8 | |
| 48 | CLAMP COMPLETE | |
| 49 | HEX. SOCKET HEAD BOLT M4X16 | |
| 50 | TAPPING SCREW 4X18 | |
| 51 | TAPPING SCREW 4X35 | |
| 52 | JV100D NAME PLATE | |
| A01 | JIGSAW BLADE NO.B10 | |
| A02 | HEX. WRENCH 3 | |
| A03 | GUIDE RULE SET | |
| A04 | DC10WA BATTERY CHARGER | |
| A05 | BATTERY BL1013 SET | |
| A06 | PLASTIC CARRYING CASE | |
| A07 | JV100DWE PLASTIC CASE LABEL |
