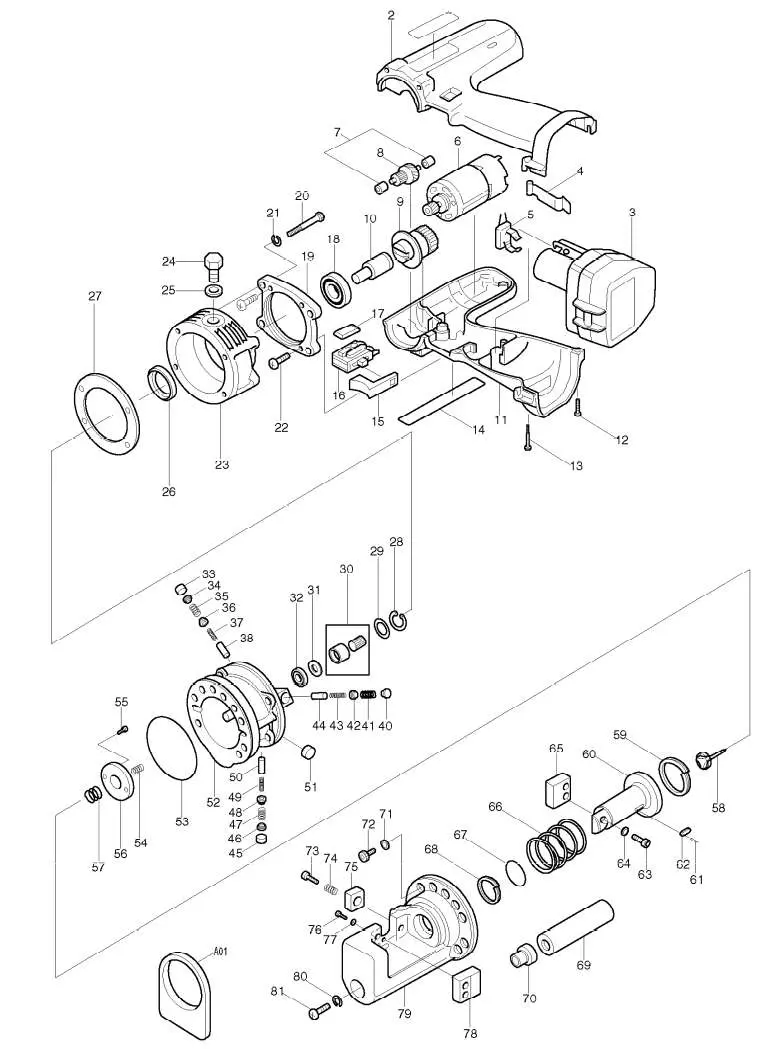

SC 130 D
SC 130 D
| П-п | Арт | Название |
|---|---|---|
| 2 | HOUSING SET INC. 11 | |
| 3 | BATTERY 1202 SET | |
| 4 | SET PLATE | |
| 5 | BATTERY HOLDER | |
| 6 | DC MOTOR 12V | |
| 7 | PLANE BEARING 4 | |
| 8 | GEAR COMPLETE 15-38 | |
| 9 | SPINDLE COMPLETE | |
| 10 | ECCENTRIC SHAFT T45417 | |
| 11 | HOUSING SET INC. 2 | |
| 12 | TAPPING SCREW BT4X20 | |
| 13 | PAN HEAD SCREW M4X20 | |
| 15 | SWITCH LEVER | |
| 16 | SWITCH | |
| 17 | COVER | |
| 18 | BALL BEARING 6002RU | |
| 19 | INTERMEDIATE HOUSING T45415 | |
| 20 | HEX. SOCKET HEAD BOLT M5X55 | |
| 21 | SPRING WASHER 5 | |
| 22 | TAPPING SCREW BT4X20 | |
| 23 | BEARING HOUSING #T318814 | |
| 24 | HEX. BOLT M10X16 | |
| 25 | SEAL WASHER WF10171.6 | |
| 26 | OIL SEAL MSH15257 | |
| 27 | LINER B #T45464 | |
| 28 | STOP RING H19 | |
| 29 | NEEDLE BEARING HOLDER B T45422 | |
| 30 | NEEDLE BEARING #RNAF81510 | |
| 31 | NEEDLE BEARING HOLDER A T45421 | |
| 32 | BALL BEARING 625ZZ | |
| 33 | URETHAN PACKING | |
| 34 | SPRING SUPPORTER | |
| 35 | SPRING #43449N2 | |
| 36 | CHECK VALVE | |
| 37 | PISTON RETURN RING | |
| 38 | PISTON | |
| 39 | URETHAN PACKING | |
| 40 | SPRING SUPPORTER | |
| 41 | SPRING #43449N2 | |
| 42 | CHECK VALVE | |
| 43 | PISTON RETURN RING | |
| 44 | PISTON | |
| 45 | URETHAN PACKING | |
| 46 | SPRING SUPPORTER | |
| 47 | SPRING #43449N2 | |
| 48 | CHECK VALVE | |
| 49 | PISTON RETURN RING | |
| 50 | PISTON | |
| 51 | MAGNET | |
| 52 | CYLINDER | |
| 53 | O RING S70 | |
| 54 | RELEASE VALVE SPRING | |
| 55 | HEX. SOCKET HEAD BOLT M4X6 | |
| 56 | STOPPER PLATE #45423 | |
| 57 | SPRING #T45378 | |
| 58 | RELEASE VALVE #T45461 | |
| 59 | PACKING OSI50406 | |
| 60 | CUTTER ROD | |
| 61 | SPRING PIN 2.5X10 | |
| 62 | KEY T45420 | |
| 63 | HEX. SOCKET HEAD BOLT M5X12 | |
| 64 | FLAT WASHER 5 | |
| 65 | CUTTER BLADE SET INC. 78 | |
| 66 | SPRING #T45424 | |
| 67 | O RING P26-1-B | |
| 68 | BACK-UP RING P26 | |
| 69 | OIL LEVELER SACK | |
| 70 | BUSH T43694 | |
| 71 | WASHER 6 | |
| 72 | HEX. SOCKET HEAD BOLT M6X16 | |
| 73 | BOLT #T45452 | |
| 74 | SPRING #T45470 | |
| 75 | STOPPER | |
| 76 | HEX. SOCKET HEAD BOLT M5X12 | |
| 77 | FLAT WASHER 5 | |
| 78 | CUTTER BLADE SET INC. 65 | |
| 79 | CUTTER HEAD | |
| 80 | SPRING WASHER 8 | |
| 81 | WOOD SCREW 5X60 | |
| A01 | BALANCE STAND | |
| A02 | BATTERY COVER | |
| A03 | PLASTIC CARRYING CASE | |
| A04 | INNER FITMENT | |
| A05 | WRENCH 17-14 | |
| A06 | HEX. WRENCH 3 | |
| A07 | HEX. WRENCH 4 | |
| A08 | HEX. WRENCH 5 | |
| A09 | OIL 35CC | |
| B01 | DC1209 FAST CHARGER |
