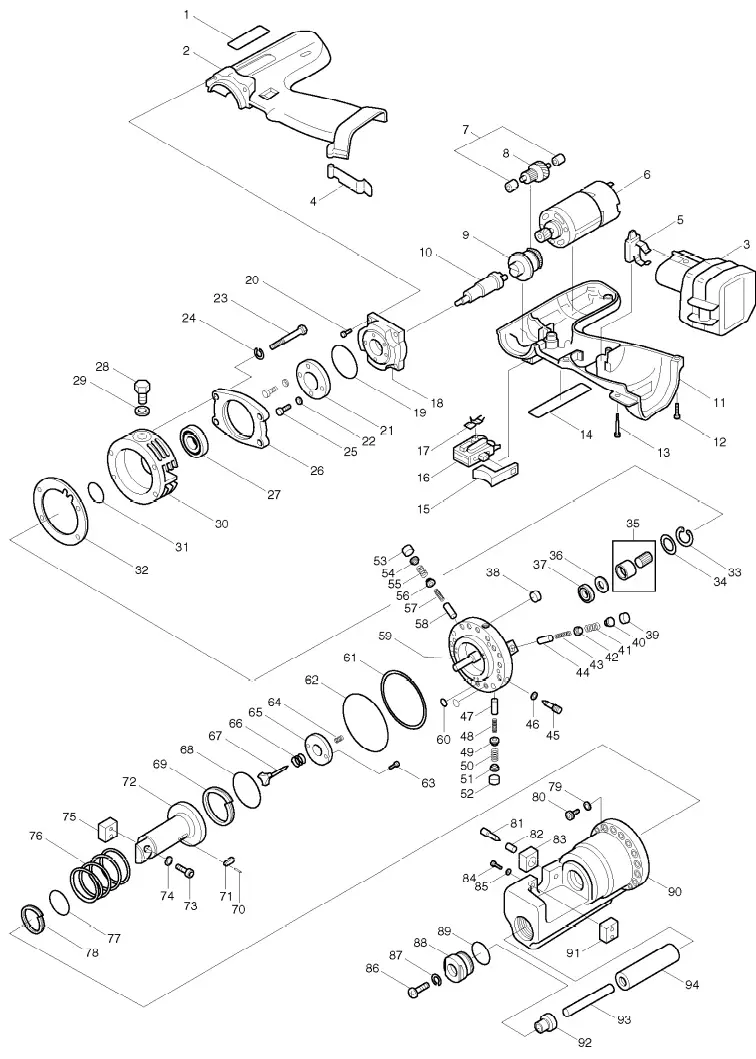

SC 160 D
SC 160 D
| П-п | Арт | Название |
|---|---|---|
| 2 | HOUSING SET INC. 11 | |
| 3 | BATTERY 1202 SET | |
| 4 | SET PLATE | |
| 5 | BATTERY HOLDER | |
| 6 | DC MOTOR 12V | |
| 7 | PLANE BEARING 4 | |
| 8 | GEAR COMPLETE 15-38 | |
| 9 | SPINDLE COMPLETE | |
| 10 | ECCENTRIC SHAFT | |
| 11 | HOUSING SET INC. 2 | |
| 12 | TAPPING SCREW BT4X20 | |
| 13 | PAN HEAD SCREW M4X20 | |
| 15 | SWITCH LEVER | |
| 16 | SWITCH | |
| 17 | COVER | |
| 18 | MOTOR FRANGE | |
| 20 | TAPPING SCREW M4X20 | |
| 21 | FLANGE | |
| 22 | WASHER 4 | |
| 23 | BOLT HB5X50 | |
| 24 | WASHER SW5 | |
| 25 | BOLT HB4X22 | |
| 26 | INTERMEDIATE HOUSING | |
| 27 | BALL BEARING 6002RU | |
| 28 | HEX. BOLT M10X16 | |
| 29 | SEAL WASHER WF10171.6 | |
| 30 | BEARING HOUSING | |
| 31 | OIL SEAL MSH15257 | |
| 32 | LINER B | |
| 33 | STOP RING H19 | |
| 34 | NEEDLE BEARING HOLDER B T45422 | |
| 35 | NEEDLE BEARING #RNAF81510 | |
| 36 | NEEDLE BEARING HOLDER A T45421 | |
| 37 | BALL BEARING 625ZZ | |
| 38 | MAGNET | |
| 39 | URETHAN PACKING | |
| 40 | SPRING SUPPORTER | |
| 41 | SPRING #43449N2 | |
| 42 | CHECK VALVE | |
| 43 | PISTON RETURN RING | |
| 44 | PISTON | |
| 45 | RETURN BULB | |
| 46 | O RING S4 | |
| 47 |  |
PISTON |
| 48 |  |
PISTON RETURN RING |
| 49 |  |
CHECK VALVE |
| 50 |  |
SPRING #43449N2 |
| 51 |  |
SPRING SUPPORTER |
| 52 |  |
URETHAN PACKING |
| 53 |  |
URETHAN PACKING |
| 54 |  |
SPRING SUPPORTER |
| 55 |  |
SPRING #43449N2 |
| 56 |  |
CHECK VALVE |
| 57 |  |
PISTON RETURN RING |
| 58 |  |
PISTON |
| 59 |  |
CYLINDER |
| 60 |  |
O RING P6 |
| 61 |  |
BACK-UP RING G55 |
| 62 |  |
O RING G55 |
| 63 |  |
HEX. SOCKET HEAD BOLT M4X6 |
| 64 |  |
RELEASE VALVE SPRING |
| 65 |  |
STOPPER PLATE #45423 |
| 66 |  |
SPRING #T45378 |
| 67 |  |
RELEASE VALVE #T45461 |
| 68 |  |
O RING P46 |
| 69 |  |
BACK-UP RING P46 |
| 70 |  |
SPRING PIN 2.5X10 |
| 71 |  |
KEY T45420 |
| 72 |  |
CUTTER ROD |
| 73 |  |
HEX. SOCKET HEAD BOLT 5X12 |
| 74 |  |
WASHER 5 |
| 75 |  |
CUTTER BLADE SET INC. 91 |
| 76 |  |
SPRING |
| 77 |  |
O RING P26 |
| 78 |  |
BACK-UP RING P26 |
| 79 |  |
WASHER 6 |
| 80 |  |
HEX. SOCKET HEAD BOLT M6X25 |
| 81 |  |
BOLT |
| 82 |  |
SPRING #T45470 |
| 83 |  |
STOPPER |
| 84 |  |
HEX. SOCKET HEAD BOLT 5X12 |
| 85 |  |
WASHER 5 |
| 86 |  |
WOOD SCREW 5X60 |
| 87 |  |
SPRING WASHER 8 |
| 88 |  |
BUSH HOLDER |
| 89 |  |
O RING P22A |
| 90 |  |
CUTTER HEAD |
| 91 |  |
CUTTER BLADE SET INC. 75 |
| 92 |  |
BUSH |
| 94 |  |
OIL LEVELER SACK |
| 95 |  |
FLANGE SET PLATE |
| 96 |  |
POSITION SPRING |
| 97 |  |
LEAF SPRING |
| 98 |  |
STEEL BALL S4 |
| A01 | BALANCE STAND | |
| A02 | BATTERY COVER | |
| A03 | PLASTIC CARRYING CASE | |
| A04 | HEX. WRENCH 3 | |
| A05 | HEX. WRENCH 4 | |
| A06 | HEX. WRENCH 5 | |
| A07 | HEX. WRENCH 6 | |
| A08 | WRENCH 17-14 | |
| A09 | OIL 35CC |
