BHR 200
BHR 200

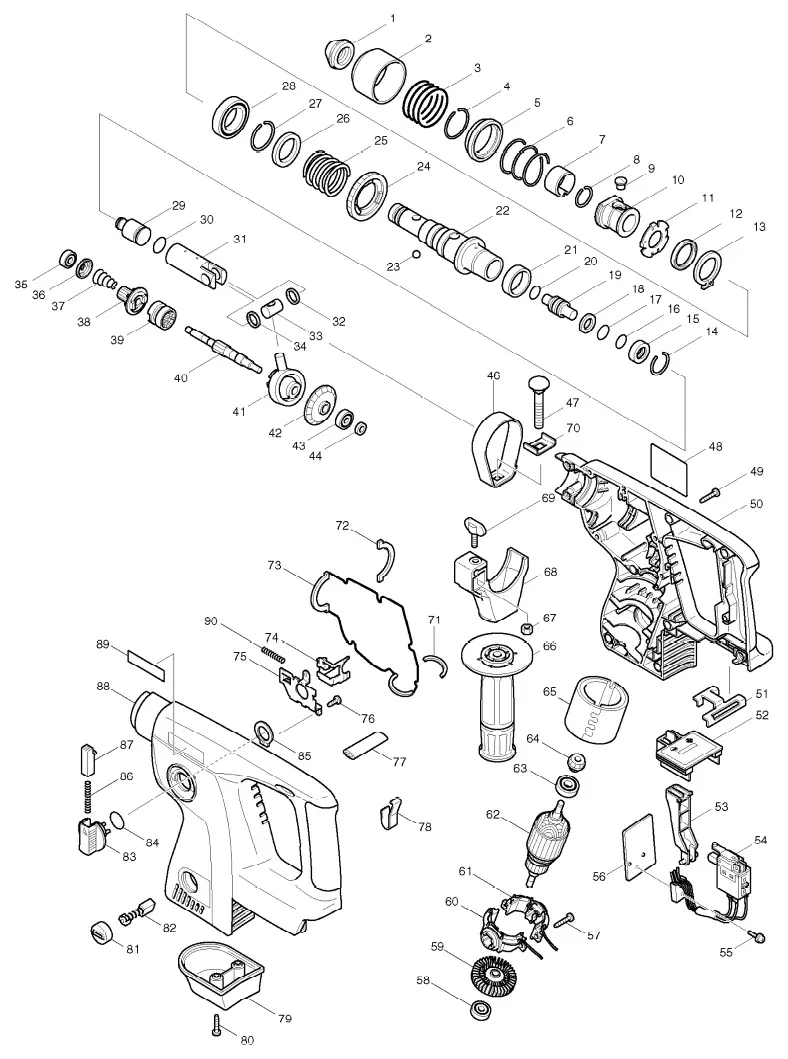

| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 31 | |
| 2 | CHUCK COVER | |
| 3 | COMPRESSION SPRING 38 | |
| 4 | RING SPRING 30.5 | |
| 5 | SPRING GUIDE | |
| 6 | COMPRESSION SPRING 35 | |
| 7 | LEAF SPRING 26 | |
| 8 | RING SPRING 17 фото | |
| 9 | PIN 8 | |
| 10 | CHUCK RING | |
| 11 | GUIDE WASHER | |
| 12 | OIL SEAL 25 | |
| 13 | RETAINING RING S-25 | |
| 14 | RING SPRING 21 | |
| 15 | O RING CASE | |
| 16 | O RING 11 | |
| 17 | O RING 12 | |
| 18 | RING 12 | |
| 19 | IMPACT BOLT | |
| 20 | O RING 12 | |
| 21 | PLANE BEARING 26 | |
| 22 | TOOL HOLDER | |
| 23 | STEEL BALL 7.0 | |
| 24 | SPUR GEAR 49 | |
| 25 | COMPRESSION SPRING 29 | |
| 26 | FLAT WASHER 29 | |
| 27 | RING SPRING 26 | |
| 28 | BALL BEARING 6905LLB | |
| 29 | STRIKER | |
| 30 | O RING 15 | |
| 31 | PISTON CYLINDER | |
| 32 | FLAT WASHER 12 | |
| 33 | PISTON JOINT | |
| 34 | FLAT WASHER 12 | |
| 35 | BALL BEARING 606ZZ | |
| 36 | CUP WASHER 6 | |
| 37 | CONICAL COMP. SPRING 7-14 | |
| 38 | SPUR GEAR 10 | |
| 39 | CLUTCH CAM | |
| 40 | CAM SHAFT | |
| 41 | SWASH BEARING 10 | |
| 42 | ZEROL BEVEL GEAR 32 | |
| 43 | BALL BEARING 626DDW | |
| 44 | RING 6 | |
| 46 | GRIP SPRING 50 | |
| 47 | CUP SQUARE NECK BOLT M8X50 | |
| 48 | NAME PLATE BHR200 | |
| 49 | TAPPING SCREW 4X18 | |
| 50 | HOUSING SET INC. 88, 89 | |
| 51 | SUPPORT PLATE | |
| 52 | TERMINAL | |
| 53 | SWITCH LEVER | |
| 54 | SWITCH TG523BFSB-1 | |
| 55 | PAN HEAD SCREW M3X8 | |
| 56 | HEAT SINK | |
| 57 | TAPPING SCREW 4X18 | |
| 58 | BALL BEARING 626DDW | |
| 59 | FAN 44 | |
| 60 | BRUSH HOLDER | |
| 61 | BRUSH HOLDER | |
| 62 | ARMATURE ASS\\\\\'Y 24V INC. 58, 59, 63 | |
| 63 | BALL BEARING 608LLU | |
| 64 | ZEROL BEVEL GEAR 11 | |
| 65 | YOKE UNIT | |
| 66 | GRIP 36 COMPLETE | |
| 67 | HEX. NUT M5 | |
| 68 | GRIP BASE | |
| 69 | THUMB SCREW M5X14 | |
| 70 | PLATE | |
| 71 | SEAL RING B | |
| 72 | SEAL RING A | |
| 73 | SEAL RING | |
| 74 | CHANGE PLATE | |
| 75 | GUIDE PLATE | |
| 76 |  |
TAPPING SCREW 4X12 |
| 77 |  |
F/R CHANGE LEVER |
| 78 |  |
VIBRATION ISOLATOR PLATE |
| 79 |  |
FOOT |
| 80 |  |
TAPPING SCREW 4X18 |
| 81 |  |
BRUSH HOLDER CAP |
| 82 |  |
CARBON BRUSH CB-430 |
| 83 |  |
CHANGE LEVER |
| 84 |  |
O RING 17 |
| 85 |  |
RETAINING RING (EXT) S-18 |
| 86 |  |
COMPRESSION SPRING 4 |
| 87 |  |
LOCK BUTTON |
| 88 |  |
HOUSING SET INC. 50, 89 |
| 89 |  |
MAKITA LABEL |
| 90 |  |
COMPRESSION SPRING 5 |
| 91 |  |
SPONGE |
| 92 |  |
STOPPER PLATE |
| 93 |  |
SUB PLATE |
| 94 |  |
TORSION SPRING 9 |
| 95 |  |
PAN HEAD SCREW M4X8 |
| A01 |  |
GREASE VESSEL 93G |
| A02 |  |
DEPTH GAUGE |
| A03 |  |
PLASTIC CARRYING CASE |
| A04 |  |
BATTERY BH2433 SET |
| A05 |  |
DC24SC BATTERY CHARGER |
| B01 |  |
GRIP 36 ASS\\\\\'Y INC. 46, 47Б 66-70 |
| B02 |  |
SEAL RING SET INC. 71-73 |
| E01 |  |
BATTERY BH2433 SET |
