DHR 202

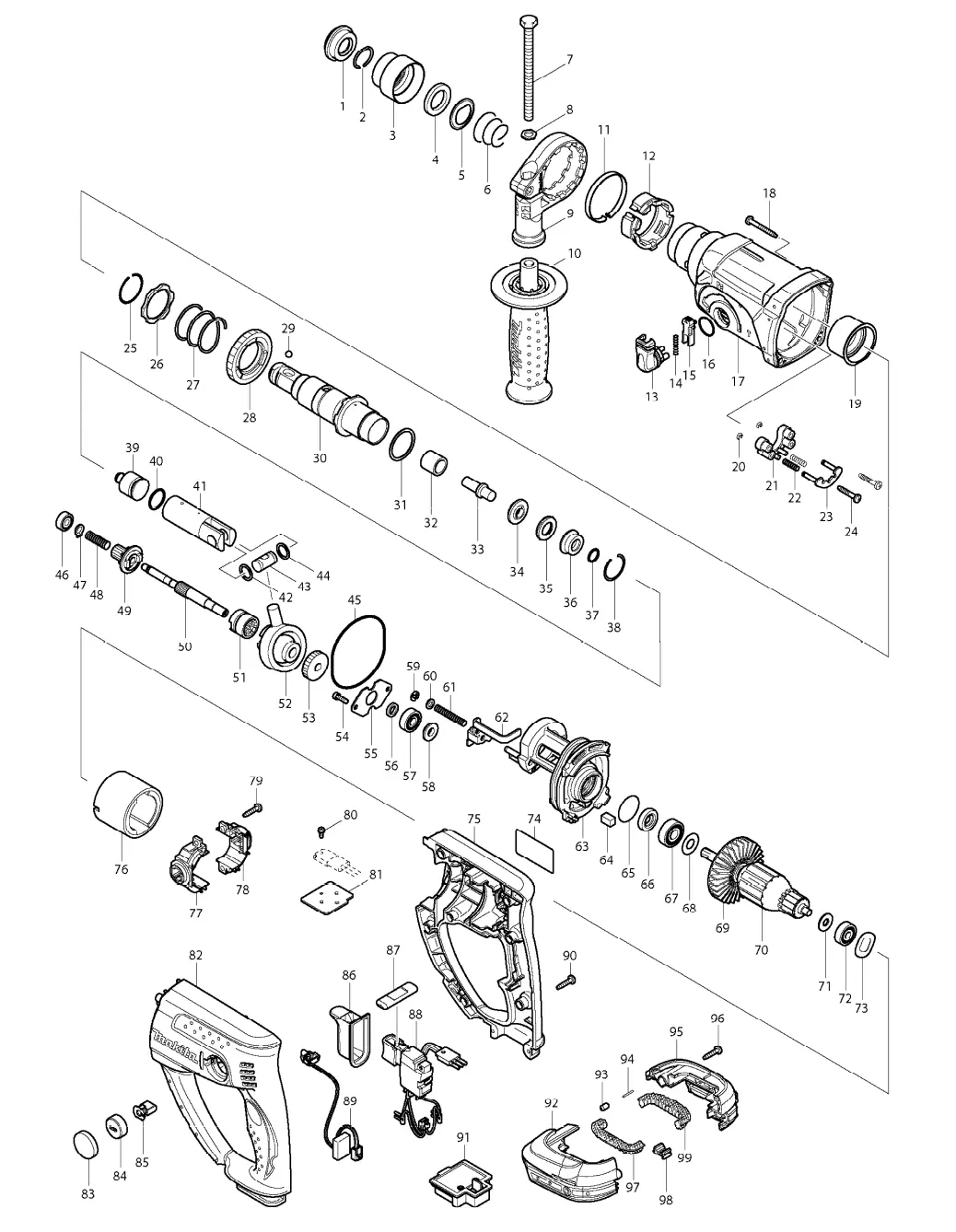

DHR 202
| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 35 | |
| 2 | RING SPRING 19 | |
| 3 | CHUCK COVER | |
| 4 | RING 21 | |
| 5 | GUIDE WASHER | |
| 6 | CONICAL COMP. SPRING 21-29 | |
| 7 | HEX. BOLT M8X120 | |
| 8 | HEX. WASHER | |
| 9 | GRIP BASE | |
| 10 | GRIP 36 COMPLETE | |
| 13 | CHANGE LEVER | |
| 14 | COMPRESSION SPRING 3 | |
| 15 | LOCK BUTTON | |
| 16 | O RING 17 | |
| 17 | GEAR HOUSING COMPLETE | |
| 18 | TAPPING SCREW 4X35 | |
| 19 | NEEDLE BEARING COMPLETE | |
| 20 | STOP RING E-3 | |
| 21 | GUIDE BASE | |
| 22 | COMPRESSION SPRING 4 | |
| 23 | LOCK PLATE COMPLETE | |
| 24 | TAPPING SCREW 4X25 | |
| 25 | RING SPRING 29 | |
| 26 | WASHER 31 | |
| 27 | COMPRESSION SPRING 32 | |
| 28 | SPUR GEAR 51 | |
| 29 | STEEL BALL 7.0 | |
| 30 | TOOL HOLDER COMPLETE | |
| 31 |  |
FLAT WASHER 28 |
| 32 |  |
SLEEVE 9 |
| 33 |  |
IMPACT BOLT |
| 34 |  |
RING 10 |
| 35 |  |
CUSHION RING 13 |
| 36 |  |
O RING CASE |
| 37 |  |
O RING 9 |
| 38 |  |
RING SPRING 28 |
| 39 |  |
STRIKER |
| 40 |  |
O RING 16 |
| 41 |  |
PISTON CYLINDER |
| 42 |  |
FLAT WASHER 12 |
| 43 |  |
PISTON JOINT |
| 44 |  |
FLAT WASHER 12 |
| 45 |  |
O-RING 63 |
| 46 |  |
BALL BEARING 606ZZ |
| 47 |  |
RETAINING RING S-7 |
| 48 |  |
COMPRESSION SPRING 7 |
| 49 |  |
SPUR GEAR 10 |
| 50 |  |
CAM SHAFT |
| 51 |  |
CLUTCH CAM |
| 52 |  |
SWASH BEARING 10 |
| 53 |  |
HELICAL GEAR 25 |
| 54 |  |
HEX. SOCKET HEAD BOLT M4X12 |
| 55 |  |
BEARING RETAINER |
| 56 |  |
FLAT WASHER 8 |
| 57 |  |
BALL BEARING 608ZZ |
| 58 |  |
RING 8 |
| 59 |  |
STOP RING E-4 |
| 60 |  |
FLAT WASHER 5 |
| 61 |  |
COMPRESSION SPRING 6 |
| 62 |  |
CHANGE PLATE |
| 63 |  |
INNER HOUSING COMPLETE |
| 65 |  |
O RING 26 |
| 66 |  |
OIL SEAL 10 |
| 67 |  |
BALL BEARING 6000DDW |
| 68 |  |
FLAT WASHER 10 |
| 69 |  |
FAN 64 |
| 70 |  |
ARMATURE ASS\\\'Y 18V INC. 67-69,71,72 |
| 71 |  |
FLAT WASHER 7 |
| 72 |  |
BALL BEARING 627DDW |
| 73 |  |
WAVE WASHER 15 |
| 74 |  |
DHR202 NAME PLATE |
| 75 |  |
HOUSING SET INC. 82 |
| 76 |  |
YOKE UNIT |
| 77 |  |
BRUSH HOLDER COMPLETE |
| 79 |  |
TAPPING SCREW 4X18 |
| 80 |  |
PAN HEAD SCREW M3X10 |
| 81 |  |
HEAT SINK |
| 82 | HOUSING SET INC. 75 | |
| 83 | HOLDER CAP COVER | |
| 84 | HOLDER CAP | |
| 85 | CARBON BRUSH CB-441 | |
| 86 | SWITCH COVER | |
| 87 | F/R CHANGE LEVER | |
| 88 | SWITCH UNIT | |
| 89 | LIGHT CIRCUIT | |
| 90 | TAPPING SCREW 4X18 | |
| 91 | TERMINAL | |
| 92 | BATTERYHOUSING SET INC. 95 | |
| 93 | RUBBER PIN 5 | |
| 94 | PIN 1.5 | |
| 95 | BATTERYHOUSING SET INC. 92 | |
| 96 | TAPPING SCREW 4X18 | |
| 97 | CUSHION RUBBER | |
| 98 | CUSHION | |
| 99 | CUSHION RUBBER | |
| 100 | TOOL HOLDER ASS\\\'Y INC. 25-28,30,32-38 | |
| A01 | DEPTH GAUGE | |
| A02 | BATTERY BL1830 SET | |
| A03 | BATTERY COVER | |
| A04 | DC18RC FASTCHARGER | |
| A05 | PLASTIC CASE COMPLETE |
