DHR 241

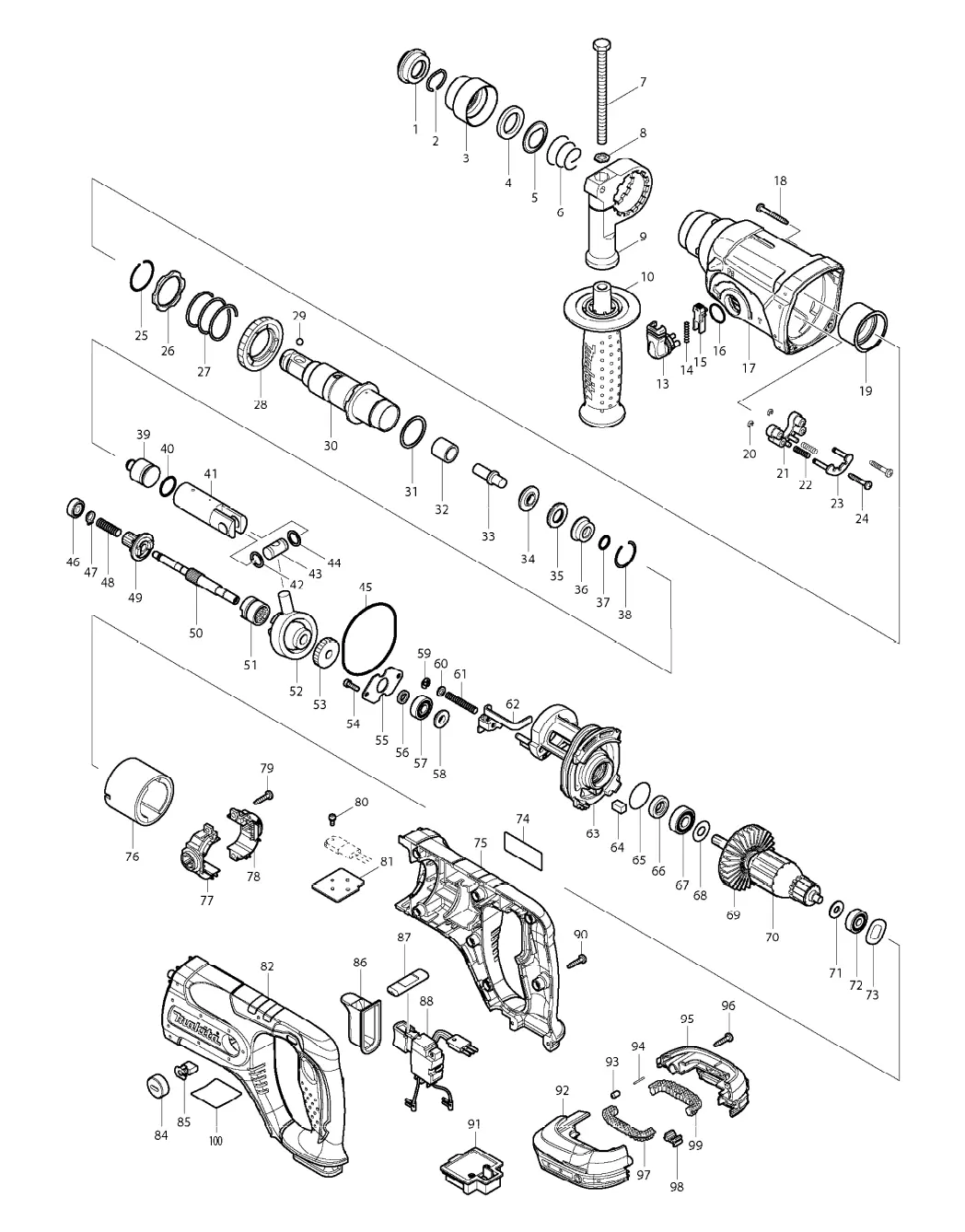

DHR 241
| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 35 | |
| 2 | RING SPRING 19 | |
| 3 | CHUCK COVER | |
| 4 | RING 21 | |
| 5 | GUIDE WASHER | |
| 6 | CONICAL COMP. SPRING 21-29 | |
| 7 | HEX. BOLT M8X120 | |
| 8 | HEX. WASHER | |
| 9 | GRIP BASE | |
| 10 | GRIP 36 COMPLETE | |
| 13 | CHANGE LEVER | |
| 14 | COMPRESSION SPRING 3 | |
| 15 | LOCK BUTTON | |
| 16 | O RING 17 | |
| 17 | GEAR HOUSING COMPLETE | |
| 18 | TAPPING SCREW 4X35 | |
| 19 | NEEDLE BEARING COMPLETE | |
| 20 | STOP RING E-3 | |
| 21 | GUIDE BASE | |
| 22 | COMPRESSION SPRING 4 | |
| 23 | LOCK PLATE COMPLETE | |
| 24 | TAPPING SCREW 4X25 | |
| 25 | RING SPRING 29 | |
| 26 | WASHER 31 | |
| 27 | COMPRESSION SPRING 32 | |
| 28 | SPUR GEAR 51 | |
| 29 | STEEL BALL 7.0 | |
| 30 | TOOL HOLDER COMPLETE | |
| 31 | FLAT WASHER 28 | |
| 32 | SLEEVE 9 | |
| 33 | IMPACT BOLT | |
| 34 | RING 10 | |
| 35 | CUSHION RING 13 | |
| 36 | O RING CASE | |
| 37 | O RING 9 | |
| 38 | RING SPRING 28 | |
| 39 | STRIKER | |
| 40 | O RING 16 | |
| 41 | PISTON CYLINDER | |
| 42 | FLAT WASHER 12 | |
| 43 | PISTON JOINT | |
| 44 | FLAT WASHER 12 | |
| 45 | O-RING 63 | |
| 46 | BALL BEARING 606ZZ | |
| 47 | RETAINING RING S-7 | |
| 48 | COMPRESSION SPRING 7 | |
| 49 | SPUR GEAR 10 | |
| 50 | CAM SHAFT | |
| 51 | CLUTCH CAM | |
| 52 | SWASH BEARING 10 | |
| 53 | HELICAL GEAR 25 | |
| 54 | HEX. SOCKET HEAD BOLT M4X12 | |
| 55 | BEARING RETAINER | |
| 56 | FLAT WASHER 8 | |
| 57 | BALL BEARING 608ZZ | |
| 58 | RING 8 | |
| 59 | STOP RING E-4 | |
| 60 | FLAT WASHER 5 | |
| 61 | COMPRESSION SPRING 6 | |
| 62 | CHANGE PLATE | |
| 63 | INNER HOUSING COMPLETE | |
| 65 | O RING 26 | |
| 66 | OIL SEAL 10 | |
| 67 | BALL BEARING 6000DDW | |
| 68 | FLAT WASHER 10 | |
| 69 | FAN 64 | |
| 70 | ARMATURE ASS\\\'Y 18V INC. 67-69,71,72 | |
| 71 | FLAT WASHER 7 | |
| 72 | BALL BEARING 627DDW | |
| 73 | WAVE WASHER 15 | |
| 74 | DHR241 NAME PLATE 20MM | |
| 75 | HOUSING SET INC. 82 | |
| 76 | YOKE UNIT | |
| 77 | BRUSH HOLDER COMPLETE | |
| 79 | TAPPING SCREW 4X18 | |
| 80 | PAN HEAD SCREW M3X10 | |
| 81 | HEAT SINK | |
| 82 | HOUSING SET INC. 75 | |
| 84 | HOLDER CAP | |
| 85 | CARBON BRUSH CB-441 | |
| 86 | SWITCH COVER | |
| 87 | F/R CHANGE LEVER | |
| 88 | SWITCH TG553FSB-7B | |
| 90 | TAPPING SCREW 4X18 | |
| 91 | TERMINAL | |
| 92 | BATTERYHOUSING SET INC. 95 | |
| 93 | RUBBER PIN 5 | |
| 94 | PIN 1.5 | |
| 95 | BATTERYHOUSING SET INC. 92 | |
| 96 | TAPPING SCREW 4X18 | |
| 97 | CUSHION RUBBER | |
| 98 | CUSHION | |
| 99 | CUSHION RUBBER | |
| 100 | DHR241 SERIAL NO. LABEL | |
| 101 | TOOL HOLDER ASS\\\'Y INC. 25-28,30,32-38 | |
| A01 | DEPTH GAUGE | |
| A02 | DC18RC FAST CHARGER | |
| A03 | BATTERY BL1830 SET | |
| A04 | BATTERY COVER | |
| A05 | PLASTIC CASE COMPLETE |
