DHR 263

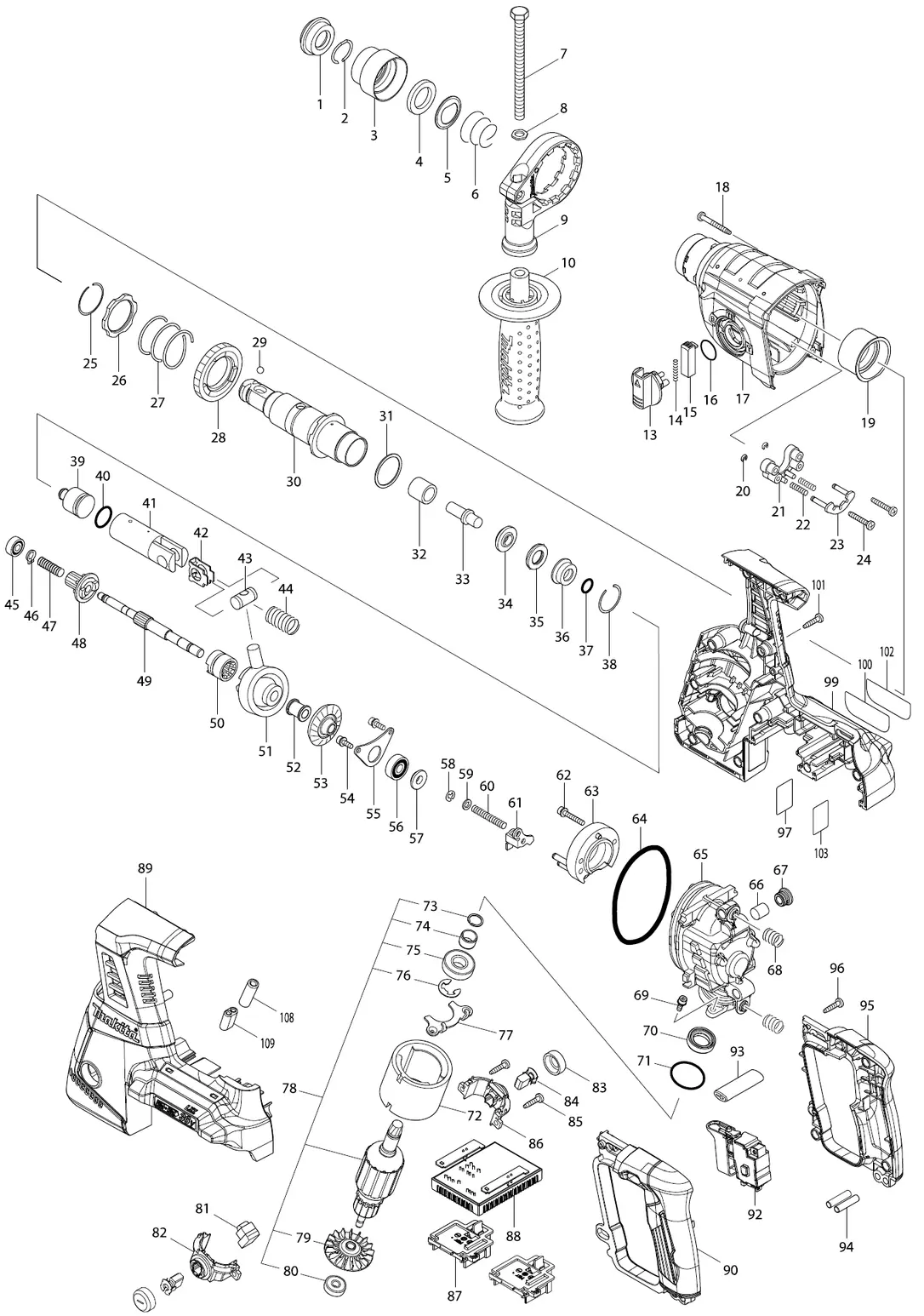

DHR 263
| П-п | Арт | Название |
|---|---|---|
| 001 | CAP 35 | |
| 002 | RING SPRING 19 | |
| 003 | CHUCK COVER | |
| 004 | RING 21 | |
| 005 | GUIDE WASHER | |
| 006 | CONICAL COMP. SPRING 21-29 | |
| 007 | HEX. BOLT M8X120 | |
| 008 | HEX. WASHER | |
| 009 | GRIP BASE | |
| 10 | GRIP 36 COMPLETE | |
| 13 | CHANGE LEVER | |
| 14 | COMPRESSION SPRING 4 | |
| 15 | LOCK BUTTON | |
| 16 | O RING 17 | |
| 17 | GEAR HOUSING COMPLETE | |
| C10 | OIL SEAL 25 | |
| 18 | TAPPING SCREW 4X40 | |
| 19 | NEEDLE BEARING COMPLETE | |
| 20 | STOP RING E-3 | |
| 21 | GUIDE BASE | |
| 22 | COMPRESSION SPRING 4 | |
| 23 | LOCK PLATE COMPLETE | |
| 24 | TAPPING SCREW 4X25 | |
| 25 | RING SPRING 29 | |
| 26 | WASHER 31 | |
| 27 | COMPRESSION SPRING 32 | |
| 28 | SPUR GEAR 51 | |
| 29 | STEEL BALL 7.0 | |
| 30 | TOOL HOLDER COMPLETE | |
| 31 | FLAT WASHER 28 | |
| 32 | SLEEVE 9 | |
| 33 | IMPACT BOLT | |
| 34 | RING 10 | |
| 35 | CUSHION RING 13 | |
| 36 | O RING CASE | |
| 37 | O RING 9 | |
| 38 | RING SPRING 28 | |
| 39 | STRIKER | |
| 40 | O RING 16 | |
| 41 | PISTON CYLINDER | |
| 42 | GUIDE PLATE | |
| 43 | PISTON JOINT | |
| 44 | COMPRESSION SPRING 14 | |
| 45 | BALL BEARING 606ZZ | |
| 46 | RETAINING RING S-7 | |
| 47 | COMPRESSION SPRING 7 | |
| 48 | SPUR GEAR 10 | |
| 49 | CAM SHAFT | |
| 50 | CLUTCH CAM | |
| 51 | SWASH BEARING 10 | |
| 52 | SLEEVE 9 | |
| 53 | SPIRAL BEVEL GEAR 26 | |
| 54 | HEX. SOCKET HEAD BOLT M4X12 | |
| 55 | BEARING RETAINER B | |
| 56 | BALL BEARING 608ZZ | |
| 57 | RING 8 | |
| 58 | STOP RING E-4 | |
| 59 | FLAT WASHER 5 | |
| 60 | COMPRESSION SPRING 6 | |
| 61 | CHANGE PLATE | |
| 62 | HEX. SOCKET HEAD BOLT M4X25 | |
| 63 | INNER SUPPORT COMPLETE | |
| 64 | O-RING 68 | |
| 65 | INNER HOUSING | |
| 66 | FILTER | |
| 67 | CAP | |
| 68 | COMPRESSION SPRING 10 | |
| 69 | HEX. SOCKET HEAD BOLT M4X12 | |
| 70 | OIL SEAL 15 | |
| 71 | O RING 28 | |
| 72 | YOKE UNIT | |
| 73 | RETAINING RING WR12 | |
| 74 | SLEEVE 12 | |
| 75 | BALL BEARING 6001DDW | |
| 76 | STOP RING E-10 | |
| 77 | BEARING RETAINER A | |
| 78 | ARMATURE ASS\\\'Y 36V | |
| 79 | FAN 44 | |
| 80 | BALL BEARING 626DDW | |
| 81 | LIGHT CIRCUIT | |
| 82 | BRUSH HOLDER | |
| 83 | HOLDER CAP | |
| 84 | CARBON BRUSH CB-442 | |
| 85 | TAPPING SCREW 4X18 | |
| 86 | BRUSH HOLDER | |
| 87 | TERMINAL | |
| 88 | CONTROLLER | |
| 89 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| C20 | RUBBER PIN 4 | |
| C30 | PLATE | |
| C40 | INDICATION LABEL | |
| D10 | INC. 99 | |
| 90 | HANDLE SET | |
| D10 | INC. 95 | |
| 92 | SWITCH | |
| 93 | F/R CHANGE LEVER | |
| 94 | PIN 6 | |
| 95 | HANDLE SET | |
| D10 | INC. 90 | |
| 96 | TAPPING SCREW 4X18 | |
| 97 | DHR263 SERIAL NO. LABEL | |
| 99 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| C20 | RUBBER PIN 4 | |
| C30 | PLATE | |
| C40 | INDICATION LABEL | |
| D10 | INC. 89 | |
| 100 | DHR263 NAME PLATE | |
| 101 | TAPPING SCREW 4X18 | |
| 102 | CLEAR LABEL | |
| 103 | CLEAR LABEL | |
| 108 | LINE FILTER | |
| 109 | LINE FILTER | |
| A01 | GREASE VESSEL SET | |
| A02 | DEPTH GAUGE | |
| A03 | CLOTH | |
| A04 | CONNECTOR P.CASE(TYPE4) COMP. | |
| C10 | LATCH | |
| A05 | DHR263ZJ INDICATION LABEL | |
| A06 | DHR263ZJ PLASTIC CASE LABEL | |
| A07 | INNER TRAY |
