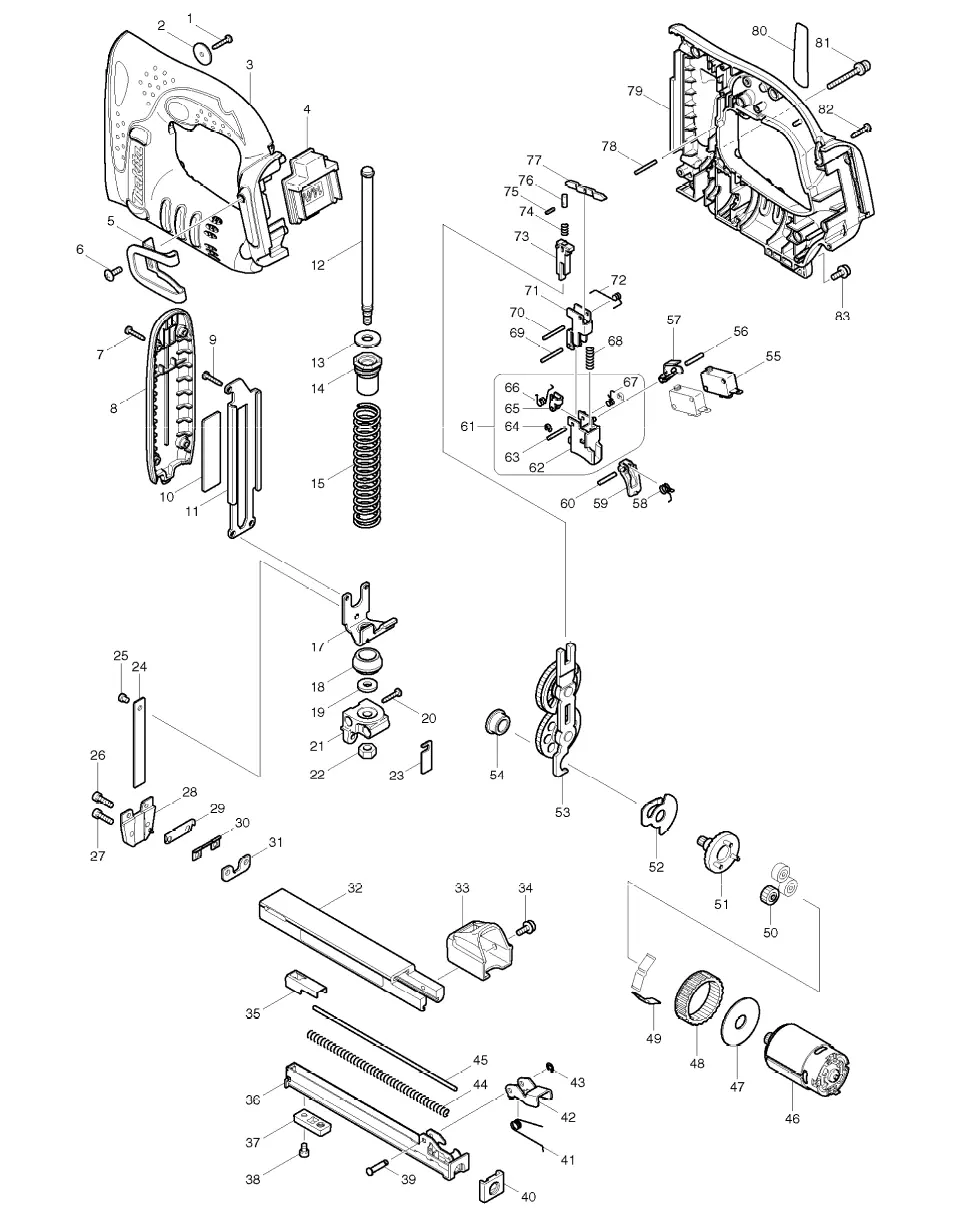

BST 110
BST 110
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
TAPPING SCREW BIND PT 3X16 |
| 2 |  |
FLAT WASHER 4 |
| 3 |  |
HOUSING SET INC. 79 |
| 4 |  |
TERMINAL |
| 5 |  |
HOOK |
| 6 |  |
SCREW M4X12 |
| 7 |  |
TAPPING SCREW BIND PT 3X16 |
| 8 |  |
FRONT COVER |
| 9 |  |
TAPPING SCREW BIND PT 3X16 |
| 10 |  |
UPPER PLATE |
| 11 |  |
RAIL |
| 12 |  |
GUIDE BOLT |
| 13 |  |
FLAT WASHER 8 |
| 14 |  |
SPRING HOLDER |
| 15 |  |
COMPRESSION SPRING 16 |
| 17 |  |
HAMMER |
| 18 |  |
CUSHION |
| 19 |  |
FLAT WASHER 6 |
| 20 |  |
TAPPING SCREW BIND PT 3X16 |
| 21 |  |
HOLDER |
| 22 |  |
HEX. NUT M6 |
| 23 |  |
TRIGGER PLATE |
| 24 |  |
DRIVER |
| 25 |  |
PIN 4 |
| 26 |  |
HEX.SOCKET HEAD BOLT M4X14 |
| 27 |  |
HEX.SOCKET HEAD BOLT M4X14 |
| 28 |  |
DRIVER GUIDE COMPLETE |
| 29 |  |
SPACER |
| 30 |  |
SPACER PLATE |
| 31 |  |
SET PLATE |
| 32 |  |
MAIN MAGAZINE COMPLETE |
| 33 |  |
END CAP |
| 34 |  |
PAN HEAD SCREW M4X10 |
| 35 |  |
PUSHER |
| 36 |  |
SUB MAGAZINE |
| 37 |  |
FOOT |
| 38 |  |
PAN HEAD SCREW M4X4 |
| 39 |  |
PIN 4 |
| 40 |  |
MAGAZINE END |
| 41 |  |
TORSION SPRING 5 |
| 42 |  |
LEVER |
| 43 |  |
STOP RING E-3 |
| 44 |  |
COMPRESSION SPRING 5 |
| 45 |  |
ROD |
| 46 |  |
DC MOTOR |
| 47 |  |
FLAT WASHER 12 |
| 48 |  |
INTERNAL GEAR 69 |
| 49 |  |
LEAF SPRING |
| 50 |  |
SPUR GEAR 27 |
| 51 |  |
SPUR GEAR 7 COMPLETE |
| 52 |  |
ANTI BACK PLATE |
| 53 |  |
SPUR GEAR 55 COMPLETE |
| 54 |  |
PLANE BEARING 10 |
| 55 |  |
SWITCH V-15-3A6 |
| 56 |  |
PIN 3 |
| 57 |  |
LINK PLATE |
| 58 |  |
TORSION SPRING 4 |
| 59 |  |
SAFETY TRIGGER |
| 60 |  |
PIN 3 |
| 61 |  |
TRIGGER SET INC. 62-67 |
| 62 |  |
TRIGGER |
| 63 |  |
PIN 2.5 |
| 64 |  |
STOP RING E-2.0 |
| 65 |  |
SWING ARM |
| 66 |  |
TORSION SPRING 3 |
| 67 |  |
TORSION SPRING 3 |
| 68 |  |
COMPRESSION SPRING 5 |
| 69 |  |
PIN 2.5 |
| 70 |  |
PIN 2.5 |
| 71 |  |
GUIDE PLATE |
| 72 | TORSION SPRING 4 | |
| 73 | CAM BLOCK | |
| 74 | COMPRESSION SPRING 2.4 | |
| 75 | SPRING PIN 2-8 | |
| 76 | PUSH PIN | |
| 77 | SWITCH ARM | |
| 78 | PIN 2.5 | |
| 79 | HOUSING SET INC. 3 | |
| 80 | BST110 NAME PLATE | |
| 81 | PAN HEAD SCREW M4X35 | |
| 82 | TAPPING SCREW BIND PT 3X16 | |
| 83 | PAN HEAD SCREW M4X10 | |
| A01 | SAFETY GOGGLE | |
| A02 | PLASTIC CARRYING CASE COMPLETE | |
| A03 | BST110RFE PLASTIC CASE LABEL | |
| A04 | BATTERY BL1430 SET | |
| A05 | DC18RC FAST CHARGER | |
| A06 | BATTERY COVER | |
| A07 | BST110RFJ INDICATION LABEL | |
| A08 | BST110RFJ PLASTIC CASE LABEL |
