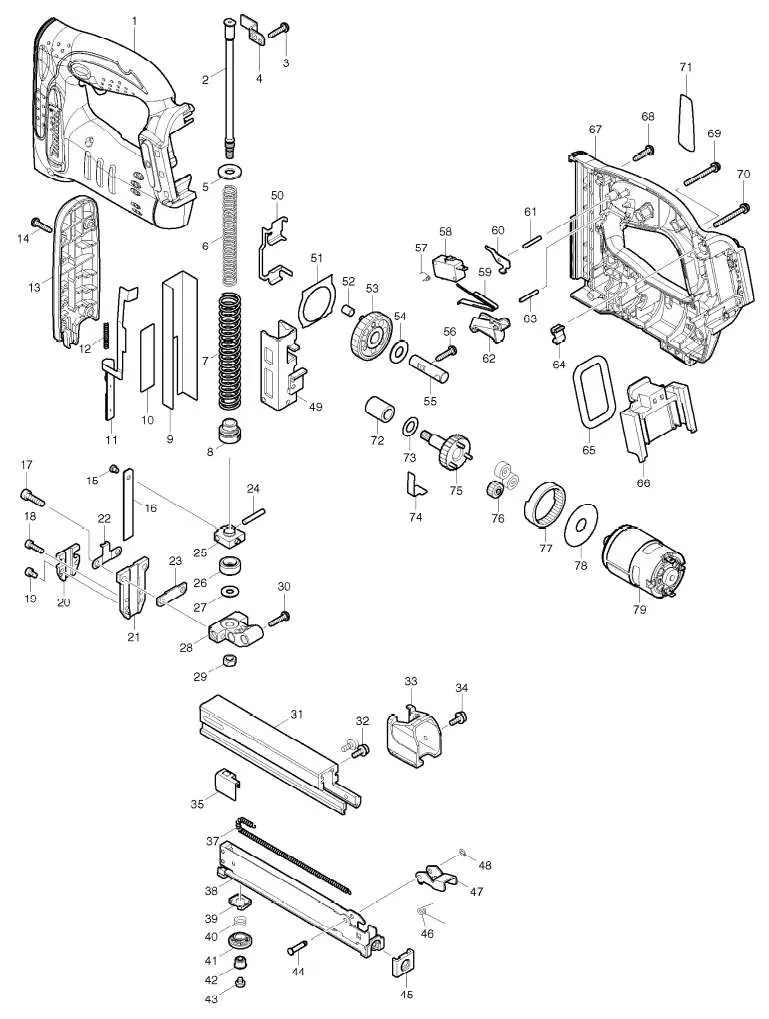

BST 221
BST 221
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 67 | |
| 2 | GUIDE BOLT | |
| 3 | TAPPING SCREW 4X18 | |
| 4 | FIX PLATE | |
| 5 | FLAT WASHER 8 | |
| 6 | COMPRESSION SPRING 9 | |
| 7 | COMPRESSION SPRING 13 | |
| 8 | SPRING HOLDER | |
| 9 | GUIDE PLATE | |
| 10 | UPPER PLATE | |
| 11 | SAFETY LEVER | |
| 12 | COMPRESSION SPRING 4 | |
| 13 | FRONT COVER | |
| 14 | TAPPING SCREW 4X18 | |
| 15 | PIN 4 | |
| 16 | DRIVER | |
| 17 | HEX. SOCKET HEAD BOLT M5X18 | |
| 18 | HEX.SOCKET HEAD BOLT M4X14 | |
| 19 | HEX.SOCKET HEAD BOLT M4X6 | |
| 20 | SAEFTY LEVER GUIDE | |
| 21 | DRIVER GUIDE COMPLETE | |
| 22 | SPRING BASE | |
| 23 | SET PLATE | |
| 24 | PIN 4 | |
| 25 | DRIVER LOCK | |
| 26 | CUSHION | |
| 27 | FLAT WASHER 6 | |
| 28 | HOLDER | |
| 29 | HEX. NUT M6 | |
| 30 | TAPPING SCREW 4X18 | |
| 31 | MAIN MAGAZINE | |
| 32 | PAN HEAD SCREW M4X10 | |
| 33 | END CAP | |
| 34 | PAN HEAD SCREW M4X10 | |
| 35 | PUSHER | |
| 37 | TENSION SPRING 3 | |
| 38 | SUB MAGAZINE | |
| 39 | ADJUSTER BASE | |
| 40 | COMPRESSION SPRING 9 | |
| 41 | ADJUSTER | |
| 42 | LOCK SLEEVE | |
| 43 | PAN HEAD SCREW M4X4 | |
| 44 | PIN 4 | |
| 45 | MAGAZINE END | |
| 46 | TORSION SPRING 5 | |
| 47 | LEVER | |
| 48 | STOP RING E-3 | |
| 49 | HAMMER | |
| 50 | SLIDE PLATE | |
| 51 | PLATE | |
| 52 | SLEEVE 5 | |
| 53 | SPUR GEAR 55 COMPLETE | |
| 54 | FLAT WASHER 10 | |
| 55 | PIN 10 | |
| 56 | TAPPING SCREW 4X18 | |
| 57 | TORSION SPRING 3 | |
| 58 | SWITCH V-15-3A6 | |
| 59 | LEAF SPRING | |
| 60 | RELEASE PLATE | |
| 61 | PIN 3 | |
| 62 | TRIGGER | |
| 63 | PIN 3 | |
| 64 | CUSHION | |
| 65 | CUSHION | |
| 66 | TERMINAL | |
| 67 | HOUSING SET INC. 1 | |
| 68 | TAPPING SCREW 4X18 | |
| 69 | PAN HEAD SCREW M4X35 | |
| 70 | PAN HEAD SCREW M4X35 | |
| 71 | BST221 NAME PLATE | |
| 72 | PLANE BEARING 10 | |
| 73 | FLAT WASHER 10 | |
| 74 | LEAF SPRING | |
| 75 | SPUR GEAR 7 COMPLETE | |
| 76 | SPUR GEAR 27 | |
| 77 | INTERNAL GEAR 69 | |
| 78 | FLAT WASHER 12 | |
| 79 | DC MOTOR | |
| A01 | SAFETY GOGGLE | |
| A02 | SCREW M4X12 | |
| A03 | HOOK | |
| A04 | PLASTIC CARRYING CASE | |
| A05 | BST221RFE PLASTIC CASE LABEL | |
| A06 | BATTERY BL1830 SET | |
| A07 | BATTERY COVER | |
| A08 | DC18RA FAST CHARGER |
