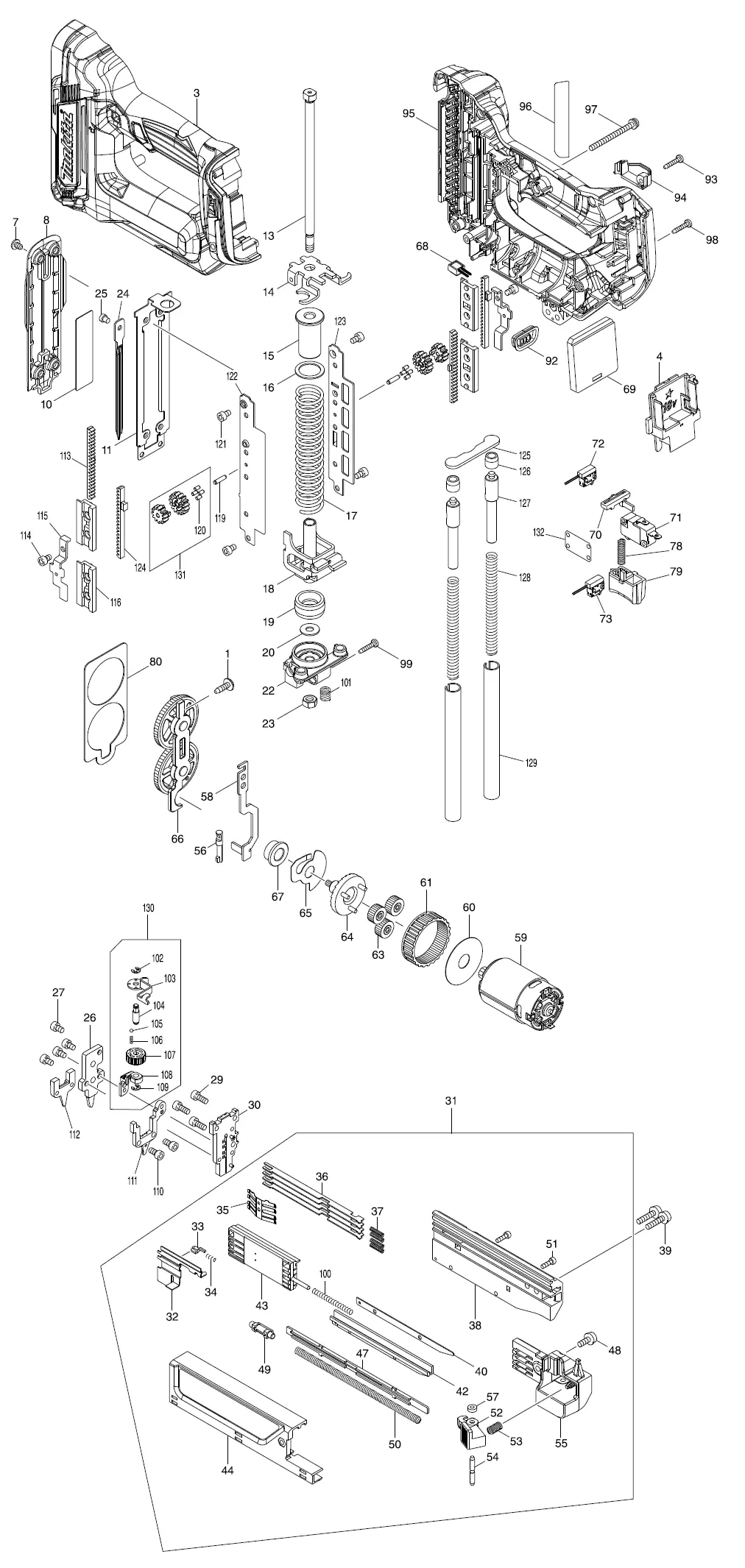

DPT 353
DPT 353
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
TAPPING SCREW 4X14 |
| 3 |  |
HOUSING SET |
| C10 |  |
Резиновая шпилька 6 |
| C20 |  |
Шестигр.стопорная гайка М4-7 |
| C30 |  |
Шестигранная гайка M4 к ML122/ |
| D10 |  |
INC. 95 |
| 4 |  |
Контактный разъем |
| 7 |  |
BINDING HEAD SCREW M4X6 |
| 8 |  |
FRONT COVER |
| 10 |  |
UPPER PLATE |
| 11 |  |
RAIL |
| 13 |  |
GUIDE BOLT |
| 14 |  |
BOTTOM PLATE |
| 15 |  |
SPRING HOLDER |
| 16 |  |
SPRING BASE |
| 17 |  |
COMPRESSION SPRING 17 |
| 18 |  |
HAMMER |
| 19 |  |
CUSHION |
| 20 |  |
Плоская шайба 6 |
| 22 |  |
HOLDER |
| 23 |  |
Шестигранная гайка M6 HR2400/ |
| 24 |  |
DRIVER |
| 25 |  |
Шпилька 4 |
| 26 |  |
DRIVER GUIDE COVER COMPLETE |
| 27 |  |
Болт с внутр.шестигран. M4Х6 |
| 29 |  |
Болт с внутр.шестигран. М4Х10 |
| 30 |  |
DRIVER GUIDE COMPLETE |
| 31 |  |
MAGAZINE ASSY |
| D10 |  |
INC. 32-38,40,42-44,47-55,57, |
| D20 |  |
INC. 100 |
| 031-1 |  |
MAGAZINE ASSY |
| D10 |  |
INC. 32-38,40,42-44,47-55,57, |
| D20 |  |
INC. 100 |
| 32 |  |
PUSHER |
| 33 |  |
STOPPER |
| 033-1 |  |
STOPPER |
| 34 |  |
Компрессионная пружина 3 |
| 35 |  |
LEAF SPRING |
| 36 | NAIL STOPPER | |
| 37 | COMPRESSION SPRING 3 | |
| 38 | MAGAZINE | |
| 038-1 |  |
MAGAZINE |
| 39 |  |
Винт M4X18 к 1911B |
| 40 |  |
SPACER |
| 42 |  |
LOWER RAIL COMPLETE |
| 43 |  |
NAIL GUIDE HOLDER |
| 44 |  |
UPPER RAIL |
| C10 |  |
Шестигранная гайка M4 к ML122/ |
| 47 |  |
SPRING COVER |
| 48 |  |
Винт M4X10 для LS1013/1911B/ |
| 49 |  |
SHOULDER PIN 5-6 |
| 50 |  |
COMPRESSION SPRING 5 |
| 51 |  |
Болт M3X10 с внутр.шестигранн. |
| 52 |  |
LEVER |
| 53 |  |
Компрессионная пружина 6 |
| 54 |  |
PIN 3 |
| 55 |  |
SLIDE DOOR CAP |
| 56 |  |
PIN 5 |
| 57 |  |
Уретановое кольцо 3 |
| 58 |  |
LOCK ARM |
| 59 |  |
DC MOTOR |
| 60 |  |
Плоская шайба 12 |
| 61 |  |
INTERNAL GEAR 69 |
| 63 |  |
Прямозубая шестерня 27 |
| 64 |  |
SPUR GEAR 7 COMPLETE |
| 65 |  |
ANTI BACK PLATE |
| 66 |  |
SPUR GEAR 55 COMPLETE |
| 67 |  |
Подшипник скольжения 10 |
| 68 |  |
LED CIRCUIT |
| 69 |  |
CONTROLLER UNIT |
| C10 |  |
Фильтр MT081 |
| 70 |  |
TRIGGER LOCK |
| 71 |  |
SWITCH UNIT |
| 72 |  |
SWITCH UNIT |
| 73 |  |
SWITCH UNIT |
| 78 |  |
COMPRESSION SPRING 5 |
| 79 |  |
TRIGGER |
| 80 |  |
GEAR PLATE |
| 92 |  |
INDICATOR PANEL COMPLETE |
| 93 |  |
Самонарез.винт зажимной PT3X16 |
| 94 |  |
HOUSING R COVER |
| 95 |  |
HOUSING SET |
| C10 |  |
Резиновая шпилька 6 |
| C20 |  |
Шестигр.стопорная гайка М4-7 |
| C30 |  |
Шестигранная гайка M4 к ML122/ |
| D10 |  |
INC. 3 |
| 96 |  |
DPT353 NAME PLATE |
| 97 |  |
Винт M4X45 для 6822 |
| 98 |  |
Самонарез.винт зажимной PT3X16 |
| 99 |  |
Самонарез.винт зажимной PT3X16 |
| 100 |  |
Компрессионная пружина 3 |
| 101 |  |
COMPRESSION SPRING 7 |
| 102 | Стопорное кольцо E-3 к HR2450/ | |
| 103 | CONTACT ARM | |
| 104 | ADJUSTER SHAFT | |
| 105 | STEEL BALL 2.3 | |
| 106 | COMPRESSION SPRING 2 | |
| 107 | ADJUSTER | |
| 108 | ARM | |
| 109 | Стопорное кольцо E-3 к HR2450/ | |
| 110 | Болт с внутр.шестигран.М4Х8 | |
| 111 | CENTER PLATE COMPLETE | |
| 112 | CONTACT TOP COVER | |
| 113 | COUNTER WEIGHT A | |
| 114 | H.S.H BOLT M4X6 WITH W | |
| 115 | PINION GUIDE | |
| 116 | COUNTER WEIGHT HOLDER | |
| 119 | PINION SHAFT | |
| 120 | DUMPER RUBBER | |
| 121 | Болт с внутр.шестигран. M4Х6 | |
| 122 | GUIDE RAIL R | |
| 123 | GUIDE RAIL L | |
| 124 | COUNTER WEIGHT B | |
| 125 | COUNTER STOPPER | |
| 126 | COUNTER CUSHION | |
| 127 | WEIGHT | |
| 128 | COMPRESSION SPRING 7 | |
| 129 | GUIDE PIPE | |
| 130 | CONTACT ARM ASSY | |
| D10 | INC. 102-109 | |
| 131 | SPUR GEAR ASSEMBLY | |
| D10 |  |
INC. 120 |
| 132 |  |
SWITCH GUARD |
| A01 |  |
Защитные очки |
| A02 |  |
Винт (+) M4X12 |
| A03 |  |
Держатель ножа |
| A04 |  |
NOSE ADAPTER |
| A05 |  |
Ключ шестигранника 3 мм. |
| A06B |  |
PLASTIC CARRYING CASE |
| C10 |  |
INNER TRAY |
| C20 |  |
Упорный штифт для BHP456 |
| A07B |  |
DPT353RFE PLASTIC CASE LABEL |
| A08B |  |
DC18RC FAST CHARGER |
| D10 |  |
COMPO-PARTS |
| A09B |  |
BATTERY BL1830B SET |
| A10B |  |
Крышка аккумулятора для BTM40 |
