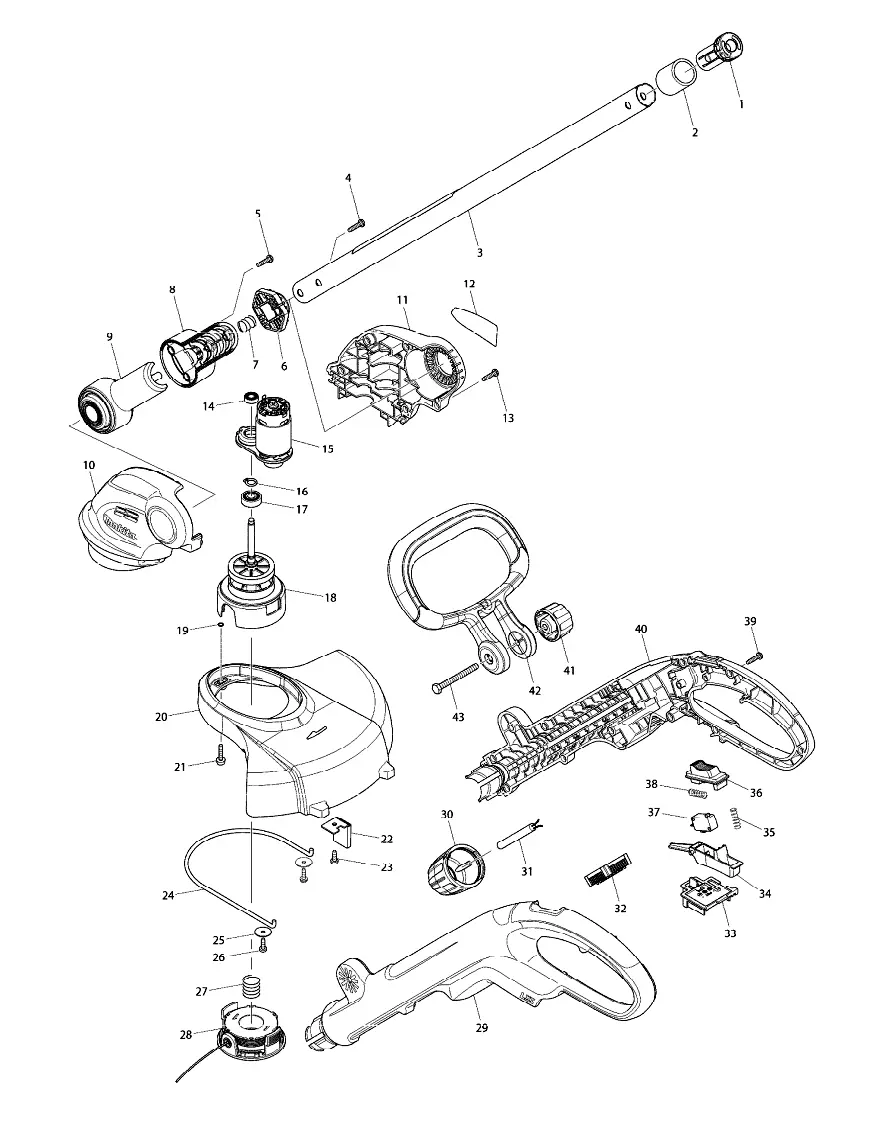

BUR141
| П-п | Арт | Название |
|---|---|---|
| 1 | PIPE CAP | |
| 2 | RUBBER SLEEVE 25 | |
| 3 | PIPE25 COMPLETE | |
| 4 | TAPPING SCREW 4X18 | |
| 5 | TAPPING SCREW 4X18 | |
| 6 | LOCK OFF BUTTON B | |
| 7 | COMPRESSION SPRING 12 | |
| 8 | PIPE HOLDER SET INC. 9 | |
| 9 |  |
PIPE HOLDER SET INC. 8 |
| 10 |  |
MOTOR HOUSING SET INC. 11 |
| 11 |  |
MOTOR HOUSING SET INC. 10 |
| 12 |  |
BUR141 NAME PLATE |
| 13 |  |
TAPPING SCREW 4X18 |
| 14 |  |
BALL BEARING 696ZZ |
| 15 |  |
DC MOTOR |
| 16 |  |
RETAINING RING S-8 |
| 17 |  |
BALL BEARING 608ZZ |
| 18 |  |
GEAR SHAFT COMPLETE |
| 19 |  |
O RING 4 |
| 20 |  |
SAFETY COVER |
| 21 |  |
PAN HEAD SCREW M4X20 WG |
| 22 |  |
CORD CUTTER ASSEMBLY |
| 23 |  |
TAPPING SCREW 4X12 |
| 24 |  |
WIRE GUARD |
| 25 |  |
FLAT WASHER 4 |
| 26 |  |
TAPPING SCREW 4X12 |
| 27 |  |
COMPRESSION SPRING 17 |
| 28 |  |
SPOOL SET |
| 29 |  |
HANDLE SET INC. 40 |
| 30 |  |
LOCK SLEEVE |
| 31 |  |
POWER SUPPLY CORD UNIT |
| 32 |  |
CONTROLLER |
| 33 |  |
TERMINAL |
| 34 |  |
SWITCH LEVER |
| 35 |  |
COMPRESSION SPRING 6 |
| 36 |  |
LOCK OFF LEVER |
| 37 |  |
SWITCH V-15-3A6 |
| 38 |  |
COMPRESSION SPRING 6 |
| 39 |  |
TAPPING SCREW 4X18 |
| 40 |  |
HANDLE SET INC. 29 |
| 41 |  |
THUMB NUT M6 |
| 42 |  |
FRONT GRIP |
| 43 |  |
HEX. BOLT M6X60 |
| A01 |  |
BAND ASSEMBLY |
| A02 |  |
SAFETY GOGGLE |
| A03 |  |
NYLON CORD 1.65-15M SET |
