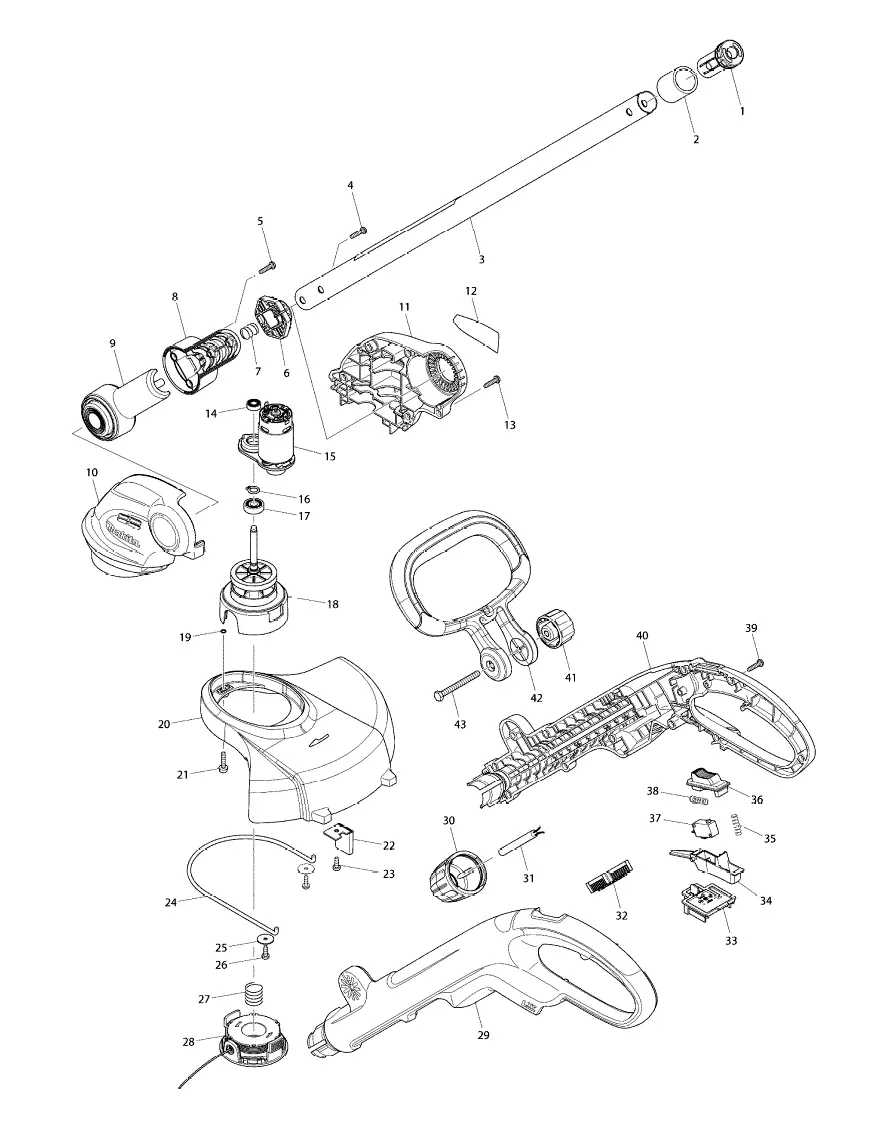

BUR181Z
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
PIPE CAP |
| 2 |  |
RUBBER SLEEVE 25 |
| 3 |  |
PIPE25 COMPLETE |
| 4 |  |
TAPPING SCREW 4X18 |
| 5 |  |
TAPPING SCREW 4X18 |
| 6 |  |
LOCK OFF BUTTON B |
| 7 |  |
COMPRESSION SPRING 12 |
| 8 |  |
PIPE HOLDER SET INC. 9 |
| 9 |  |
PIPE HOLDER SET INC. 8 |
| 10 |  |
MOTOR HOUSING SET INC. 11 |
| 11 |  |
MOTOR HOUSING SET INC. 10 |
| 12 |  |
BUR181 NAME PLATE |
| 13 |  |
TAPPING SCREW 4X18 |
| 14 | BALL BEARING 696ZZ | |
| 15 | DC MOTOR | |
| 16 | RETAINING RING S-8 | |
| 17 | BALL BEARING 608ZZ | |
| 18 | GEAR SHAFT COMPLETE | |
| 19 | O RING 4 | |
| 20 | SAFETY COVER | |
| 21 | PAN HEAD SCREW M4X20 WG | |
| 22 | CORD CUTTER ASSEMBLY | |
| 23 | TAPPING SCREW 4X12 | |
| 24 | WIRE GUARD | |
| 25 | FLAT WASHER 4 | |
| 26 | TAPPING SCREW 4X12 | |
| 27 | COMPRESSION SPRING 17 | |
| 28 | SPOOL SET | |
| 29 | HANDLE SET INC. 40 | |
| 30 | LOCK SLEEVE | |
| 31 | POWER SUPPLY CORD UNIT | |
| 32 | CONTROLLER | |
| 33 | TERMINAL | |
| 34 | SWITCH LEVER | |
| 35 | COMPRESSION SPRING 6 | |
| 36 | LOCK OFF LEVER | |
| 37 | SWITCH V-15-3A6 | |
| 38 | COMPRESSION SPRING 6 | |
| 39 | TAPPING SCREW 4X18 | |
| 40 | HANDLE SET INC. 29 | |
| 41 | THUMB NUT M6 | |
| 42 | FRONT GRIP | |
| 43 | HEX. BOLT M6X60 | |
| A01 | BAND ASSEMBLY | |
| A02 | SAFETY GOGGLE | |
| A03 | NYLON CORD 1.65-15M SET |
