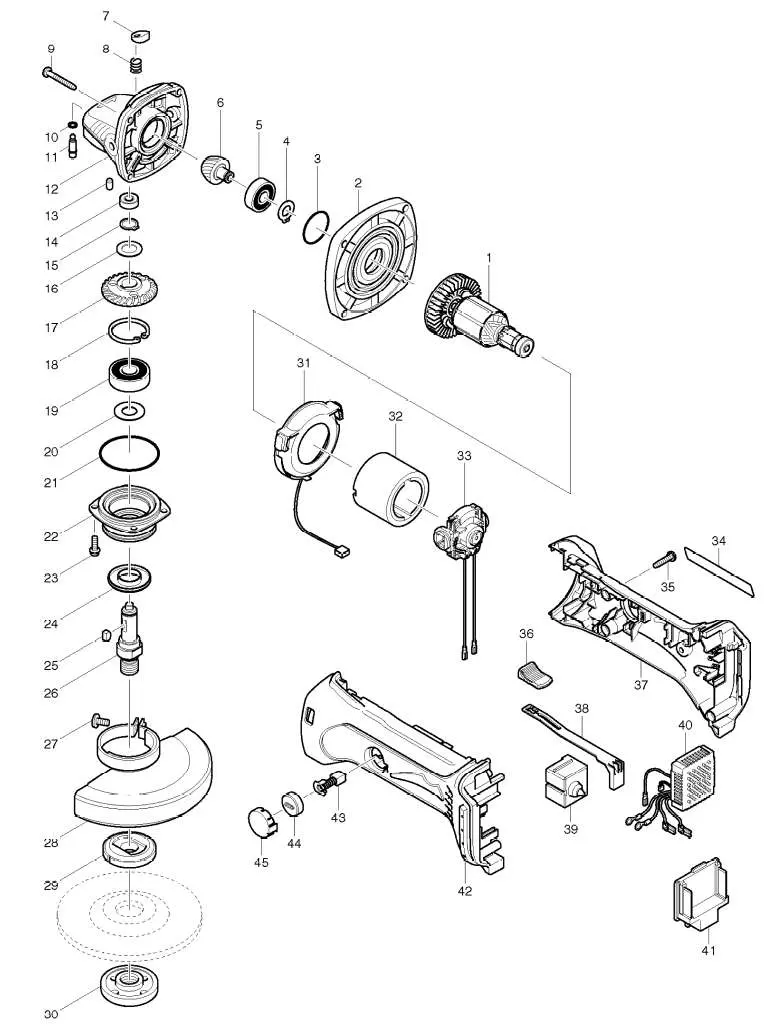

BGA 450
BGA 450
| П-п | Арт | Название |
|---|---|---|
| 1 | ARMATURE | |
| 2 | GEAR HOUSING COVER | |
| 3 | O-RING 26 | |
| 4 | RETAINING RING S-9 | |
| 5 | BALL BEARING 629LLB | |
| 6 | SPIRAL BEVEL GEAR 19 | |
| 7 | PIN CAP | |
| 8 | COMPRESSION SPRING 8 | |
| 9 | TAPPING SCREW 4X30 | |
| 10 | O RING 5 | |
| 11 | SHOULDER PIN 4 | |
| 12 | GEAR HOUSING | |
| 13 | RUBBER PIN 4 | |
| 14 | BALL BEARING 696ZZ | |
| 15 | RETAINING RING S-12 | |
| 16 | FLAT WASHER 12 | |
| 17 | SPIRAL BEVEL GEAR 39 | |
| 18 | RETAINING RING R-32 | |
| 19 | BALL BEARING 6201DDW | |
| 20 | FLAT WASHER 12 | |
| 21 | O RING 45 | |
| 22 | BEARING BOX | |
| 23 | PAN HEAD SCREW M4X14 | |
| 24 | LABYRINTH RING | |
| 25 | WOODRUFF KEY 4 | |
| 26 | SPINDLE | |
| 27 | PAN HEAD SCREW M5X16 | |
| 28 | WHEEL COVER 115K ASSEMBLY INC. 27 | |
| 29 | INNER FLANGE 42 | |
| 30 | LOCK NUT 14-45 | |
| 31 | LED CIRCUIT | |
| 32 | YOKE UNIT | |
| 33 | ENDBELL COMPLETE | |
| 34 | BGA450 NAME PLATE | |
| 35 | TAPPING SCREW 4X18 | |
| 36 | SWITCH KNOB | |
| 37 | HOUSING SET INC. 42 | |
| 38 | SWITCH LEVER | |
| 39 | SWITCH 1246.3223 | |
| 40 |  |
CONTROLLER |
| 41 |  |
TERMINAL |
| 42 |  |
HOUSING SET INC. 37 |
| 43 |  |
CARBON BRUSH CB-430 |
| 44 |  |
BRUSH HOLDER CAP |
| 45 |  |
HOLDER CAP COVER |
| A01 |  |
GRIP 36 COMPLETE |
| A02 |  |
LOCK NUT WRENCH 35 |
| A03 |  |
DC18RA FAST CHARGER |
| A04 |  |
BATTERY BL1430 SET |
| A05 |  |
PLASTIC CARRYING CASE |
| A06 |  |
BGA450RFE CARTON LABEL |
| A07 |  |
BATTERY COVER |
| E01 |  |
SAFETY INSTRUCTION LABEL |
