DGA 504
DGA 504

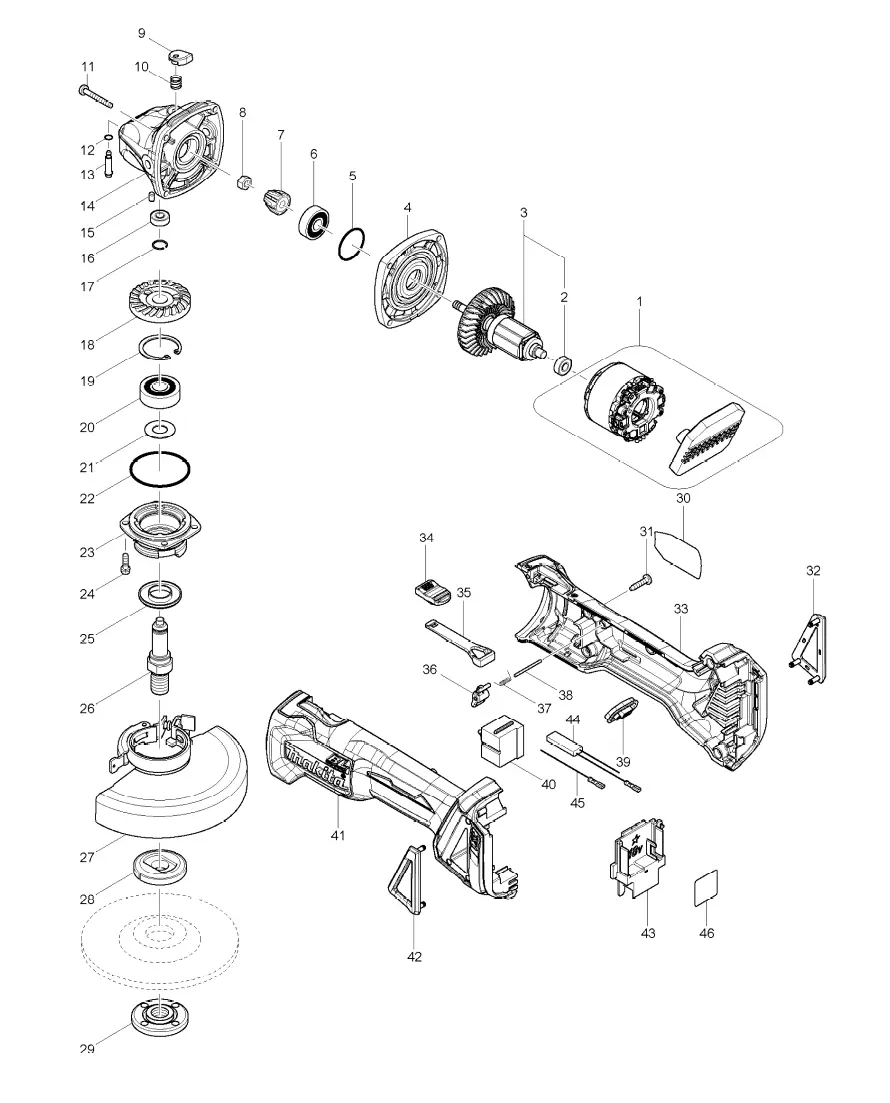

| П-п | Арт | Название |
|---|---|---|
| 1 | STATOR COMPLETE | |
| 2 | BALL BEARING 607LLB | |
| 3 | ROTOR ASS\\\'Y INC. 2 | |
| 4 | GEAR HOUSING COVER | |
| 5 | O-RING 26 | |
| 6 | BALL BEARING 629LLB | |
| 7 | SPIRAL BEVEL GEAR 10 | |
| 8 | HEX. NUT M6 | |
| 9 | PIN CAP | |
| 10 | COMPRESSION SPRING 8 | |
| 11 | TAPPING SCREW 4X30 | |
| 12 | O RING 5 | |
| 13 | SHOULDER PIN 4 | |
| 14 | GEAR HOUSING | |
| 15 | RUBBER PIN 4 | |
| 16 | BALL BEARING 696ZZ | |
| 17 | RING SPRING 11 | |
| 18 | SPIRAL BEVEL GEAR 37 | |
| 19 | RETAINING RING R-32 | |
| 20 | BALL BEARING 6201DDW | |
| 21 | FLAT WASHER 12 | |
| 22 | O RING 45 | |
| 23 | BEARING BOX | |
| 24 | PAN HEAD SCREW M4X14 | |
| 25 | LABYRINTH RING | |
| 26 | SPINDLE | |
| 27 | TOOLLESS WHEELCOVER 125AK ASSY | |
| 28 | INNER FLANGE 42 | |
| 29 | LOCK NUT 14-45 | |
| 30 | DGA504 NAME PLATE | |
| 31 | TAPPING SCREW 4X18 | |
| 32 | DUST COVER R | |
| 33 | MOTOR H0USING SET INC. 41 | |
| 34 | SWITCH KNOB | |
| 35 | SWITCH LEVER | |
| 36 | LEVER | |
| 37 | TORSION SPRING 2 | |
| 38 | PIN 2 | |
| 39 | INDICATOR PANEL COMPLETE | |
| 40 | SWITCH 1246.3223 | |
| 41 | MOTOR H0USING SET INC. 33 | |
| 42 | DUST COVER L | |
| 43 | TERMINAL | |
| 44 | RESISTOR UNIT | |
| 45 | LEAD UNIT | |
| 46 | DGA504 SERIAL NO. LABEL | |
| A01 | GRINDING WHEEL 125 WA36N | |
| A02 | GRIP 36 COMPLETE | |
| A03 | LOCK NUT WRENCH 35 | |
| A04 | DC18RC FAST CHARGER | |
| A05 | BATTERY BL1830 SET | |
| A06 | BATTERY COVER | |
| A07 | PLASTIC CASE |
