DGA 506
DGA 506

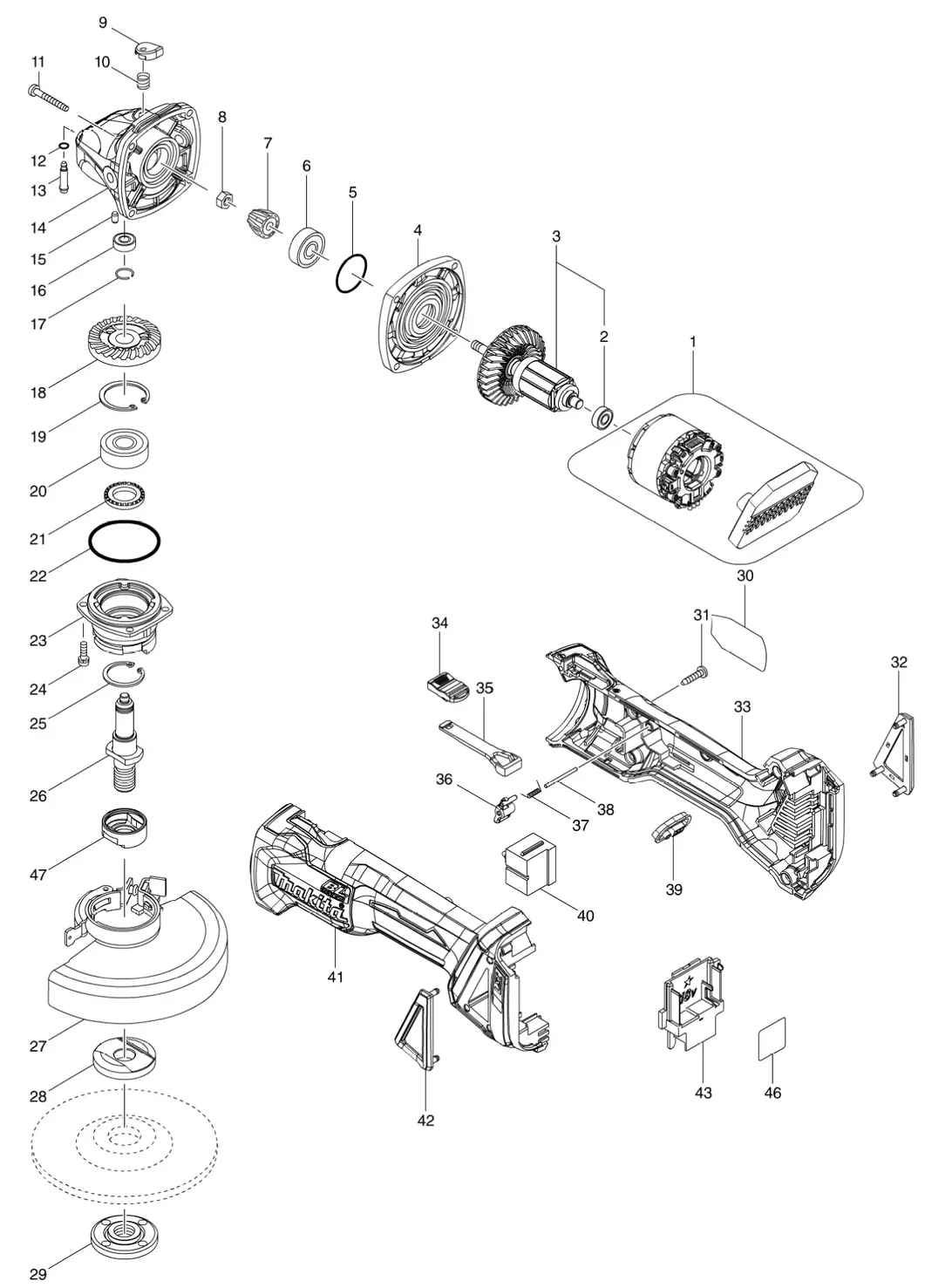

| П-п | Арт | Название |
|---|---|---|
| 001 | STATOR COMPLETE | |
| 002 | BALL BEARING 607LLB | |
| 003 | ROTOR ASS\\\'Y | |
| 010 | INC. 2 | |
| 004 | GEAR HOUSING COVER | |
| 005 | 0-RING 26 | |
| 006 | BALL BEARING 629LLB | |
| 007 | SPIRAL BEVEL GEAR 10 | |
| 008 | HEX. NUT M6 | |
| 009 | PIN CAP | |
| 010 | COMPRESSION SPRING 8 | |
| 011 | TAPPING SCREW 4X30 | |
| 012 | 0 RING 5 | |
| 013 | SHOULDER PIN 4 | |
| 014 | GEAR HOUSING | |
| 015 | RUBBER PIN 4 | |
| 016 | BALL BEARING 696ZZ | |
| 017 | RING SPRING 11 | |
| 018 | SPIRAL BEVEL GEAR 37 | |
| 019 | RETA INING RING R-32 | |
| 020 | BALL BEARING 6201DOW | |
| 021 | FELT RING 16 | |
| 022 | O RING 45 | |
| 023 | BEARING BOX | |
| 024 | PAN HEAD SCREW M4X14 | |
| 025 | RETA INING RING R-26 | |
| 026 | SPINDLE | |
| 027 | TOOLLESS WHEELCOVER 125AK ASS\\\'\\\\\' | |
| C10 | 0 RING 4 | |
| C20 | PAN HEAD SCREW M5X16 | |
| 028 | INNER FLANGE 42B | |
| 029 | LOCK NUT 14-45 | |
| 030 | DGA506 NAME PLATE | |
| 031 | TAPPING SCREW 4X18 | |
| 032 | DUST COVER R | |
| 033 | MOTOR HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| 010 | INC. 41 | |
| 034 | SWITCH KNOB | |
| 035 | SWITCH LEVER | |
| 036 | LEVER | |
| 037 | TORS ION SPRING 2 | |
| 038 | PIN 2 | |
| 039 | INDICATOR PANEL COMPLETE | |
| 040 | SWITCH 1246.3223 | |
| 041 | MOTOR HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| D10 | INC. 33 | |
| 042 | DUST COVER L | |
| 043 | TERMINAL | |
| 046 | DGA506 SERIAL NO. LABEL | |
| 047 | LEAD FLANGE | |
| A01 | GRINDING WHEEL 125 WA36N | |
| A02 | GRIP 36 COMPLETE | |
| A03 | LOCK NUT WRENCH 35 | |
| A04B | DC18RC FAST CHARGER | |
| D10 | COMPO-PARTS | |
| A04C | DC18RC FAST CHARGER | |
| D10 | COMPO-PARTS | |
| A040 | DC18RC FAST CHARGER | |
| D10 | COMPO-PARTS | |
| AOSB | BATIERY BL1830 SET | |
| AOSC | BATIERY BL1840B SET | |
| A050 | BATIERY BL1850B SET | |
| A05-1B | BATIERY BL1830B SET | |
| A06B | BATIERY COVER | |
| A06C | BATIERY COVER | |
| A060 | BATIERY COVER | |
| A07B | PLASTIC CASE | |
| C10 | LATCH | |
| A07C | PLASTIC CASE | |
| C10 | LATCH | |
| A070 | PLASTIC CASE | |
| C10 | LATCH |
