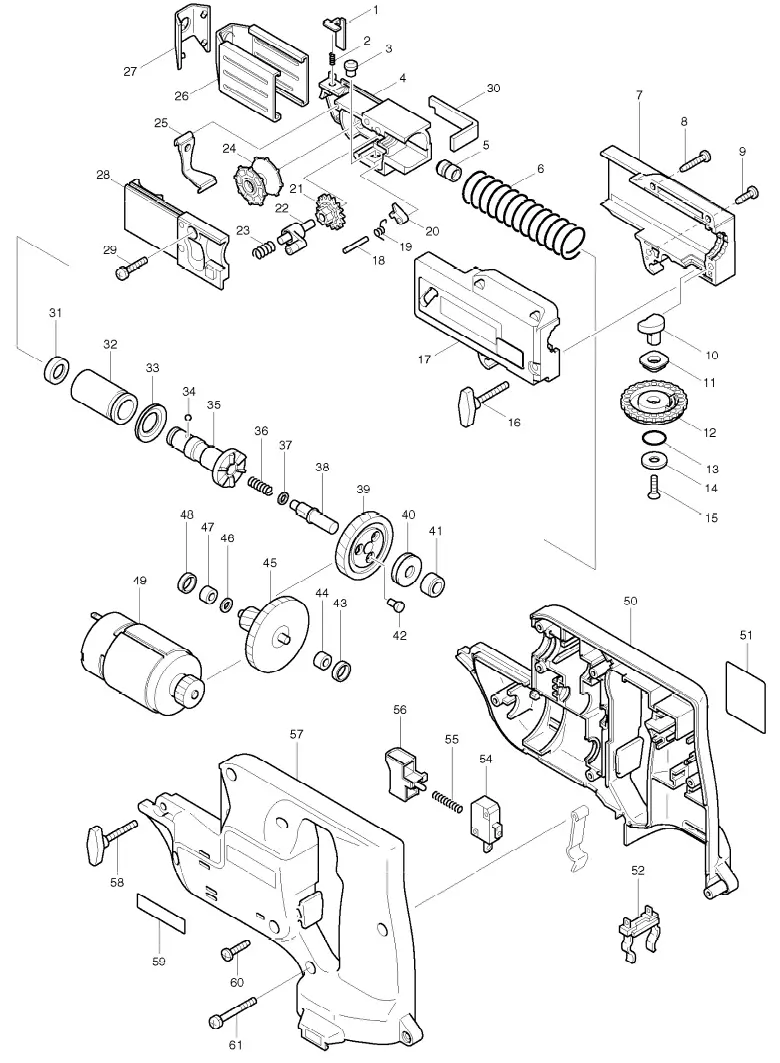

6835 D
6835 D
| П-п | Арт | Название |
|---|---|---|
| 1 | LEVER | |
| 2 | COMPRESSION SPRING 2 | |
| 3 | PIN 6 | |
| 4 | FEEDER BOX | |
| 5 | SLEEVE 5 | |
| 6 | COMPRESSION SPRING 21 | |
| 7 | CASING SET INC. 17 | |
| 8 | TAPPING SCREW 4X20 | |
| 9 | TAPPING SCREW 4X12 | |
| 10 | SHIFTER PIN | |
| 11 | SLEEVE 8 | |
| 12 | DIAL 42 | |
| 13 | O RING 11 | |
| 14 | FLAT WASHER 6 | |
| 15 | COUNTERSUNK HEAD SCREW M4X12 | |
| 16 | THUMB SCREW M4X28 | |
| 17 | CASING SET INC. 7 | |
| 18 | PIN 3 | |
| 19 | TORSION SPRING 4 | |
| 20 | STOPPER | |
| 21 | SPUR GEAR 16 | |
| 22 | RATCHET ARM COMPLETE | |
| 23 | COMPRESSION SPRING 6 | |
| 24 | WHEEL | |
| 25 | DUST COVER | |
| 26 | STOPPER BASE | |
| 27 | CAP | |
| 28 | BOX COVER COMPLETE | |
| 29 | PAN HEAD SCREW M4X18 | |
| 30 | PLATE | |
| 31 | DUST COVER | |
| 32 | PLANE BEARING 14 | |
| 33 | RING 15 | |
| 34 | STEEL BALL 3.5 | |
| 35 | SPINDLE COMPLETE | |
| 36 | COMPRESSION SPRING 8 | |
| 37 | FLAT WASHER 8 | |
| 38 | PIN | |
| 39 | GEAR COMPLETE | |
| 40 | THRUST NEEDLE BEARING 821 | |
| 41 | PLANE BEARING 8 | |
| 42 | SHOULDER PIN 4 | |
| 43 | RUBBER SLEEVE 10 | |
| 44 | PLANE BEARING 5 | |
| 45 | GEAR COMPLETE 16-49 | |
| 46 | FLAT WASHER 5 | |
| 47 | PLANE BEARING 5 | |
| 48 | RUBBER SLEEVE 10 | |
| 49 | DC MOTOR 12V | |
| 50 | HOUSING SET INC. 57, 59 | |
| 51 | NAME PLATE 6835D | |
| 52 | BATTERY HOLDER | |
| 54 | SWITCH V-15-3A6 | |
| 55 | COMPRESSION SPRING 4 | |
| 56 | SWITCH LEVER | |
| 57 | HOUSING SET INC. 50,59 | |
| 58 | THUMB SCREW M4X28 | |
| 59 | MAKITA LABEL | |
| 60 | TAPPING SCREW 4X18 | |
| 61 | PAN HEAD SCREW M4X22 | |
| A01 | HOOK | |
| A02 | SET PLATE | |
| A03 | BATTERY COVER | |
| A04 | + BIT 2-127 | |
| A05 | PLASTIC CARRYING CASE | |
| A06 | BATTERY 1222 SET | |
| B02 | STOPPER BASE COMPLETE |
