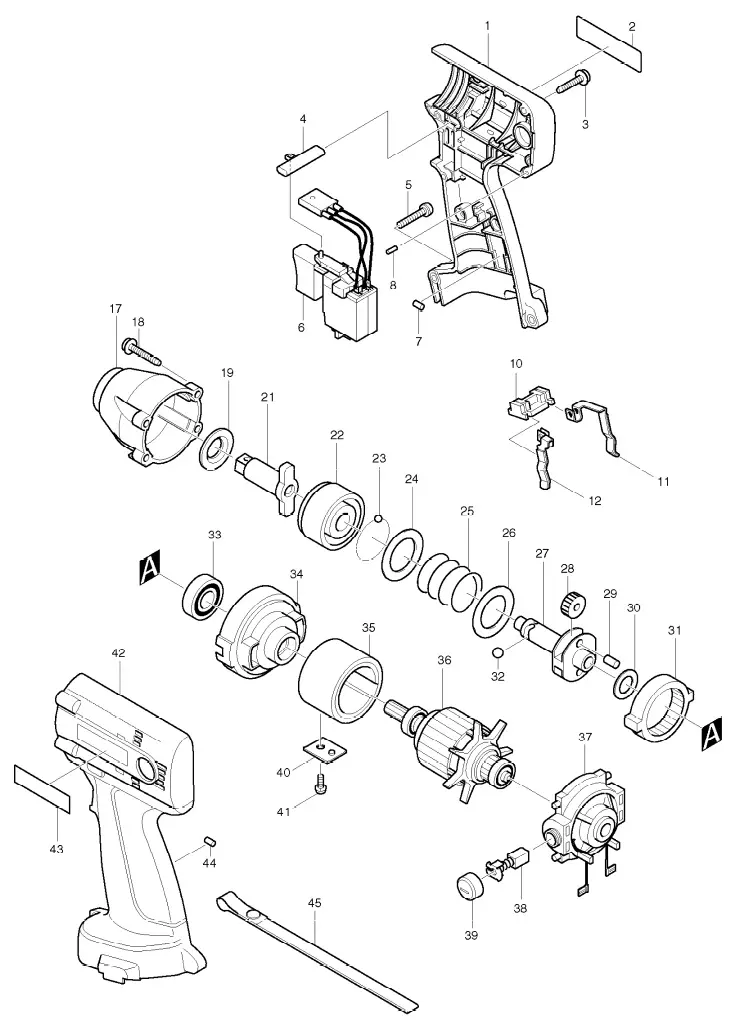

6918 D
6918 D
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 7, 42, 44 | |
| 2 | NAME PLATE 6918D | |
| 3 | TAPPING SCREW 4X18 | |
| 4 | F/R CHANGE LEVER | |
| 5 | PAN HEAD SCREW M4X22 | |
| 6 | SWITCH | |
| 7 | RUBBER PIN 4 | |
| 8 | PIN 2.5 | |
| 10 | HOLDER | |
| 11 | SPRING TERMINAL (+) | |
| 12 | SPRING TERMINAL (-) | |
| 17 | HAMMER CASE COMPLETE | |
| 18 | TAPPING SCREW 4X25 | |
| 19 | NYLON WASHER 18 | |
| 21 | ANVIL | |
| 22 | HAMMER | |
| 23 |  |
STEEL BALL 3.5 |
| 24 |  |
FLAT WASHER 24 |
| 25 |  |
COMPRESSION SPRING 25 |
| 26 |  |
CUP WASHER 14 |
| 27 |  |
SPINDLE |
| 28 |  |
SPUR GEAR 22 |
| 29 |  |
PIN 5 |
| 30 |  |
FLAT WASHER 12 |
| 31 |  |
INTERNAL GEAR 51 |
| 32 |  |
STEEL BALL 5.6 |
| 33 |  |
BALL BEARING 6901LLB |
| 34 |  |
INTERNAL GEAR CASE |
| 35 |  |
YOKE UNIT |
| 36 |  |
ARMATURE |
| 37 |  |
ENDBELL COMPLETE |
| 38 |  |
CARBON BRUSH CB-434 |
| 39 |  |
BRUSH HOLDER CAP |
| 40 |  |
FET SPACER |
| 41 |  |
TAPPING SCREW ST3X8 |
| 42 |  |
HOUSING SET INC. 1, 7, 44 |
| 43 |  |
MAKITA LABEL |
| 44 |  |
RUBBER PIN 4 |
| A01 |  |
O RING 24 |
| A02 |  |
PIN 4 |
| A03 |  |
SOCKET 19-38 ASS\\\\\'Y INC. A01, A02 |
| A04 |  |
PLASTIC CARRYING CASE |
| A05 |  |
BATTERY COVER |
| A06 |  |
BATTERY 1222 SET |
| E01 |  |
BATTERY COVER |
| E03 |  |
BATTERY 1222 SET |
| E05 |  |
NI-MH(2.6A) BATTERY 1234 SET |
| E07 |  |
RING SPRING 10 |
