6940 D
6940 D

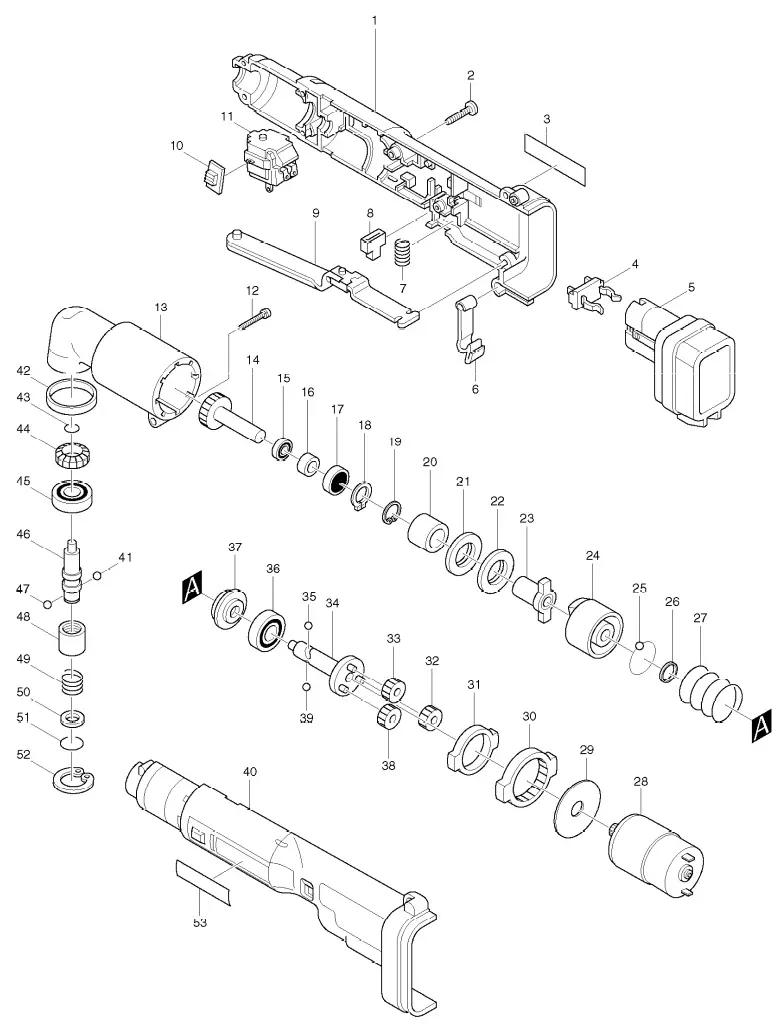

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HOUSING SET INC. 40 |
| 2 |  |
TAPPING SCREW BT4X20 |
| 3 |  |
NAME PLATE 6940D |
| 4 |  |
BATTERY HOLDER |
| 5 |  |
BATTERY 9100 SET |
| 6 |  |
SET PLATE |
| 7 |  |
COMPRESSION SPRING 6 |
| 8 |  |
SWITCH LEVER |
| 9 |  |
LEVER COMPLETE |
| 10 |  |
LEVER |
| 11 |  |
SWITCH |
| 12 |  |
+ HEX. BOLT M5X30 |
| 13 |  |
ANGLE HEAD COMPLETE |
| 14 |  |
ZEROL BEVEL GEAR 13 |
| 15 |  |
BALL BEARING 6000 |
| 16 |  |
SLEEVE 10 |
| 17 |  |
BALL BEARING 6000LLB |
| 18 |  |
RETAINING RING S-10 |
| 19 |  |
RETAINING RING R-26 |
| 20 | SLEEVE 15 | |
| 21 | RUBBER WASHER 21 | |
| 22 | FLAT WASHER 15 | |
| 23 | ANVIL | |
| 24 | HAMMER | |
| 25 | STEEL BALL 3.5 | |
| 26 | FLAT WASHER 20 | |
| 27 | COMPRESSION SPRING 22 | |
| 28 | DC MOTOR 9.6V | |
| 29 | FLAT WASHER 12 | |
| 30 | INTERNAL GEAR 69 | |
| 31 | RING 32 | |
| 32 | SPUR GEAR 29 | |
| 33 | SPUR GEAR 29 | |
| 34 | SPINDLE COMPLETE | |
| 35 | STEEL BALL 4.8 | |
| 36 | BALL BEARING 6000 фото1 фото2 | |
| 37 | WASHER 10 | |
| 38 | SPUR GEAR 29 | |
| 39 | STEEL BALL 4.8 | |
| 40 | HOUSING SET INC. 1 | |
| 41 | STEEL BALL 3.5 | |
| 42 | RUBBER RING 31 | |
| 43 | RING SPRING 9 | |
| 44 | ZEROL BEVEL GEAR 13 | |
| 45 | BALL BEARING 6001DDW | |
| 46 | SPINDLE M | |
| 47 | STEEL BALL 3.5 | |
| 48 | SLEEVE | |
| 49 | COMPRESSION SPRING 13 | |
| 50 | FLAT WASHER 12 | |
| 51 | RING SPRING 11 | |
| 52 | RETAINING RING R-28 | |
| 53 | MAKITA LABEL | |
| 54 | LINE FILTER | |
| A01 | BATTERY COVER | |
| A03 | PLASTIC CARRING CASE | |
| B01 | DC1414 BATTERY CHARGER |
