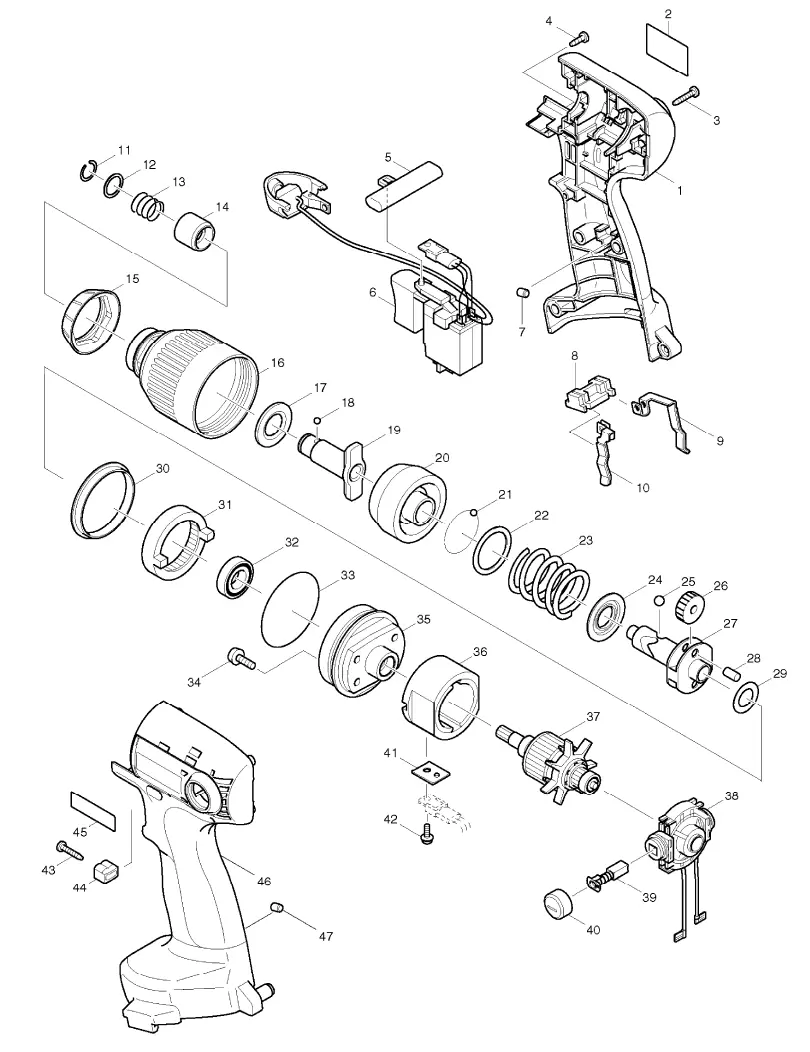

6980 FD
6980 FD
| П-п | Арт | Название |
|---|---|---|
| 1 | Корпус | |
| 2 | NAME PLATE 6980FD | |
| 3 | TAPPING SCREW BIND PT 3X16 | |
| 4 | TAPPING SCREW BIND PT 3X10 | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH UNIT | |
| 7 | RUBBER PIN 4 | |
| 8 | HOLDER | |
| 9 | SPRING TERMINAL (+) | |
| 10 | SPRING TERMINAL (-) | |
| 11 | RING SPRING 11 | |
| 12 | FLAT WASHER 12 | |
| 13 | COMPRESSION SPRING 13 | |
| 14 | SLEEVE | |
| 15 | BAMPER | |
| 16 | _______ | |
| 17 | NYLON WASHER 14 | |
| 18 | STEEL BALL 3.5 | |
| 19 | ANVIL M | |
| 20 | HAMMER | |
| 21 | STEEL BALL 3.5 | |
| 22 | FLAT WASHER 24 | |
| 23 | COMPRESSION SPRING 25 | |
| 24 | CUP WASHER 14 | |
| 25 | STEEL BALL 5.6 | |
| 26 | SPUR GEAR 22 | |
| 27 | SPINDLE | |
| 28 | PIN 5 | |
| 29 | FLAT WASHER 12 | |
| 30 | RING 41 | |
| 31 | ________ | |
| 32 | BALL BEARING 6901ZZ | |
| 33 | O RING 46 | |
| 34 | PAN HEAD SCREW M4X12 | |
| 35 | _________ | |
| 36 | _________ | |
| 37 | ARMATURE | |
| 38 | ENDBELL COMPLETE | |
| 39 | CARBON BRUSH CB-434 | |
| 40 | BRUSH HOLDER CAP | |
| 41 | FET SPACER | |
| 42 | TAPPING SCREW ST3X8 | |
| 43 | TAPPING SCREW BIND PT 3X16 | |
| 44 | STOPPER | |
| 45 | MAKITA LABEL | |
| 46 | _______ | |
| 47 | RUBBER PIN 4 | |
| A01 | BATTERY COVER | |
| A02 | BATTERY 1222 SET | |
| A03 | DC1414 BATTERY CHARGER | |
| A04 | CASE | |
| A05 | HOOK |
