BTD 145

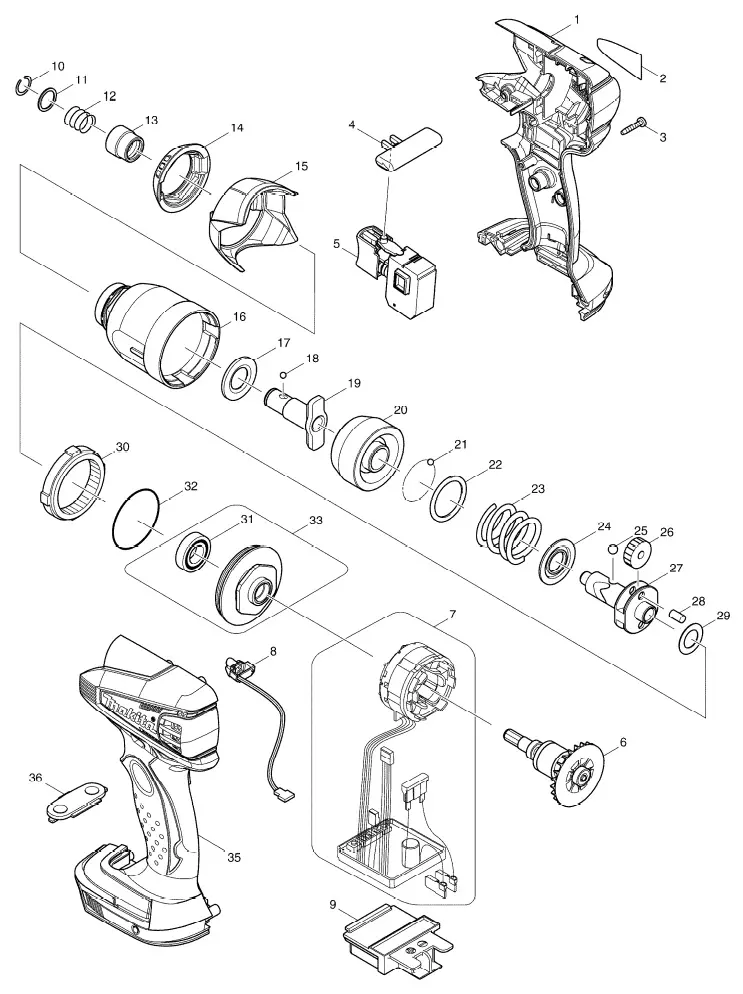

BTD 145
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 35 | |
| 2 | BTD145 NAME PLATE | |
| 3 | TAPPING SCREW BIND PT 3X16 | |
| 4 | F/R CHANGE LEVER | |
| 5 | SWITCH | |
| 6 | ROTOR | |
| 7 | STATOR UNIT | |
| 8 | LED CIRCUIT | |
| 9 | TERMINAL | |
| 10 | RING SPRING 11 | |
| 11 | FLAT WASHER 12 | |
| 12 | COMPRESSION SPRING 13 | |
| 13 | SLEEVE | |
| 14 | BUMPER | |
| 15 | HAMMER CASE COVER | |
| 16 | HAMMER CASE COMPLETE | |
| 17 | NYLON WASHER 14 | |
| 18 | STEEL BALL 3.5 | |
| 19 | ANVIL M | |
| 20 | HAMMER | |
| 21 | STEEL BALL 3.5 | |
| 22 | FLAT WASHER 24 | |
| 23 | COMPRESSION SPRING 25 | |
| 24 | CUP WASHER 14 | |
| 25 | STEEL BALL 5.6 | |
| 26 | SPUR GEAR 22 | |
| 27 | SPINDLE | |
| 28 | PIN 5 | |
| 29 | FLAT WASHER 12 | |
| 30 | INTERNAL GEAR 51 | |
| 31 | BALL BEARING 6901LLB | |
| 32 | O RING 40 | |
| 33 | BEARING BOX COMPLETE INC. 31 | |
| 35 | HOUSING SET INC. 1 | |
| 36 | SWITCH PLATE COMPLETE | |
| A01 | TRUSS HEAD SCREW M4X12 | |
| A02 | HOOK | |
| A03 | DC18RA FAST CHARGER | |
| A04 | BATTERY BL1830 SET | |
| A05 | BATTERY COVER | |
| A06 | PLASTIC CARRYING CASE | |
| A07 | BTD145RFE PLASTIC CASE LABEL |
