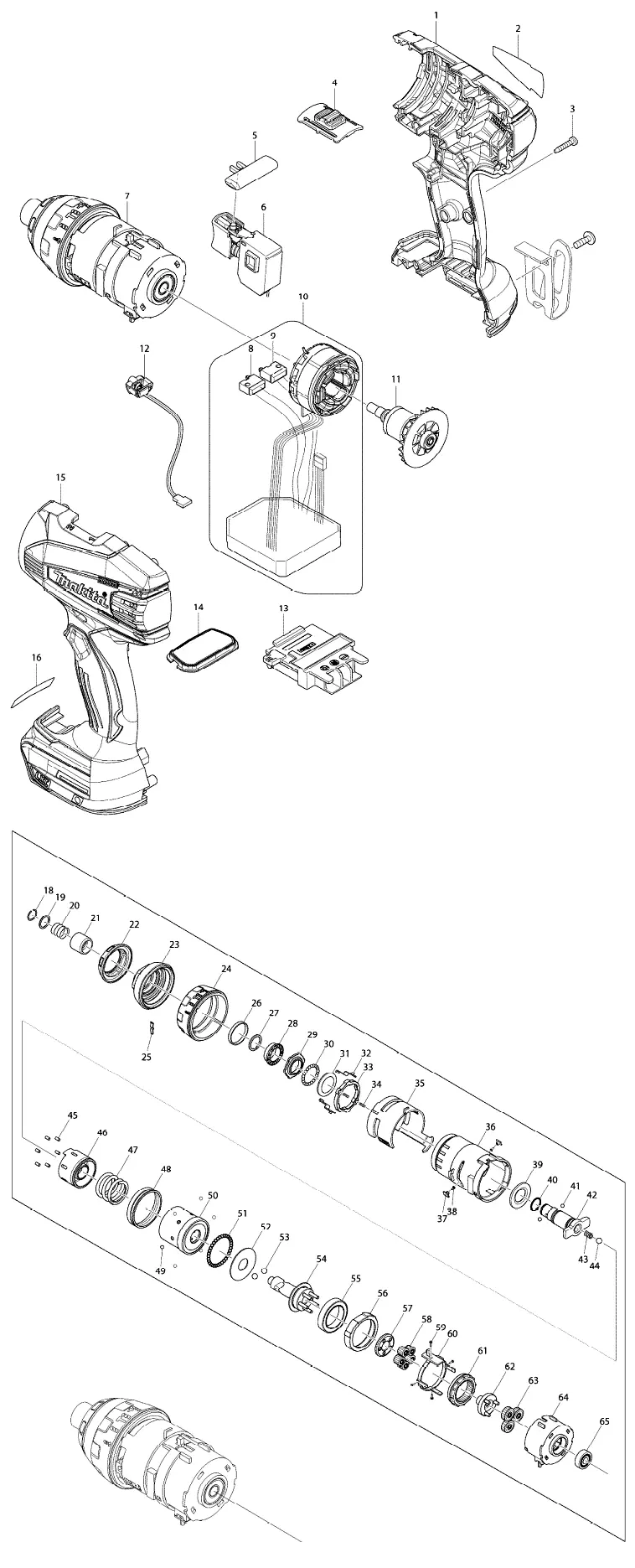

BTP 141 RFE
BTP 141 RFE
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HOUSING SET INC. 15 |
| 2 |  |
BTP141 NAME PLATE |
| 3 |  |
TAPPING SCREW BIND PT 3X16 |
| 4 |  |
SPEED CHANGE LEVER ASSEMBLY |
| 5 |  |
F/R CHANGE LEVER |
| 6 |  |
SWITCH C3JW-1A |
| 7 |  |
IMPACT ASSEMBLY M INC. 18-65 |
| 8 |  |
SWITCH UNIT |
| 9 |  |
SWITCH UNIT |
| 10 |  |
STATOR COMPLETE INC. 8,9 |
| 11 |  |
ROTOR |
| 12 |  |
LED CIRCUIT |
| 13 |  |
TERMINAL |
| 14 |  |
SWITCH PLATE COMPLETE |
| 15 |  |
HOUSING SET INC. 1 |
| 18 |  |
RING SPRING 11 |
| 19 |  |
FLAT WASHER 12 |
| 20 |  |
COMPRESSION SPRING 13 |
| 21 |  |
SLEEVE |
| 22 |  |
BAMPER |
| 23 | HAMMER CASE ASS\\\'Y | |
| 24 | CHANGE RING | |
| 25 | LEAF SPRING | |
| 26 | SLEEVE 24 | |
| 27 | RETAINING RING WR-15 | |
| 28 | CAM A | |
| 29 | CAM B | |
| 30 | STEEL BALL 3 | |
| 31 | CUP WASHER | |
| 32 | HAMMER CHANGE PLATE | |
| 33 | HAMMER CHANGE RING | |
| 34 | COMPRESSION SPRING 2 | |
| 35 | CHANGE CASE | |
| 36 | GEAR CASE ASS\\\'Y | |
| 37 | PIN GUIDE | |
| 38 | FLAT FILLISTER HD. PIN 1.2-3.5 | |
| 39 | NYLON WASHER 15 | |
| 40 | O RING 12.5 | |
| 41 | STEEL BALL 3.5 | |
| 42 | ANVIL M | |
| 43 | COMPRESSION SPRING 5 | |
| 44 | STEEL BALL 5.6 | |
| 45 | PIN 2.5 | |
| 46 | HAMMER | |
| 47 | COMPRESSION SPRING 22 | |
| 48 | CHANGE SLEEVE | |
| 49 | STEEL BALL 3 | |
| 50 | OUTER HAMMER | |
| 51 | STEEL BALL 3 | |
| 52 | FLAT WASHER 14 | |
| 53 | STEEL BALL 5.6 | |
| 54 | SPINDLE COMPLETE | |
| 55 | BALL BEARING 6805LLB | |
| 56 | BEARING CASE | |
| 57 | SPUR GEAR 41 | |
| 58 | SPUR GEAR 14B | |
| 59 | FLAT FILLISTER HD. PIN 1.2 | |
| 60 | CHANGE LEVER | |
| 61 | INTERNAL GEAR 41 | |
| 62 | SPUR GEAR 14A COMPLETE | |
| 63 | SPUR GEAR 21 | |
| 64 | MOTOR BRACKET ASS\\\'Y | |
| 65 | BALL BEARING 607ZZ | |
| A01 | SCREW M4X12 | |
| A02 | HOOK | |
| A03 | DC18RC FAST CHARGER | |
| A04 | BATTERY BL1830 SET | |
| A05 | BATTERY COVER | |
| A06 | PLASTIC CARRYING CASE | |
| A07 | BTP141RFE PLASTIC CASE LABEL |
