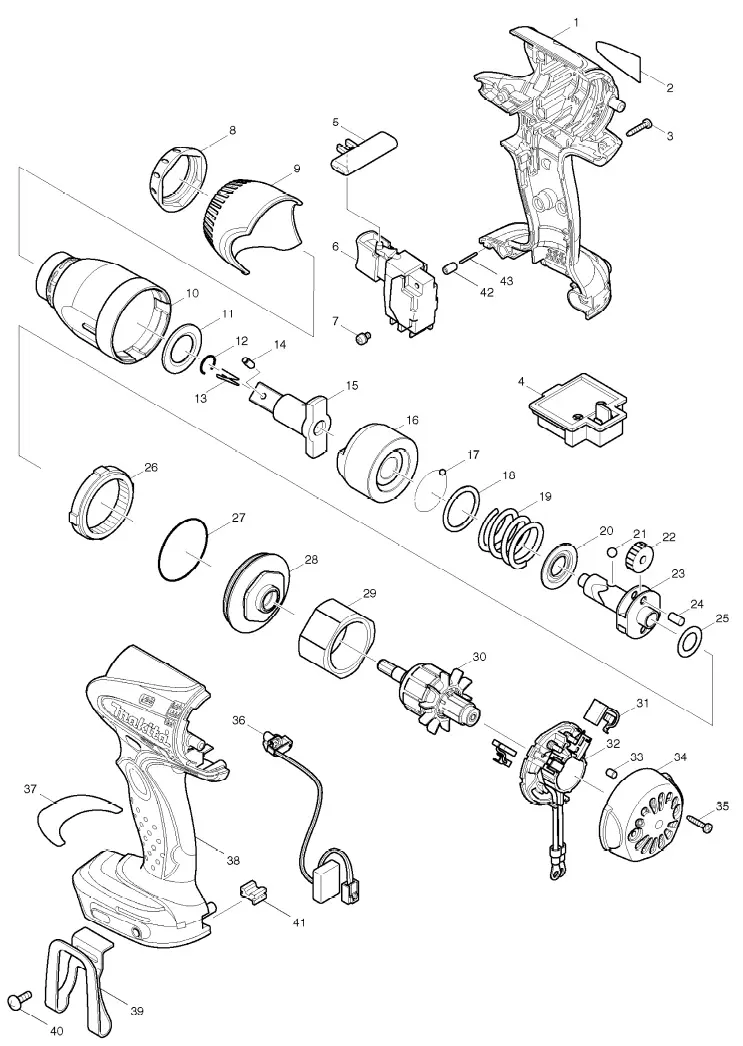

BTW 250
BTW 250
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 38 | |
| 2 | BTW250 NAME PLATE | |
| 3 | TAPPING SCREW BIND PT 3X16 | |
| 4 | TERMINAL | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH TG553FSB-1 | |
| 7 | PAN HEAD SCREW | |
| 8 | BUMPER | |
| 9 | HAMMER CASE COVER | |
| 10 | HAMMER CASE COMPLETE | |
| 11 | NYLON WASHER 18 | |
| 12 | RING SPRING 10 | |
| 15 | ANVIL | |
| 16 | HAMMER | |
| 17 | STEEL BALL 3.5 | |
| 18 | FLAT WASHER 24 | |
| 19 | COMPRESSION SPRING 25 | |
| 20 | CUP WASHER 14 | |
| 21 | STEEL BALL 5.6 | |
| 22 | SPUR GEAR 22 | |
| 23 | SPINDLE | |
| 24 | PIN 5 | |
| 25 | FLAT WASHER 12 | |
| 26 | INTERNAL GEAR 51 | |
| 27 | O RING 40 | |
| 28 | BEARING BOX COMPLETE | |
| 29 | YORK UNIT | |
| 30 | ARMATURE | |
| 31 | CARBON BRUSH CB-440 | |
| 32 | BRUSH HOLDER COMPLETE | |
| 33 | RUBBER PIN 4 | |
| 34 | REAR COVER | |
| 35 | TAPPING SCREW BIND PT 3X16 | |
| 36 | LIGHT CIRCUIT | |
| 38 | HOUSING SET INC. 1 | |
| 39 | HOOK | |
| 40 | SCREW M4X12 | |
| 41 | CUSHION | |
| 42 | RUBBER PIN 5 | |
| 43 | PIN 1.5 | |
| A01 | DC18RA FAST CHARGER | |
| A02 | BATTERY BL1430 SET | |
| A03 | PLASTIC CARRYING CASE | |
| A04 | BTW250RFE PLASTIC CASE LABEL | |
| A05 | BATTERY COVER |
