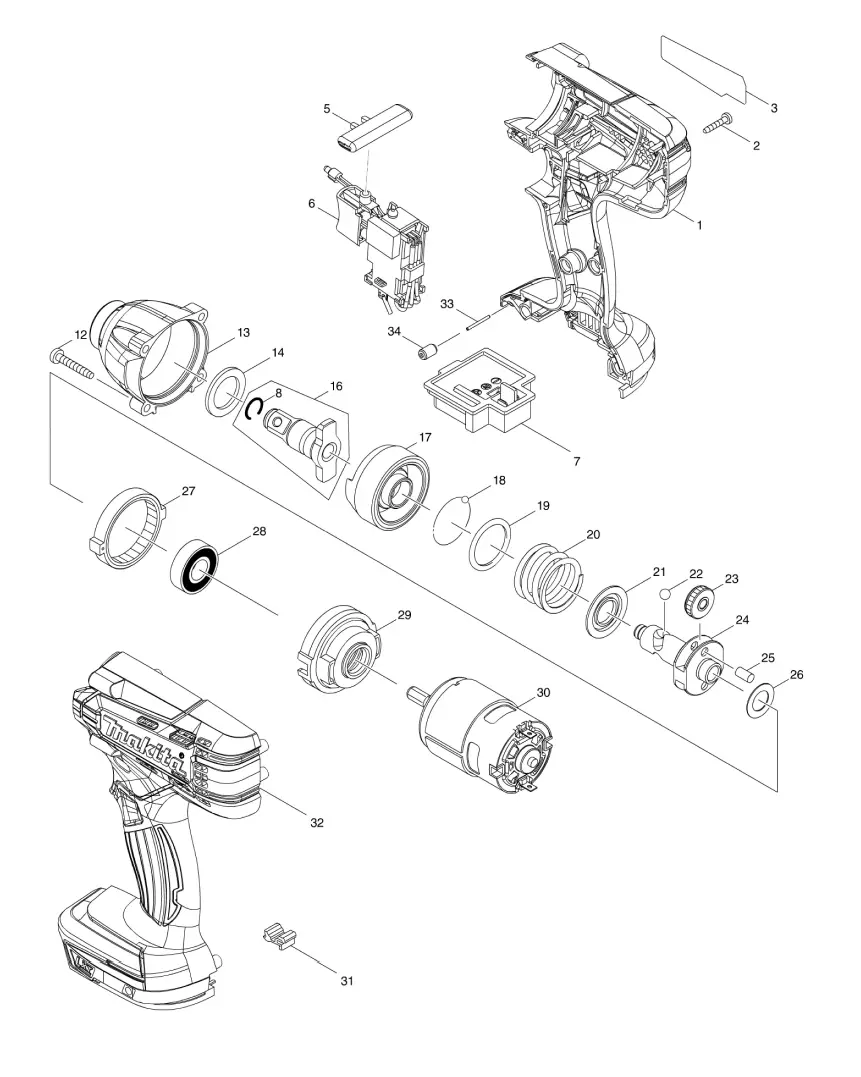

DTW 190
DTW 190
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| C20 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 32 | |
| 001-1 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| C20 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 32 | |
| 2 | TAPPING SCREW 3X16 | |
| 3 | DTW190 NAME PLATE | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH UNIT | |
| C10 | LINE FILTER | |
| C20 | LINE FILTER | |
| 006-1 | SWITCH UNIT | |
| C10 | LINE FILTER | |
| C20 | LINE FILTER | |
| 7 | TERMINAL | |
| 8 | RING SPRING 10 | |
| 12 | TAPPING SCREW 4X25 | |
| 13 | HAMMER CASE COMPLETE | |
| C10 | O RING 16 | |
| C11 | O RING 16 | |
| 14 | NYLON WASHER 19 | |
| 16 | ANVIL E ASSEMBLY | |
| D10 | INC. 8 | |
| 016-1 | ANVIL E ASSEMBLY | |
| D10 | INC. 8 | |
| 17 | HAMMER | |
| 18 | STEEL BALL 3.5 | |
| 19 | FLAT WASHER 24 | |
| 20 | COMPRESSION SPRING 24 | |
| 21 | CUP WASHER 14 | |
| 22 | STEEL BALL 5.6 | |
| 23 | SPUR GEAR 22 | |
| 24 | SPINDLE | |
| 25 | PIN 5 | |
| 26 | FLAT WASHER 12 | |
| 27 | INTERNAL GEAR 51 | |
| 28 | BALL BEARING 6001ZZ | |
| 29 | INTERNAL GEAR CASE | |
| 30 | DC MOTOR | |
| 31 | CUSHION | |
| 32 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| C20 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 1 | |
| 032-1 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| C20 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 1 | |
| 33 | PIN 1.5 | |
| 34 | RUBBER PIN 5 | |
| A01B | PLASTIC CARRYING CASE COMPLETE | |
| C10 | LATCH | |
| C20 | SHAFT | |
| C30 | HANDLE | |
| A01C | PLASTIC CARRYING CASE COMPLETE | |
| C10 | LATCH | |
| C20 | SHAFT | |
| C30 | HANDLE | |
| A01D | PLASTIC CARRYING CASE COMPLETE | |
| C10 | LATCH | |
| C20 | SHAFT | |
| C30 | HANDLE | |
| A02B | DTW190RFE PLASTIC CASE LABEL | |
| A02C | DTW190RME PLASTIC CASE LABEL | |
| A02D | DTW190RTE PLASTIC CASE LABEL | |
| A03B | DC18RC FAST CHARGER | |
| D10 | COMPO-PARTS | |
| A03C | DC18RC FAST CHARGER | |
| D10 | COMPO-PARTS | |
| A03D | DC18RC FAST CHARGER | |
| D10 | COMPO-PARTS | |
| A04B | BATTERY BL1830 SET | |
| A04C | BATTERY BL1840B SET | |
| A04D | BATTERY BL1850B SET | |
| A04-1B | BATTERY BL1830B SET | |
| A05B | BATTERY COVER | |
| A05C | BATTERY COVER | |
| A05D | BATTERY COVER |
