DTW 251

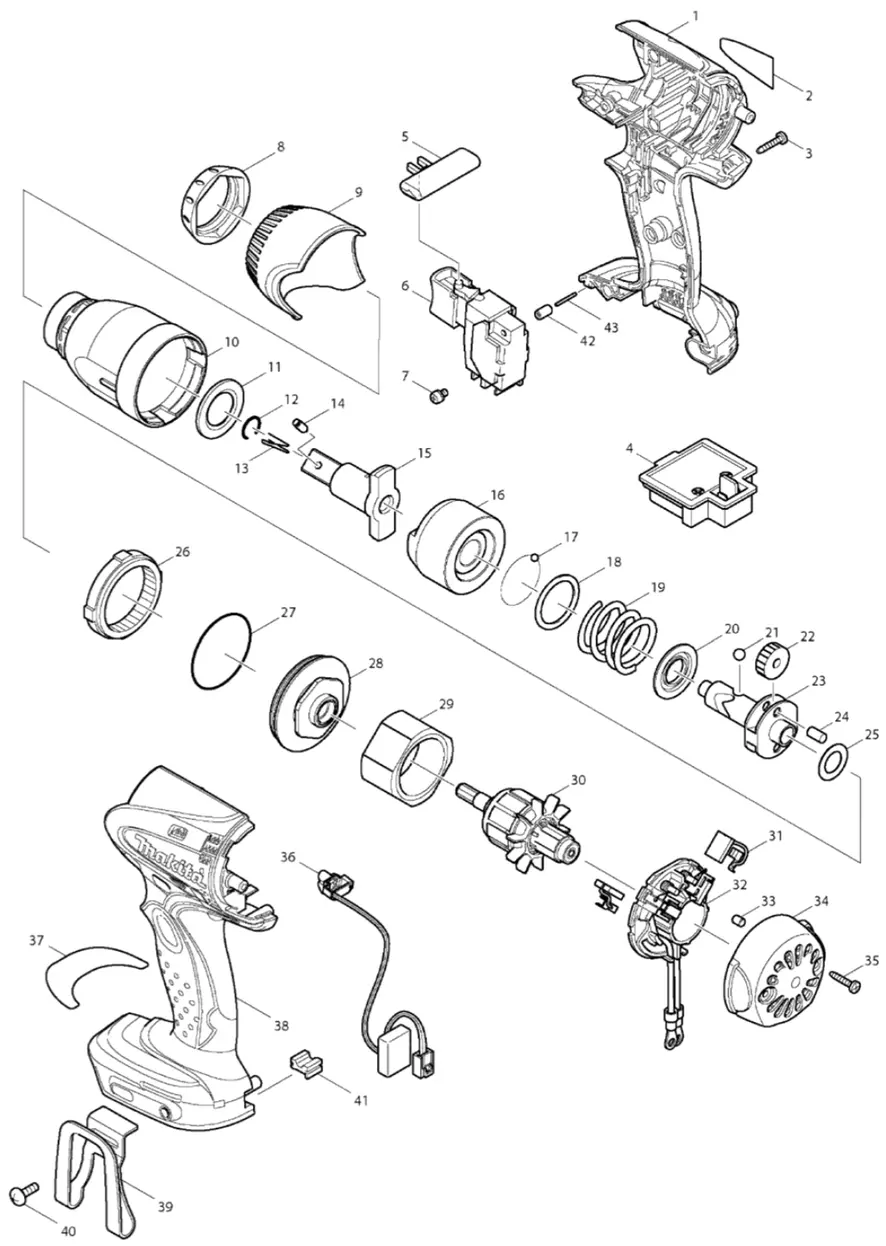

DTW 251
| П-п | Арт | Название |
|---|---|---|
| 001 | HOUSING SET | |
| 002 | INC. 38 DTW251 NAME PLATE | |
| 003 | TAPPING SCREW BIND PT 3X16 | |
| 004 | TERMINAL | |
| 005 | F/R CHANGE LEVER | |
| 006 | SWITCH TG553FSB-1B | |
| 007 | +PAN HEAD SCREW M3.5X5 | |
| 008 | BUMPER | |
| 009 | HAMMER CASE COVER | |
| 010 | HAMMER CASE COMPLETE | |
| 011 | NYLON WASHER 18 | |
| 012 | RING SPRING 10 | |
| 015 | ANVIL | |
| 016 | HAMMER | |
| 017 | STEEL BALL 3.5 | |
| 018 | FLAT WASHER 24 | |
| 019 | COMPRESSION SPRING 25 | |
| 020 | CUP WASHER 14 | |
| 021 | STEEL BALL 5.6 | |
| 022 | SPUR GEAR 22 | |
| 023 | SPINDLE | |
| 024 | PIN 5 | |
| 025 | FLAT WASHER 12 | |
| 026 | INTERNAL GEAR 51 | |
| 027 | O RING 40 | |
| 028 | BEARING BOX COMPLETE | |
| 029 | YORK UNIT | |
| 030 | ARMATURE | |
| 031 | CARBON BRUSH CB-448 | |
| 032 | BRUSH HOLDER COMPLETE | |
| 033 | RUBBER PIN 4 | |
| 034 | REAR COVER | |
| 035 | TAPPING SCREW BIND PT 3X16 | |
| 036 | LIGHT CIRCUIT | |
| 38 | HOUSING SET INC. 1 | |
| 39 | HOOK | |
| 040 | + SCREW M4X12 | |
| 041 | CUSHION | |
| 042 | RUBBER PIN 5 | |
| 043 | PIN 1.5 | |
| A01 | DC18RC FAST CHARGER | |
| A02 | BATTERY BL1830 SET | |
| A03 |  |
PLASTIC CARRYING CASE |
| A04 |  |
DTW251RFE MODEL NO. LABEL |
| A05 |  |
BATTERY COVER |
