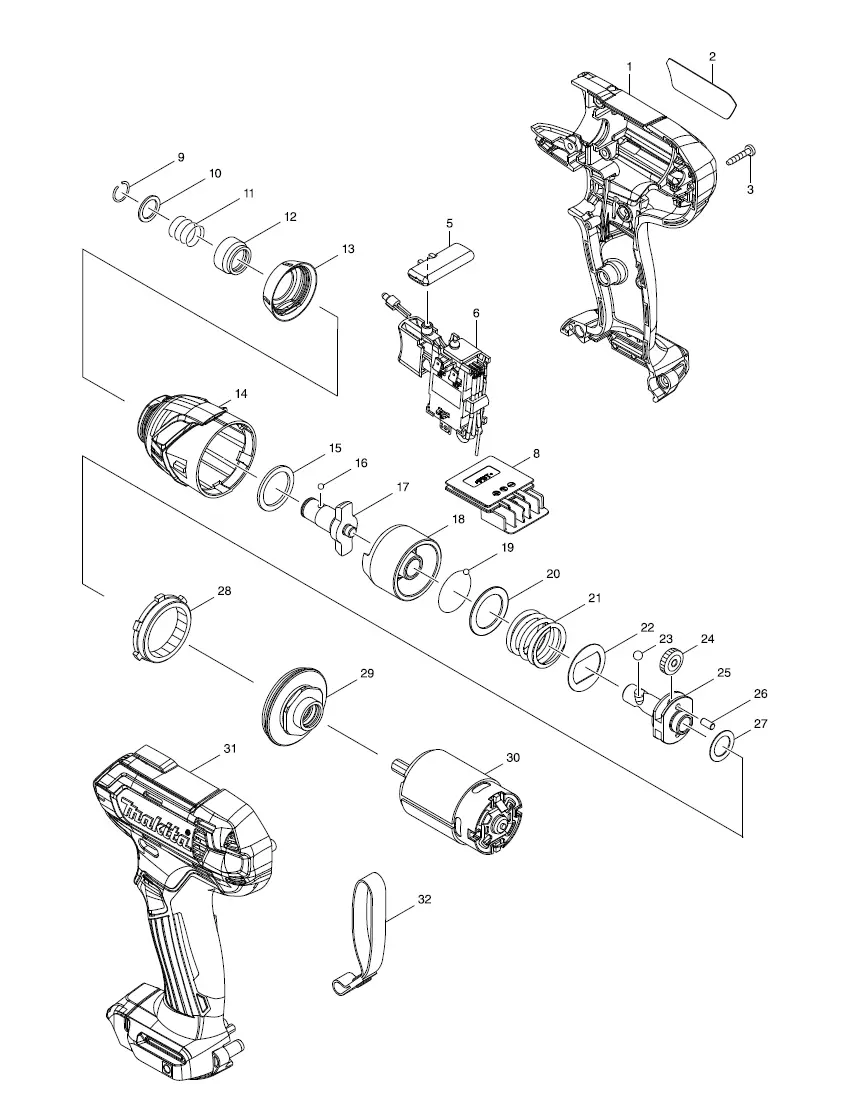

TD 110 D
TD 110 D
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET | |
| C10 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 31 | |
| 2 | TD110D NAME PLATE | |
| 3 | TAPPING SCREW 3X16 | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH UNIT | |
| C10 | LED CIRCUIT | |
| C20 | LINE FILTER UNIT | |
| 8 | TERMINAL | |
| 9 | RING SPRING 10 | |
| 10 | FLAT WASHER 11 | |
| 11 | COMPRESSION SPRING 13 | |
| 12 | BIT SLEEVE | |
| 13 | BUMPER | |
| 14 | HAMMER CASE COMPLETE | |
| 15 | NYLON WASHER 20 | |
| 16 | STEEL BALL 3 | |
| 17 | ANVIL M | |
| 18 | HAMMER | |
| 19 | STEEL BALL 3 | |
| 20 | FLAT WASHER 20 | |
| 21 | COMPRESSION SPRING 21 | |
| 22 | WASHER 21 | |
| 23 | STEEL BALL 4.8 | |
| 24 | SPUR GEAR 17 | |
| 25 | SPINDLE | |
| 26 | PIN 3.5 | |
| 27 | FLAT WASHER 12 | |
| 28 | INTERNAL GEAR 43 | |
| 29 | BEARING BOX COMPLETE | |
| 30 | DC MOTOR | |
| 31 | HOUSING SET | |
| C10 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 1 | |
| 33 | LINE FILTER | |
| A01 | TRUSS HEAD SCREW M4X12 | |
| A02 | HOOK | |
| A03 | BIT 2-50 | |
| A04B | BATTERY COVER | |
| A04C | BATTERY COVER | |
| A05B | DC 10WC BATTERY CHARGER | |
| D10 | COMPO-PARTS | |
| A05C | DC 10WC BATTERY CHARGER | |
| D10 | COMPO-PARTS | |
| A06B | BATTERY BL1020B SET | |
| A06C | BATTERY BL1040B SET | |
| A07B | PLASTIC CARRYING CASE | |
| C10 | LATCH | |
| A07C | PLASTIC CARRYING CASE | |
| C10 |  |
LATCH |
