TW 100 DZ

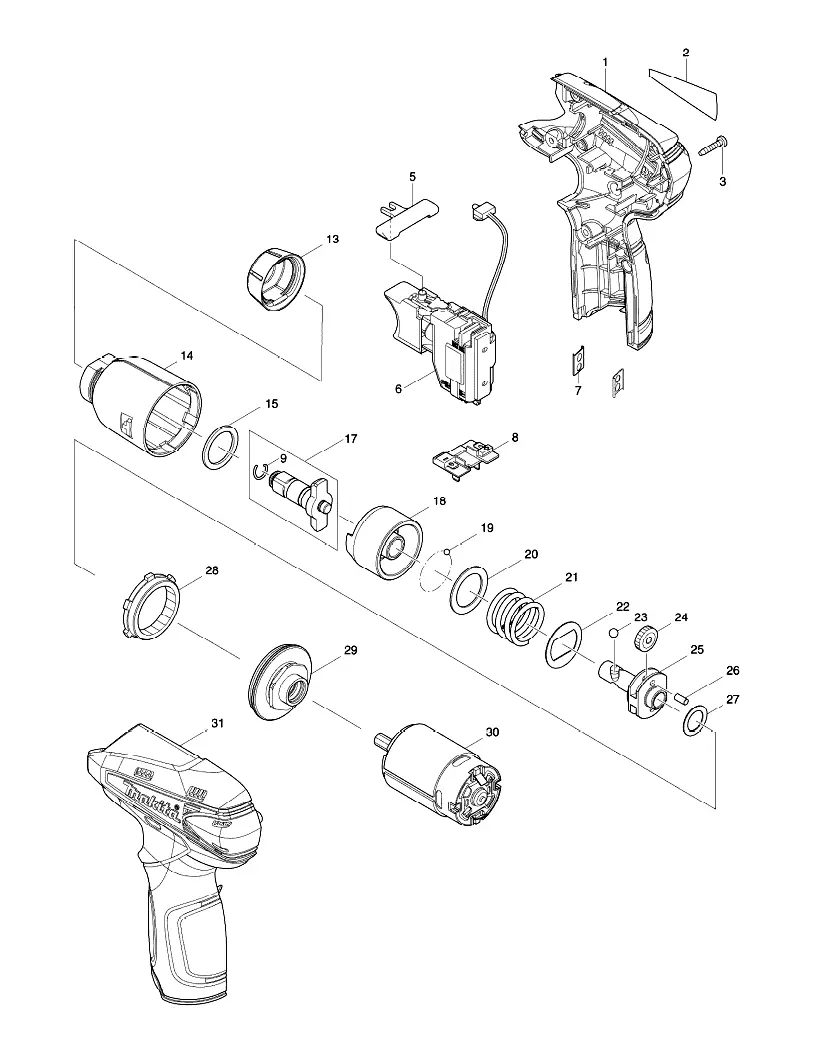

TW 100 DZ
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 31 | |
| 2 | TW100D NAME PLATE | |
| 3 | TAPPING SCREW 3X16 | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH C3HW-3A-EF1M | |
| 7 | SET PLATE | |
| 8 | TERMINAL | |
| 9 | RING SPRING 7 | |
| 13 | BUMPER | |
| 14 | HAMMER CASE COMPLETE | |
| 15 | NYLON WASHER 20 | |
| 17 | ANVIL ASSEMBLY INC. 9 | |
| 18 | HAMMER | |
| 19 | STEEL BALL 3 | |
| 20 | FLAT WASHER 20 | |
| 21 | COMPRESSION SPRING 21 | |
| 22 | WASHER 21 | |
| 23 | STEEL BALL 4.8 | |
| 24 | SPUR GEAR 17 | |
| 25 | SPINDLE | |
| 26 | PIN 3.5 | |
| 27 | FLAT WASHER 12 | |
| 28 | INTERNAL GEAR 43 | |
| 29 | BEARING BOX COMPLETE | |
| 30 | DC MOTOR | |
| 31 | HOUSING SET INC. 1 | |
| 32 | PIN 1.5 | |
| 33 | RUBBER PIN 6 | |
| 34 | LEAD ASS\\\'Y | |
| 35 | LEAD ASS\\\'Y | |
| A01 | DC10WA BATTERY CHARGER | |
| A02 | BATTERY BL1013 SET | |
| A03 | PLASTIC CARRYING CASE COMPLETE | |
| E01 | LINE FILTER UNIT |
