BHP 454

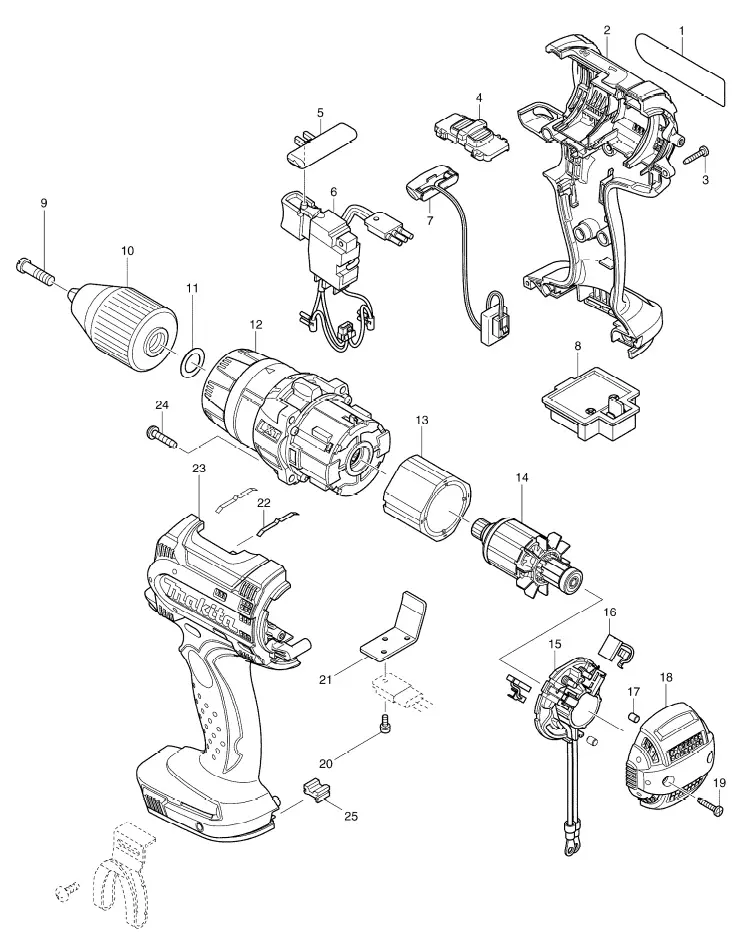

BHP 454
| П-п | Арт | Название |
|---|---|---|
| 1 | BHP454 NAME PLATE | |
| 2 | HOUSING SET INC. 23 | |
| 3 | TAPPING SCREW BIND PT 3X16 | |
| 4 | SPEED CHANGE LEVER ASS\\\\\'Y | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH TG553FSB-4 | |
| 7 | LIGHT CIRCUIT | |
| 8 | TERMINAL | |
| 9 | - FLAT HEAD SCREW M6X22 | |
| 10 | KEYLESS DRILL CHUCK 13 | |
| 11 | FLAT WASHER 13 | |
| 12 | GEAR ASS\\\\\'Y | |
| 13 | YOKE UNIT | |
| 14 | ARMATURE | |
| 15 | BRUSH HOLDER COMPLETE | |
| 16 | CARBON BRUSH CB-440 | |
| 17 | RUBBER PIN 4 | |
| 18 | REAR COVER | |
| 19 | TAPPING SCREW BIND PT 3X16 | |
| 20 | PAN HEAD SCREW M3X8 | |
| 21 | HEAT SINK | |
| 22 | LEAF SPRING | |
| 23 | HOUSING SET INC. 2 | |
| 24 | TAPPING SCREW 4X20 | |
| 25 | CUSHION | |
| A01 | STOPPER POLE ASS\\\\\'Y | |
| A02 | GRIP ASS\\\\\'Y | |
| A03 | SCREW M4X12 | |
| A04 | HOOK | |
| A05 | BIT HOLDER | |
| A06 | BIT 2-45 | |
| A07 | DC18RA FAST CHARGER | |
| A08 | BATTERY BL1830 SET | |
| A09 | BATTERY COVER | |
| A10 | PLASTIC CASE | |
| A11 | BHP454RFE PLASTIC CASE LABEL |
