DTD 152

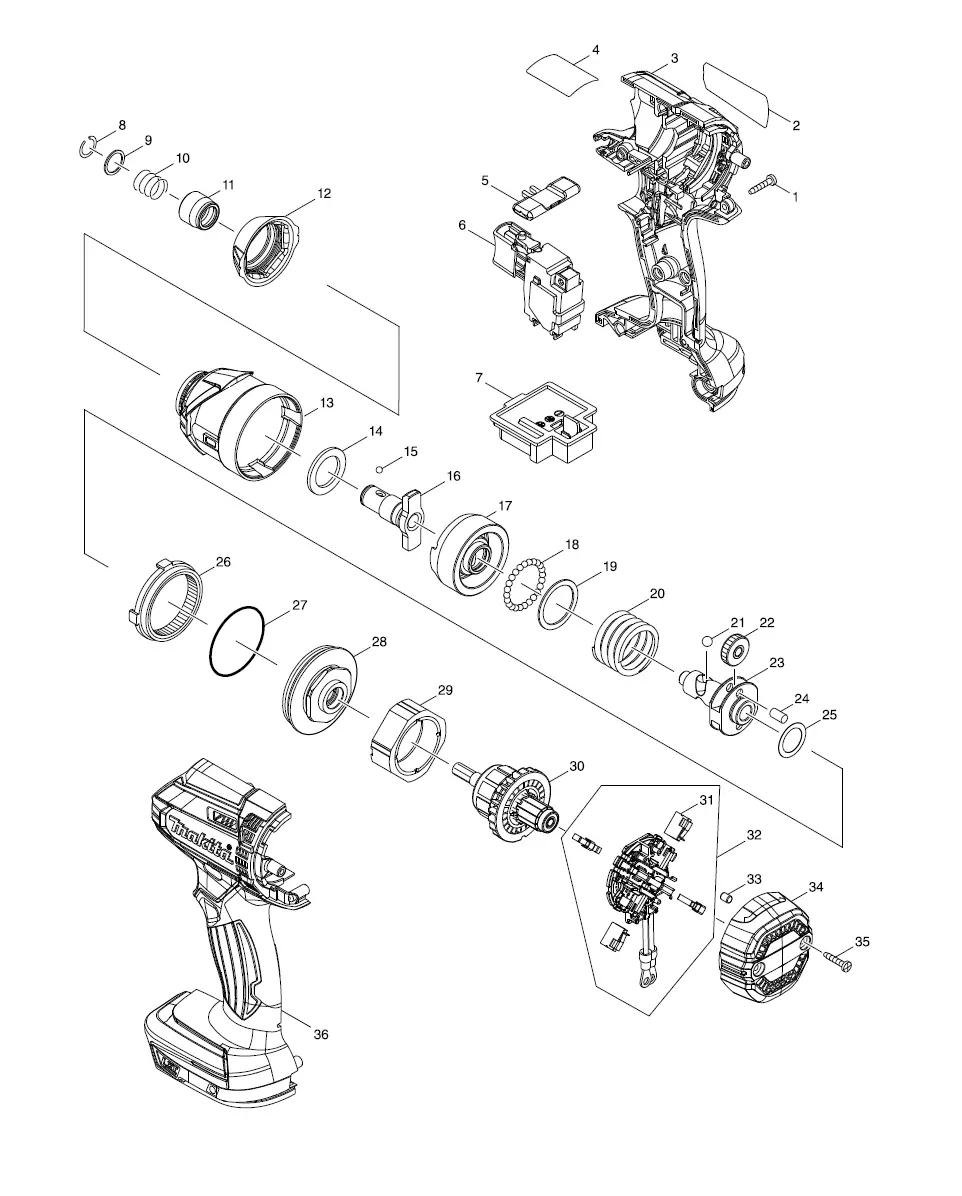

DTD 152
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 3X16 | |
| 2 | DTD152 NAME PLATE | |
| 3 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| D10 | INC. 36 | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH UNIT | |
| C10 | LED CIRCUIT | |
| C20 | LINE FILTER | |
| 7 | TERMINAL | |
| 8 | RING SPRING 11 | |
| 9 | FLAT WASHER 12 | |
| 10 | COMPRESSION SPRING 13 | |
| 11 | BIT SLEEVE | |
| 12 | BUMPER | |
| 13 | HAMMER CASE COMPLETE | |
| 14 | NYLON WASHER 19 | |
| 15 | STEEL BALL 3.5 | |
| 16 | ANVIL M | |
| 17 | HAMMER | |
| 18 | STEEL BALL 3.5 | |
| 19 | FLAT WASHER 24 | |
| 20 | COMPRESSION SPRING 25 | |
| 21 | STEEL BALL 5.6 | |
| 22 | SPUR GEAR 22 | |
| 23 | SPINDLE | |
| 24 | PIN 5 | |
| 25 | THIN WASHER 15 | |
| 26 | INTERNAL GEAR 51 | |
| 27 | O RING 40 | |
| 28 | BEARING BOX COMPLETE | |
| 29 | YOKE UNIT | |
| 30 | ARMATURE | |
| 31 | CARBON BRUSH CB-448 | |
| 32 | BRUSH HOLDER COMPLETE | |
| C10 | LINE FILTER | |
| C20 | INSULATED TERM. FT1.25-M3 | |
| D10 | INC. 31 | |
| 33 | RUBBER PIN 4 | |
| 34 | REAR COVER | |
| 35 | TAPPING SCREW 3X16 | |
| 36 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| D10 | INC. 3 | |
| A01 | HOOK | |
| A02 | + TRUSS HEAD SCREW M4X12 | |
| A03A | PLASTIC CARRYING CASE COMPLET | |
| C10 | LATCH | |
| C20 | SHAFT | |
| C30 | HANDLE | |
| A04A | BATTERY COVER | |
| A05A | DC18RC FAST CHARGER | |
| A06A | BATTERY BL1840 SET | |
| A06-1A | BATTERY BL1840B SET | |
| A07A | DTD152RME PLASTIC CASE LABEL |
