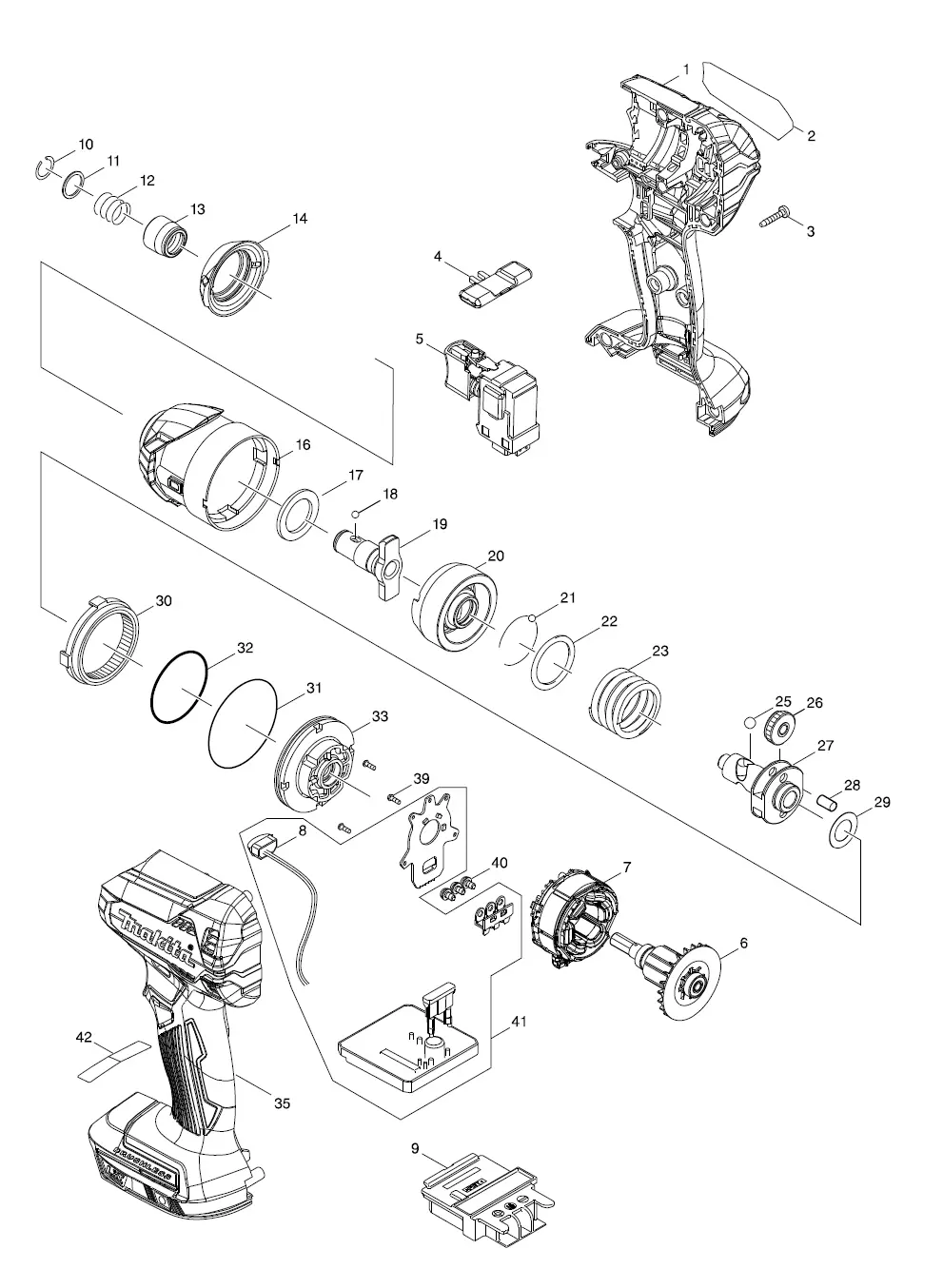

DTD 153
DTD 153
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| C20 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 35 | |
| 2 | DTD 153 NAME PLATE | |
| 3 | TAPPING SCREW 3X16 | |
| 4 | F/R CHANGE LEVER | |
| 5 | SWITCH COMPLETE | |
| 6 | ROTOR | |
| 7 | STATOR | |
| 8 | LED CIRCUIT | |
| 9 | TERMINAL | |
| 10 | RING SPRING 11 | |
| 11 | FLAT WASHER 12 | |
| 12 | COMPRESSION SPRING 13 | |
| 13 | BIT SLEEVE | |
| 14 | BUMPER | |
| 16 | HAMMER CASE COMPLETE | |
| 17 | NYLON WASHER 19 | |
| 18 | STEEL BALL 3.5 | |
| 19 | ANVIL M | |
| 20 | HAMMER | |
| 21 | STEEL BALL 3.5 | |
| 22 | FLAT WASHER 24 | |
| 23 | COMPRESSION SPRING 25 | |
| 25 | STEEL BALL 5.6 | |
| 26 | SPUR GEAR 22 | |
| 27 | SPINDLE | |
| 28 | PIN 5 | |
| 29 | THIN WASHER 15 | |
| 30 | INTERNAL GEAR 51 | |
| 31 | O RING 48 | |
| 32 | O RING 40 | |
| 33 | BEARING BOX COMPLETE | |
| 35 | HOUSING SET | |
| C10 | RUBBER PIN 6 | |
| C20 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 1 | |
| 39 | TAPPING SCREW PT 2X6 | |
| 40 | FLAT HEAD SCREW M3X6 | |
| 41 | CONTROLLER | |
| D10 | INC. 8 | |
| A01 | #ИМЯ? | |
| A02 | HOOK | |
| A03B | BATTERY COVER | |
| A03C | BATTERY COVER | |
| A04B | DC18RC FAST CHARGER | |
| D10 | COMPO-PARTS | |
| A04C | DC18RC FAST CHARGER | |
| D10 | COMPO-PARTS | |
| A05B | BATTERY BL1830B SET | |
| A05C | BATTERY BL1850B SET | |
| A06B | PLASTIC CARRYING CASE COMPLETE | |
| C10 | LATCH | |
| A06C | PLASTIC CARRYING CASE COMPLETE | |
| C10 |  |
LATCH |
| A06D |  |
CONNECTOR PLASTIC CASE (TYPE2) |
| C10 |  |
LATCH |
| A07D |  |
INNER TRAY |
| A08D |  |
DTD153ZJ INDICATION LABEL |
| A09D |  |
DTD153ZJ PLASTIC CASE LABEL |
