HP 332 D

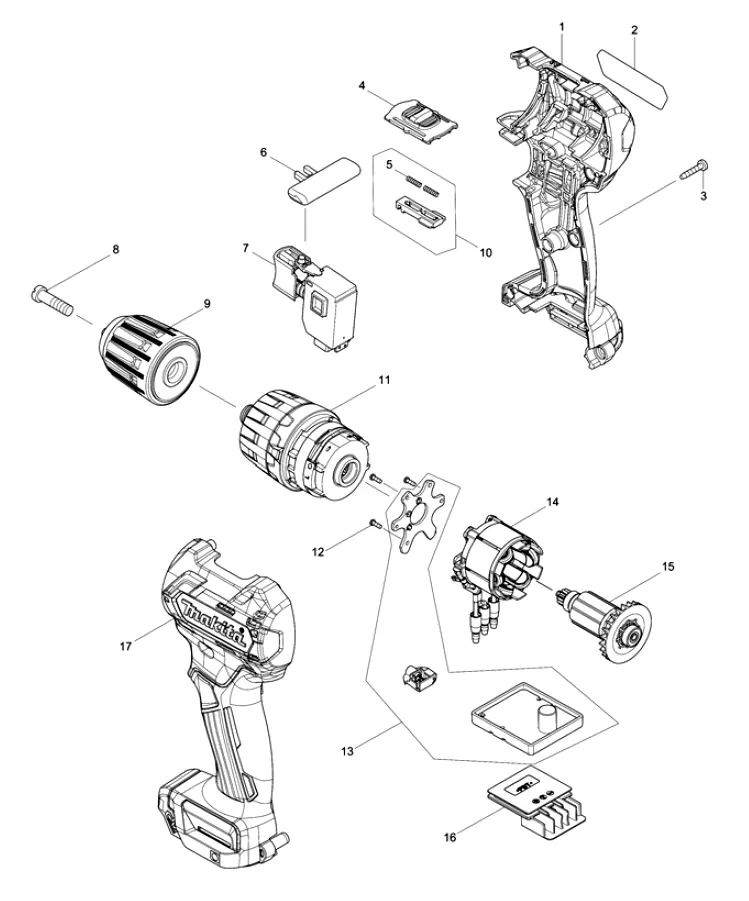

HP 332 D
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 17 | |
| 2 | HP332D NAME PLATE | |
| 002-1 | HP332D NAME PLATE | |
| 3 | Самонарезающий винт 3X16 | |
| 4 | SPEED CHANGE LEVER | |
| 5 | Компрессионная пружина 2 | |
| 6 | Рычаг переключения для BTD140/ | |
| 7 | Выключатель | |
| 8 | Винт с плоской головкой M6X22 | |
| 9 | KEYLESS DRILL CHUCK 10 | |
| 10 | CHANGE LEVER ASS\\\'Y INC. 5 | |
| 11 | GEAR ASSEMBLY | |
| 011-1 | GEAR ASSEMBLY | |
| 011-2 | GEAR ASSEMBLY | |
| 12 | TAPPING SCREW PT 2X6 | |
| 13 | CONTROLLER | |
| 013-1 | CONTROLLER | |
| C10 | LED CIRCUIT | |
| 14 | STATOR | |
| 15 | ROTOR | |
| 015-1 | ROTOR | |
| 16 | TERMINAL | |
| 17 | HOUSING SET INC. 1 | |
| A01 | Винт (+) M4X12 | |
| A02 | HOOK | |
| A03 | BIT 2-50 | |
| A04B | BATTERY COVER | |
| A04C | BATTERY COVER | |
| A05B | DC10WC BATTERY CHARGER COMPO-PARTS | |
| A05C | DC10WC BATTERY CHARGER COMPO-PARTS | |
| A05-1B | DC10WD BATTERY CHARGER COMPO-PARTS | |
| A05-1C | DC10WD BATTERY CHARGER COMPO-PARTS | |
| A06B | BATTERY BL1020B SET | |
| A06C | BATTERY BL1040B SET | |
| A06-1B | BATTERY BL1021B SET | |
| A06-1C | BATTERY BL1041B SET | |
| A07B | PLASTIC CARRYING CASE | |
| C10 | Замок чемодана (пластик) | |
| A07C | PLASTIC CARRYING CASE | |
| C10 | Замок чемодана (пластик) |
