BUC 122

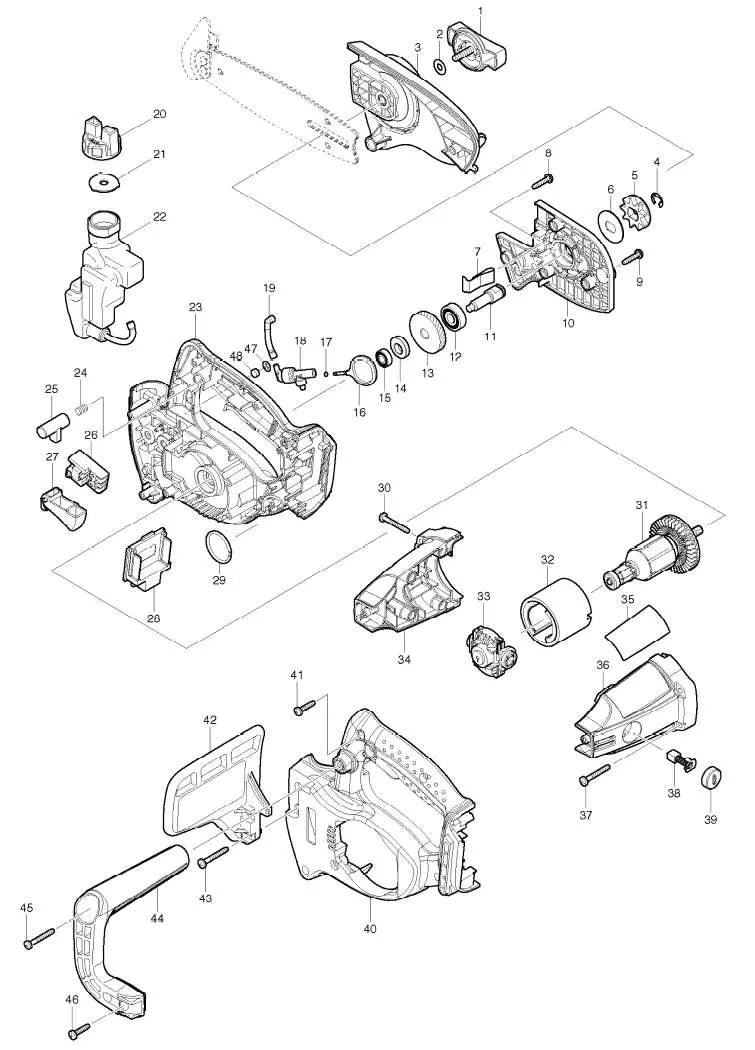

BUC 122
| П-п | Арт | Название |
|---|---|---|
| 1 | KNOB COMP BUC121/122 | |
| 2 | *BLUE WASHER 6 10PK | |
| 3 | SPROCKET COVER COMP BUC121/122 | |
| 4 | *EXT E-RING JIS JE-8 10PK | |
| 5 | SPROCKET 9 BUC121/122 | |
| 6 | LOCK WASHER 12 BUC121/122 | |
| 7 | LEAF SPRING BUC121/122 | |
| 8 | *PT SCREW 4X18 10PK KP0810C | |
| 9 | *PT SCREW 4X18 10PK KP0810C | |
| 10 | BEARING HOUSING BUC121/122 | |
| 11 | SPINDLE BUC121/122 | |
| 12 | BALL BEARING 609LLB BUC121/122 | |
| 13 | HELICAL GEAR 50 BUC121/122 | |
| 14 | CAM BUC121/122 | |
| 15 | BALL BEARING 696ZZ PC5000/01C | |
| 16 | CRANK BUC121/122 | |
| 17 | O RING 1.5 BUC121/122 | |
| 18 | OIL PUMP COMP BUC121/122 | |
| 19 | CONNECTOR BUC121/122 | |
| 20 | TANK CAP COMP BUC121/122/250 | |
| 21 | PACKING | |
| 22 | OIL TANK COMP BUC121/122 | |
| 23 | HANDLE SET BUC122 | |
| 24 | *COMPRESSION SPRING 6 10PK | |
| 25 | LOCK OFF BUTTON BUC121/122 | |
| 26 | SWITCH TG72BD BUC122/BSS501 | |
| 27 | SWITCH LEVER BUC121/122/250 | |
| 28 | TERMINAL BTM50/BHS630/BDA351 | |
| 29 | RING 30 BUC121/122/250 | |
| 30 | *PT SCREW 4X18 10PK KP0810C | |
| 31 | ARMATURE BUC122 | |
| 32 | YOKE UNIT 6317-47D BUC121/122 | |
| 33 | ENDBELL COMP BUC121/122 | |
| 34 | MOTOR HOUSING COMP BUC121/122 | |
| 35 | NAME PLATE BUC122 | |
| 36 | MOTOR HOUSING COMP BUC121/122 | |
| 37 | *PT SCREW 4X30 10PK | |
| 38 | CARBON BRUSH SET CB-430 | |
| 39 | HOLDER CAP BUC121/122 | |
| 40 | HANDLE SET BUC122 | |
| 41 | *PT SCREW 4X18 10PK KP0810C | |
| 42 | FRONT HAND GUARD COMP BUC121 | |
| 43 | *PT SCREW 4X30 10PK | |
| 44 | FRONT HANDLE BUC121/122 | |
| 45 | *PT SCREW 4X30 10PK | |
| 46 | *PT SCREW 4X18 10PK KP0810C | |
| 47 | PUSH NUT 8 BUC121/22/UC4020A | |
| 48 | FILTER BUC121/122/UC4020A/3520 |
