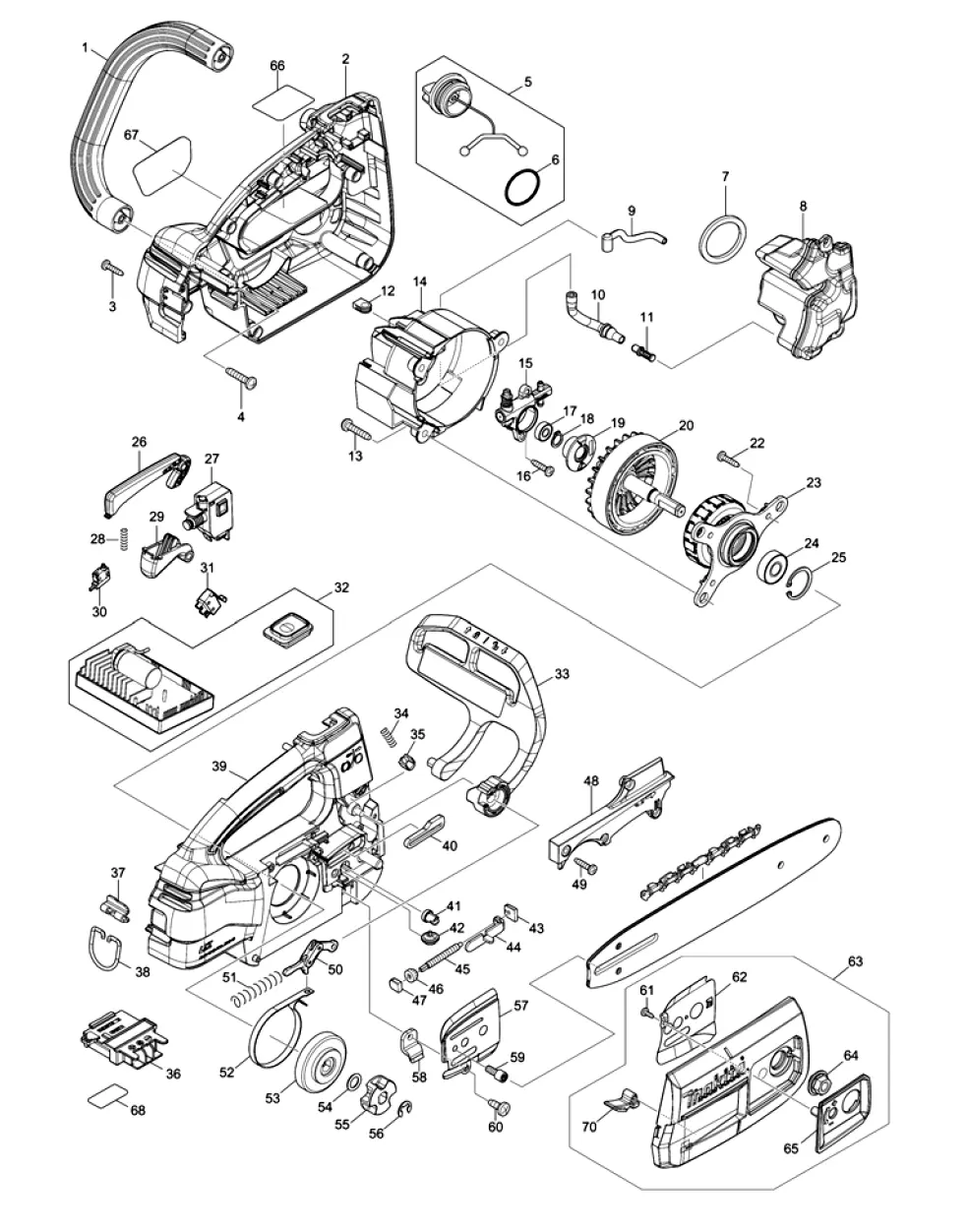

DUC 204
DUC 204
| П-п | Арт | Название |
|---|---|---|
| 1 | SIDE HANDLE | |
| 2 | HOUSING SET | |
| С10 | Резиновая шпилькаб INC. 39 | |
| 3 | Самонарезающий винт 4x18 | |
| 4 | Самонарез. винт, фланец РТ5Х25 | |
| 5 | TANK CAP COMPLETE INC. 6 | |
| 6 | о-ring 25 | |
| 7 | Прокладка резина | |
| 8 | OIL TANK COMPLETE | |
| 9 | CONNECTOR A | |
| 10 | CONNECTOR В | |
| 11 | Фильтр BUC250 | |
| 12 | GROMMET | |
| 13 | Самонарез. винт, фланец РТ5Х25 | |
| 14 | MOTOR HOUSING | |
| 15 | OIL PUMP COMPLETE | |
| 16 | Самонарезающий винт 4x18 | |
| 17 | Подшипник 696ZZ | |
| 18 | Стопорное кольцо S-10 HR3000C/ | |
| 19 | WORM GEAR | |
| 20 | ROTOR | |
| 22 | Самонарезающий винт 4x18 | |
| 23 | STATOR COMPLETE | |
| 24 | Подшипник 10/26 | |
| 25 | Стопорное кольцо R-26 GA5030 | |
| 26 | CATCH LEVER | |
| 27 | SWITCH C3JW-6BM-P | |
| 28 | COMPRESSION SPRING 4 | |
| 29 | SWITCH LEVER | |
| 30 | SWITCH UNIT | |
| 31 | SWITCH UNIT | |
| 32 | CONTROLLER COMPLETE | |
| С10 | SWITCH LABEL | |
| 032-1 | CONTROLLER COMPLETE | |
| С10 | SWITCH LABEL | |
| 33 | FRONT HAND GUARD COMPLETE | |
| С10 | CAUTION LABEL | |
| 34 | COMPRESSION SPRING 3 | |
| 35 | HAND GUARD GUIDE | |
| 36 | TERMINAL | |
| 37 | HOOK SUPPORT | |
| 38 | HOOK | |
| 39 | HOUSING SET | |
| С10 | Резиновая шпилькаб INC. 2 | |
| 40 | GROMET | |
| 41 | DRIVE GEAR | |
| 42 | STRAIGHT BEVEL GEAR 14 | |
| 43 | CLAMP SCREW | |
| 44 | TENSION SLIDE | |
| 044-1 | TENSION SLIDE | |
| 45 | ADJUST SCREW | |
| 46 | Коническая спирал, шестерня 14 | |
| 47 | CLAMP SCREW | |
| 48 | HOUSING R COVER | |
| 49 | Самонарезающий винт 4x18 | |
| 50 | LINK PLATE COMPLETE | |
| 51 | COMPRESSION SPRING 7 | |
| 52 | BRAKE BAND | |
| 53 | BRAKE DRUM COMPLETE | |
| 54 | 0 RING 10 | |
| 55 | SPROCKET 6 SET | |
| 56 | Стопорное кольцо E-7 | |
| 57 | GUIDE PLATE L | |
| 057-1 | GUIDE PLATE L | |
| 58 | CHAIN CATCHER | |
| 59 | H.L. SOCKET HEAD BOLT M5X12 | |
| 60 | Самонарезающий в и н т к UC3520A/ | |
| 61 | Самонарез винт зажимной РТЗХ10 | |
| 62 | GUIDE PLATE R | |
| 062-1 | GUIDE PLATE R | |
| 63 | SPROCKET COVER ASS’Y INC. 61,62,64,65,70 | |
| 063-1 | SPROCKET COVER ASS’Y INC. 61,62,64,65,70,71 | |
| 063-2 | SPROCKET COVER ASS’Y INC. 61,62,64,65,70,71 | |
| 063-3 | SPROCKET COVER ASS’Y INC. 61,62,64,65,70,71 | |
| 64 | FRANGE NUT COMPLETE | |
| 064-1 | FLANGE NUT COMPLETE | |
| 65 | NUT COVER | |
| 66 | DUC204 NAME PLATE | |
| 67 | DUC204 MODEL NO. LABEL | |
| 68 | DUC204 SERIAL NO. LABEL | |
| 70 | CHIP GUIDE | |
| 71 | SPROCKET COVER | |
| 071-1 | SPROCKET COVER | |
| А01 | GUIDE BAR 8 | |
| А02 | GUIDE BAR CASE | |
| А03 | SAW CHAIN SET | |
| А04 | Гаечный ключ 13-16 | |
| А09 | ACCESSORY BAG | |
| А10 | SAFETY GOGGLES SET | |
| Е01 | SOUND 103DB LABEL | |
| Е02 | CAUTION TAG |
