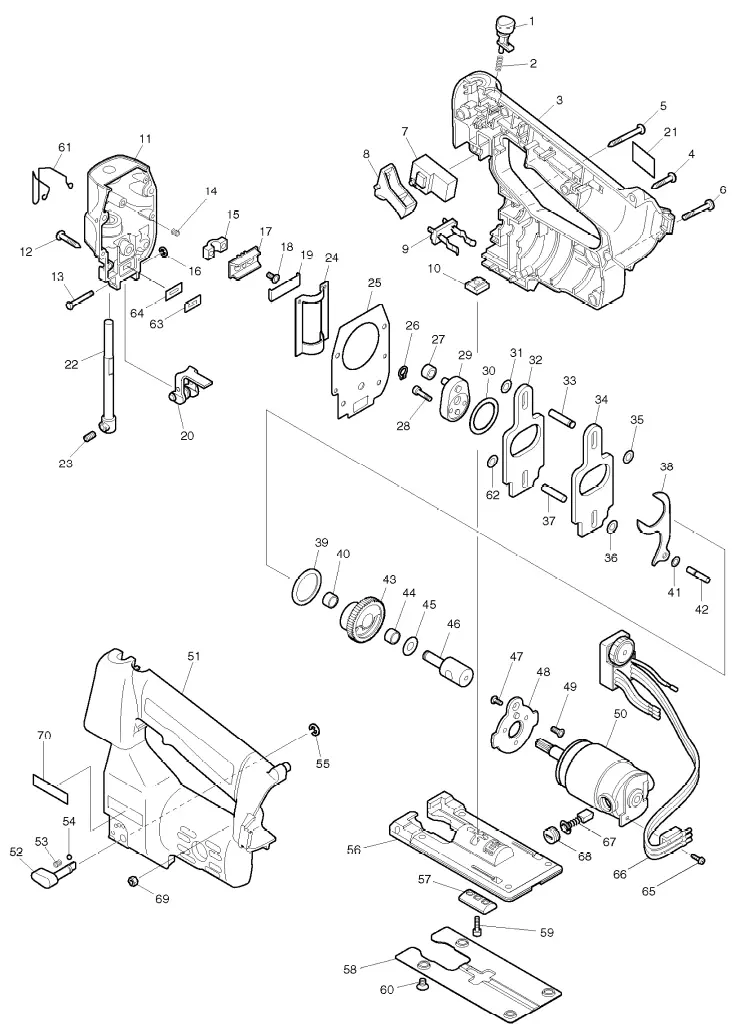

| П-п | Арт | Название |
|---|---|---|
| 001 | SWITCH BUTTON | |
| 002 | COMPRESSION SPRING 4 | |
| 003 | HOUSING SET | |
| INC. 51,69,70 | ||
| 004 | TAPPING SCREW 4X18 | |
| 005 | TAPPING SCREW 4X30 | |
| 006 | PAN HEAD SCREW M4X25 | |
| 007 | SWITCH TG73BD | |
| 008 | SWITCH LEVER | |
| 009 | BATTERY HOLDER | |
| 010 | HOLDER | |
| 011 | GEAR HOUSING COVER COMPLETE | |
| 012 | TAPPING SCREW 4X18 | |
| 013 | PIN 4 | |
| 014 | COMPRESSION SPRING 4 | |
| 015 | HOLDER | |
| 016 | STOP RING E-3 | |
| 017 | SLIDER | |
| 018 | COUNTERSUNK HEAD SCREW M4X10 | |
| 019 | THRUST PLATE | |
| 020 | RETAINER COMPLETE | |
| 021 | NAME PLATE 4331D | |
| 022 | ROD | |
| 023 | H.S.SET SCREW(CUP POINT) M6X8 | |
| 024 | SLIDE PLATE | |
| 025 | GASKET | |
| 026 | RETAINING RING S-8 | |
| 027 | NEEDLE BEARING 607 | |
| 028 | HEX. SOCKET HEAD BOLT M4X16 | |
| 029 | CRANK COMPLETE | |
| 030 | FLAT WASHER 26 | |
| 031 | FLAT WASHER 6 | |
| 032 | BALANCE PLATE | |
| 033 | PIN 6 | |
| 034 | BALANCE PLATE | |
| 035 | FLAT WASHER 6 | |
| 036 | FLAT WASHER 6 | |
| 037 | PIN 6 | |
| 038 | PUSH PLATE | |
| 039 | FLAT WASHER 26 | |
| 040 | NEEDLE BEARING 810 | |
| 041 | FLAT WASHER 5 | |
| 042 | PIN 5 | |
| 043 | HELICAL GEAR 51 | |
| 044 | NEEDLE BEARING 810 | |
| 045 | FLAT WASHER 8 | |
| 046 |  |
PIN 8 |
| 047 |  |
TAPPING SCREW ST 4X8 |
| 048 |  |
MOTOR BRACKET |
| 049 |  |
COUNTERSUNK HEAD SCREW M4X10 |
| 050 |  |
DC MOTOR 12V |
| INC. 67,68 |  |
|
| 051 |  |
HOUSING SET |
| INC. 3,69,70 |  |
|
| 052 |  |
LEVER 17 |
| 053 |  |
COMPRESSION SPRING 4 |
| 054 |  |
STEEL BALL 4 |
| 055 |  |
STOP RING E-5 |
| 056 |  |
BASE |
| 057 |  |
CLAMP PLATE |
| 058 |  |
BASE PLATE |
| 059 |  |
HEX. SOCKET HEAD BOLT M4X16 |
| 060 |  |
HEX. SOCKET HEAD BOLT M5X8 |
| 061 |  |
SAFETY WIRE |
| 062 |  |
FLAT WASHER 6 |
| 063 |  |
SEAL PLATE |
| 064 |  |
FELT 10-20 |
| 065 |  |
PAN HEAD SCREW M3X8 |
| 066 |  |
CONTROLLER |
| 067 |  |
CARBON BRUSH CB-430 |
| 068 |  |
BRUSH HOLDER CAP |
| 069 |  |
HEX. NUT M4 |
| 070 |  |
MAKITA LABEL |
| A02 |  |
BATTERY COVER |
| A03 |  |
ANTI-SPLINTERING DEVICE |
| A04 |  |
HEX. WRENCH 3 |
| A05 |  |
JIGSAW BLADE NO.B22 |
| A06 |  |
JIGSAW BLADE NO.B10 |
| A07 |  |
JIGSAW BLADE NO.BR13 |
| A08 |  |
PLASTIC CARRYING CASE |
| A09 |  |
NI-MH(2.6A) BATTERY 1234 SET |
