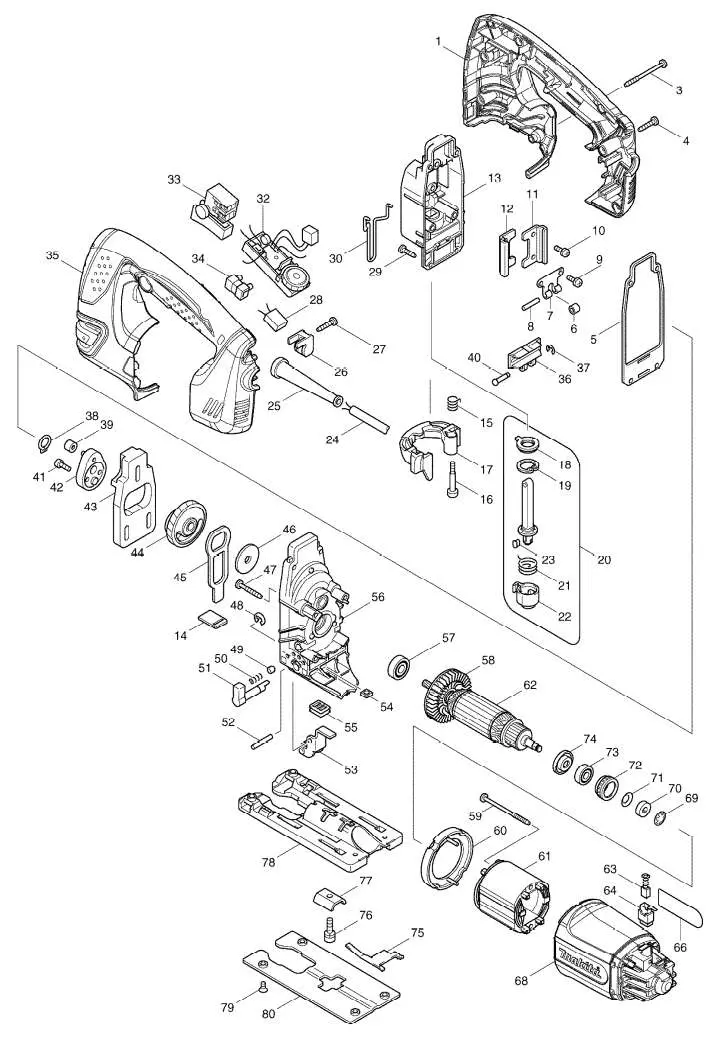

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HANDLE SET INC. 35 |
| 2 |  |
TAPPING SCREW 4X18 |
| 3 |  |
TAPPING SCREW 4X50 |
| 4 |  |
TAPPING SCREW 4X18 |
| 5 |  |
PACKING |
| 6 |  |
PLANE BEARING 4 |
| 7 |  |
LEAF SPRING |
| 8 |  |
PIN 4 |
| 9 |  |
PAN HEAD SCREW M4X10 |
| 10 |  |
PAN HEAD SCREW M4X10 |
| 11 |  |
LINEAR GUIDE |
| 12 |  |
LINEAR GUIDE |
| 13 |  |
GEAR HOUSING COVER COMPLETE |
| 14 |  |
SEAL PLATE |
| 15 |  |
TORSION SPRING 6 |
| 16 |  |
+ PAN HEAD SCREW M4 |
| 17 |  |
TOOL OPENER |
| 18 |  |
DUST COVER |
| 19 |  |
RETAINING RING R-18 |
| 20 |  |
ROD ASS\\\\\'Y INC. 18,19,21-23 |
| 21 |  |
TORSION SPRING 15 |
| 22 |  |
BLADE HOLDER |
| 23 |  |
PUSH PIN |
| 24 |  |
POWER SUPPLY CORD 1.0-2-2.5 |
| 25 |  |
CORD GUARD 8 |
| 26 |  |
STRAIN RELIEF |
| 27 |  |
TAPPING SCREW 4X18 |
| 28 |  |
NOISE SUPPRESSOR |
| 29 |  |
TAPPING SCREW CT 4X16 |
| 30 |  |
SAFETY WIRE |
| 32 |  |
CONTROLLER |
| 33 |  |
SWITCH SGEL115CDY-8 |
| 34 |  |
TERMINAL BLOCK 1P |
| 35 |  |
HANDLE SET INC. 1 |
| 36 |  |
SLIDER |
| 37 |  |
STOP RING E-3 |
| 38 |  |
RETAINING RING S-8 |
| 39 |  |
NEEDLE BEARING 407 |
| 40 | PIN 4 | |
| 41 | HEX. SOCKET HEAD BOLT M4X12 | |
| 42 | CRANK COMPLETE | |
| 43 | BALANCE PLATE | |
| 44 | GEAR COMPLETE | |
| 45 | PUSH PLATE | |
| 46 | FLAT WASHER 8 | |
| 47 |  |
TAPPING SCREW 4X30 |
| 48 |  |
STOP RING E-5 |
| 49 |  |
CAP 5 |
| 50 |  |
COMPRESSION SPRING 3 |
| 51 |  |
LEVER 17 |
| 52 |  |
PIN 4 |
| 53 |  |
RETAINER COMPLETE |
| 54 |  |
SQUARE NUT M5-8 |
| 55 |  |
DUST SEAL |
| 56 |  |
GEAR HOUSING COMPLETE |
| 57 |  |
BALL BEARING 608DDW |
| 58 |  |
FAN 52 |
| 59 |  |
TAPPING SCREW 4X60 |
| 60 |  |
BAFFLE PLATE |
| 61 |  |
FIELD ASS\\\\\'Y 220-240V |
| 62 |  |
ARMATURE ASS\\\\\'Y 220-240V INC. 57,58,73,74 |
| 63 |  |
CARBON BRUSH CB-419 |
| 64 |  |
BRUSH HOLDER |
| 66 |  |
4350CT NAME PLATE |
| 68 |  |
MOTOR HOUSING |
| 69 |  |
SELF LOCK 6 |
| 70 |  |
MAGNET SLEEVE |
| 71 |  |
WAVE WASHER 6 |
| 72 |  |
RUBBER RING 19 |
| 73 |  |
BALL BEARING 607LLB |
| 74 |  |
INSULATION WASHER |
| 75 |  |
LEAF SPRING |
| 76 |  |
HEX. SOCKET HEAD BOLT M5X18 |
| 77 |  |
CRANK PLATE |
| 78 |  |
BASE |
| 79 |  |
COUNTERSUNK HEAD SCREW M4X8 |
| 80 |  |
BASE PLATE |
| A01 |  |
ANTI-SPLINTERING DEVICE |
| A02 |  |
COVER PLATE |
| A03 |  |
JIGSAW BLADE NO.B22 |
| A04 |  |
JIGSAW BLADE NO.B10 |
| A05 |  |
JIGSAW BLADE NO.BR13 |
| A06 |  |
HEX. WRENCH 4 |
| A07 |  |
PLASTIC CARRYING CASE |
| A08 |  |
DUST NOZZLE |
