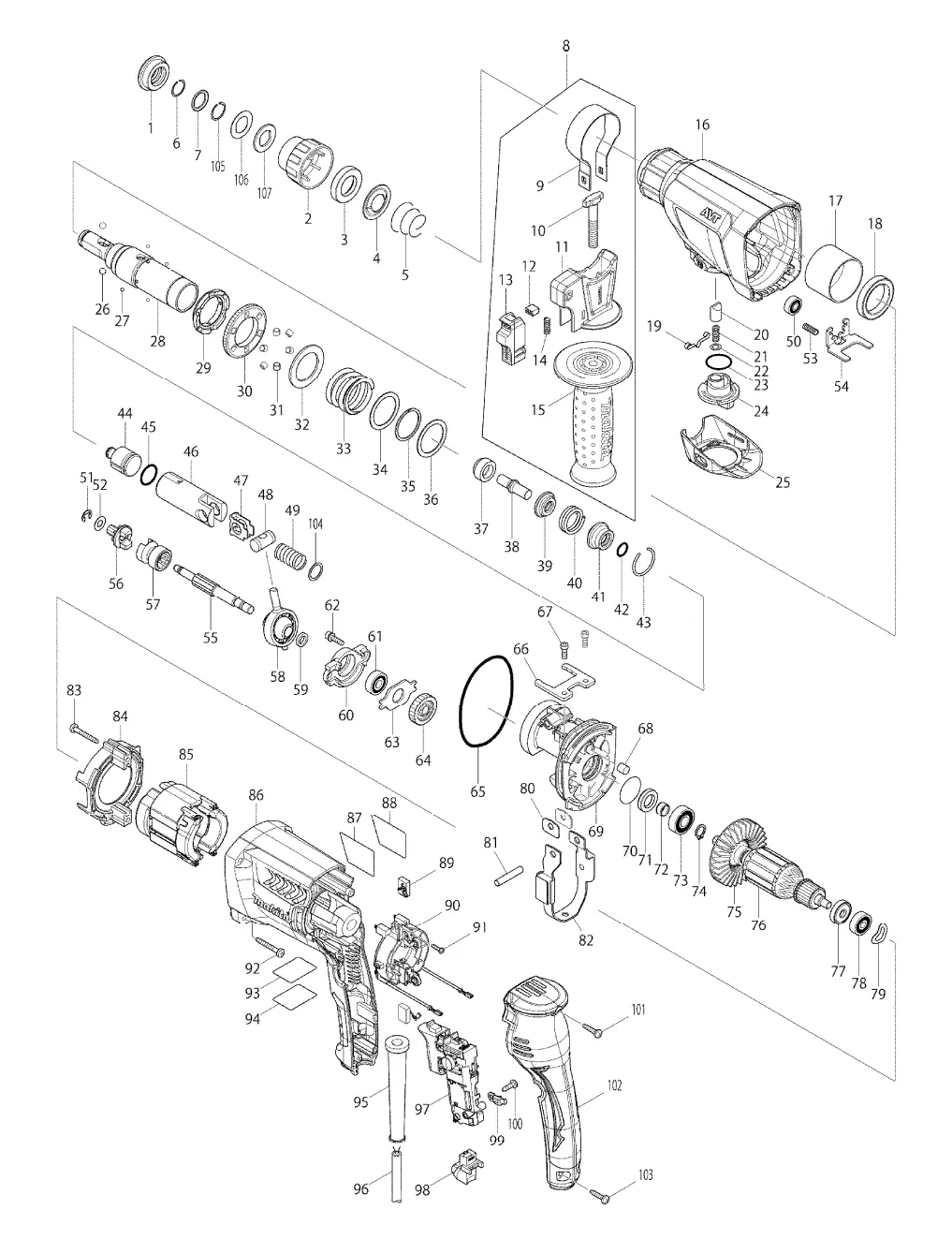

HR 2611F
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
CAP 35 |
| 2 |  |
CHUCK COVER |
| 3 |  |
RING 21 |
| 4 |  |
GUIDE WASHER |
| 5 |  |
CONICAL COMP. SPRING 21-29 |
| 6 |  |
RING SPRING 14 |
| 7 |  |
WASHER 16 |
| 8 |  |
GRIP ASSEMBLY INC.9-15 |
| 9 |  |
GRIP SPRING 50 |
| 10 |  |
SQUARE BOLT M8X50 |
| 11 |  |
GRIP BASE |
| 12 |  |
RACK |
| 13 |  |
LOCK BUTTON COMPLETE (NEW) |
| 14 |  |
COMPRESSION SPRING 4 |
| 15 |  |
GRIP 36 COMPLETE |
| 16 |  |
GEAR HOUSING COMPLETE |
| 17 |  |
CUP SLEEVE |
| 18 |  |
BALL BEARING 6806LLU |
| 19 |  |
LEAF SPRING |
| 20 |  |
PUSH CORN |
| 21 |  |
COMPRESSION SPRING 5 |
| 22 |  |
THIN WASHER 6 |
| 23 |  |
O RING 21 |
| 24 |  |
CHANGE LEVER A |
| 25 |  |
CHANGE LEVER COVER A |
| 26 |  |
STEEL BALL 7.0 |
| 27 |  |
STEEL BALL 3 |
| 28 |  |
TOOL HOLDER COMPLETE |
| 29 |  |
DRIVING FLANGE |
| 30 |  |
SPUR GEAR 51 |
| 31 |  |
PIN 6 |
| 32 |  |
FLAT WASHER 30 |
| 33 |  |
COMPRESSION SPRING 31 |
| 34 |  |
FLAT WASHER 30 |
| 35 |  |
SPIRO LOCK WASHER 30 |
| 36 |  |
FLAT WASHER 30 |
| 37 |  |
SLEEVE 9B |
| 38 |  |
IMPACT BOLT A |
| 39 |  |
WASHER 10 |
| 40 |  |
COMPRESSION SPRING 20 |
| 41 |  |
O-RING CASE B |
| 42 |  |
O RING 9 |
| 43 |  |
RING SPRING 28 |
| 44 |  |
STRIKER |
| 45 |  |
O RING 17.5 |
| 46 |  |
PISTON CYLINDER |
| 47 |  |
GUIDE PLATE |
| 48 |  |
PISTON JOINT |
| 49 |  |
COMPRESSION SPRING 14 |
| 50 |  |
BALL BEARING 606ZZ |
| 51 |  |
STOP RING EXT U-6 (NEW) |
| 52 |  |
FLAT WASHER 7 (NEW) |
| 53 | COMPRESSION SPRING 4 | |
| 54 | LOCK PLATE | |
| 55 | CAM SHAFT | |
| 56 | SPUR GEAR 10 | |
| 57 | CLUTCH CAM A | |
| 58 | SWASH BEARING 10 | |
| 59 | FLAT WASHER 8 | |
| 60 | BEARING BOX | |
| 61 | BALL BEARING 608ZZ | |
| 62 | HEX. SOCKET HEAD BOLT M4X16 | |
| 63 | BEARING RETAINER | |
| 64 | HELICAL GEAR 26 | |
| 65 | O-RING 68 | |
| 66 | PLATE | |
| 67 | HEX. SOCKET HEAD BOLT M4X12 | |
| 68 | FELT | |
| 69 | INNER HOUSING COMPLETE | |
| 70 | O RING 26 | |
| 71 | OIL SEAL 12 (NEW) | |
| 72 | SLEEVE 9 | |
| 73 | BALL BEARING 6000LLB | |
| 74 | RETAINING RING S-10 | |
| 75 | FAN 65 | |
| 76 | ARMATURE ASSEMBLY 240V INC. 72-75,77,78 | |
| 77 | INSULATION WASHER | |
| 78 | BALL BEARING 627DDW | |
| 79 | WAVE WASHER 15 | |
| 80 | WEIGHT HOLDER GUIDE | |
| 81 | PIN 6 | |
| 82 | COUNTER WEIGHT | |
| 83 | TAPPING SCREW 4X30 | |
| 84 | BAFFLE PLATE | |
| 85 | FIELD 240V | |
| 86 | MOTOR HOUSING | |
| 87 | HR2611F NAME PLATE | |
| 88 | CLEAR LABEL | |
| 89 | CARBON BRUSH CB-325 | |
| 90 | BRUSH HOLDER UNIT | |
| 91 | TAPPING SCREW 3X12 | |
| 92 | TAPPING SCREW 4X30 | |
| 93 | HR2611F SERIAL NO.LABEL | |
| 94 | CLEAR LABEL | |
| 95 | CORD GUARD 10 | |
| 96 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 97 | SWITCH | |
| 98 | LIGHT CIRCUIT | |
| 99 | STRAIN RELIEF | |
| 100 | TAPPING SCREW 4X14 | |
| 101 | TAPPING SCREW 4X18 | |
| 102 | HANDLE COVER | |
| 103 | TAPPING SCREW 4X18 | |
| 104 | FLAT WASHER 14 | |
| 105 | RING SPRING 15 | |
| 106 | FLAT WASHER 17 | |
| 107 | RUBBER WASHER 16 | |
| A01 | DEPTH GAUGE | |
| A02 | PLASTIC CASE COMPLETE | |
| A03 | HR2611FX5 PLASTIC CASE LABEL | |
| A04 | DUSTCUP SET | |
| A05 | SDS-PLUS BIT SET |
