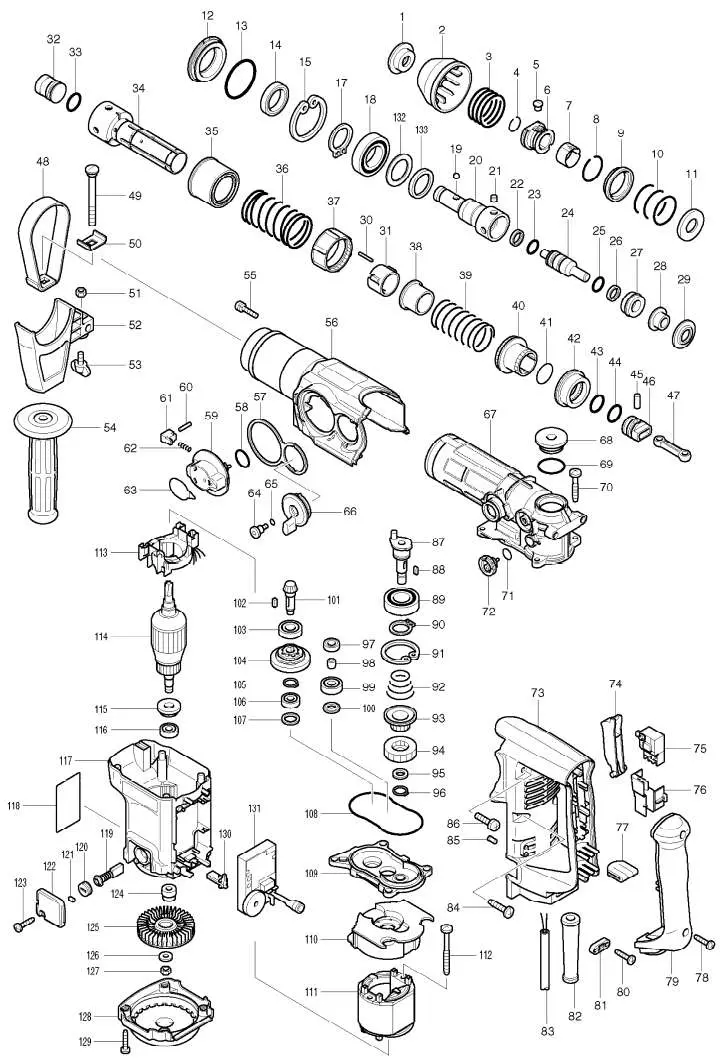

HR 3000 C
| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 40 | |
| 2 | CHUCK COVER | |
| 3 | COMPRESSION SPRING 38 | |
| 4 | RING SPRING 17 | |
| 5 | PIN 8 | |
| 6 | CHUCK RING | |
| 7 | LEAF SPRING 26 | |
| 8 | RING SPRING 30.5 | |
| 9 | SPRING GUIDE | |
| 10 | COMPRESSION SPRING 35 | |
| 11 | GUIDE WASHER | |
| 12 | SEAL CASE | |
| 13 | O RING 46 | |
| 14 | OIL SEAL 28 | |
| 15 | RETAINING RING R-52 | |
| 17 | RETAINING RING S-28 | |
| 18 | BALL BEARING 60/28LLU | |
| 19 | STEEL BALL 7.0 | |
| 20 | TOOL HOLDER | |
| 21 | PIN 8 | |
| 22 | FLUORO CARBON RESIN RING 20 | |
| 23 | O RING 15 | |
| 24 | IMPACT BOLT | |
| 25 | O RING 15 | |
| 26 | FLUORO CARBON RESIN RING 20 | |
| 27 | RUBBER RING 13 | |
| 28 | SLEEVE 12 | |
| 29 | WASHER 19 | |
| 30 | PIN 2.5 | |
| 31 | PIN HOLDER | |
| 32 | STRIKER | |
| 33 | O RING 18 | |
| 34 | CYLINDER 25 | |
| 35 | SLEEVE 50 | |
| 36 | COMPRESSION SPRING 40 | |
| 37 | LOCK SLEEVE | |
| 38 | RING 29 | |
| 39 | COMPRESSION SPRING 34 | |
| 40 | DRIVING SLEEVE | |
| 41 | O RING 26 | |
| 42 | SPIRAL BEVEL GEAR 37 | |
| 43 | O RING 18 | |
| 44 | O RING 18 | |
| 45 | PIN 7 | |
| 46 | PISTON | |
| 47 | ROD | |
| 48 | GRIP SPRING 63 | |
| 49 | CUP SQUARE NECK BOLT M8X80 | |
| 50 | PLATE | |
| 51 | HEX. NUT M6 | |
| 52 | SIDE GRIP BASE 63 | |
| 53 | SCREW M6X14 | |
| 54 | GRIP 36 COMPLETE | |
| 55 | PAN HEAD SCREW M4X12 | |
| 56 | CRANK HOUSING COVER COMPLETE | |
| 57 | DUSTPROOF WASHER | |
| 58 | O RING 20 | |
| 59 | CHANGE LEVER COMPLETE | |
| 60 | PIN 4 | |
| 61 | LOCK BUTTON | |
| 62 | COMPRESSION SPRING 2.4 | |
| 63 | INDICATION LABEL | |
| 64 | HEX. SOCKET FLAT HEAD SCREW M5 | |
| 65 | O RING 4 | |
| 66 | SHIFT LEVER COMPLETE | |
| 67 | CRANK HOUSING COMPLETE | |
| 68 | CRANK CAP | |
| 69 | O RING 30 | |
| 70 | TAPPING SCREW 5X30 | |
| 71 | O RING 10 | |
| 72 | SPUR GEAR 21 COMPLETE | |
| 73 | HANDLE | |
| 74 | SWITCH LEVER | |
| 75 |  |
SWITCH TG71B |
| 76 |  |
LEAD GUIDE |
| 77 |  |
SPONGE SHEET |
| 78 |  |
TAPPING SCREW 4X18 |
| 79 |  |
HANDLE COVER |
| 80 |  |
TAPPING SCREW 4X18 |
| 81 |  |
STRAIN RELIEF |
| 82 |  |
CORD GUARD 10 |
| 83 |  |
POWER SUPPLY CORD 1.5-2-4.0 |
| 84 |  |
TAPPING SCREW 5X20 |
| 85 |  |
ACRYLIC PIN 5 |
| 86 |  |
PAN HEAD SCREW M5X20 |
| 87 |  |
CRANK SHAFT |
| 88 |  |
KEY 4 |
| 89 |  |
BALL BEARING 6004LLU |
| 90 |  |
RETAINING RING S-20 |
| 91 |  |
RETAINING RING R-42 |
| 92 |  |
CONICAL COMP. SPRING 21-31 |
| 93 |  |
CLUTCH |
| 94 |  |
HELICAL GEAR 34 |
| 95 |  |
FLAT WASHER 10 |
| 96 |  |
RETAINING RING S-10 |
| 97 |  |
OIL SEAL 10 |
| 98 |  |
SLEEVE 10 |
| 99 |  |
BALL BEARING 6000LU |
| 100 |  |
FLAT WASHER 10 |
| 101 |  |
SPIRAL BEVEL GEAR 10 |
| 102 |  |
KEY 4 |
| 103 |  |
BALL BEARING 6001LLU |
| 104 |  |
TORQUE LIMITER COMPLETE |
| 105 |  |
RETAINING RING S-10 |
| 106 |  |
BALL BEARING 608LLU |
| 107 |  |
THIN WASHER 15 |
| 108 |  |
SEAL RING |
| 109 |  |
GEAR HOUSING COMPLETE |
| 110 |  |
BAFFLE PLATE |
| 111 |  |
FIELD 220-240V |
| 112 |  |
TAPPING SCREW 5X50 |
| 113 |  |
SUPPORT COMPLETE |
| 114 |  |
ARMATURE ASS\\\\\'Y 220-240V INC. 98,115,116 |
| 115 |  |
INSULATION WASHER |
| 116 |  |
BALL BEARING 608DDW |
| 117 |  |
MOTOR HOUSING COMPLETE |
| 118 |  |
NAME PLATE HR3000C |
| 119 |  |
CARBON BRUSH CB-327 |
| 120 |  |
BRUSH HOLDER CAP |
| 121 |  |
RUBBER PIN 4 |
| 122 |  |
BRUSH HOLDER COVER |
| 123 |  |
TAPPING SCREW 4X18 |
| 124 |  |
SHOULDER SLEEVE 7 |
| 125 |  |
FAN 70 |
| 126 | FLAT WASHER 6 | |
| 127 | HEX. NUT M6-10 | |
| 128 | REAR COVER | |
| 129 | TAPPING SCREW 4X18 | |
| 130 | FIX ROD | |
| 131 | CONTROLLER | |
| 132 | FLAT WASHER 28 | |
| 133 | URETHANE RING 28 | |
| 134 | FLAT WASHER 7 | |
| A01 | GREASE VESSEL SET | |
| A02 | DEPTH GAUGE | |
| A03 | PLASTIC CARRYING CASE | |
| B01 | GRIP 36 ASS\\\\\'Y INC. 48-54,A02 | |
| E01 | MAKITA LABEL |
