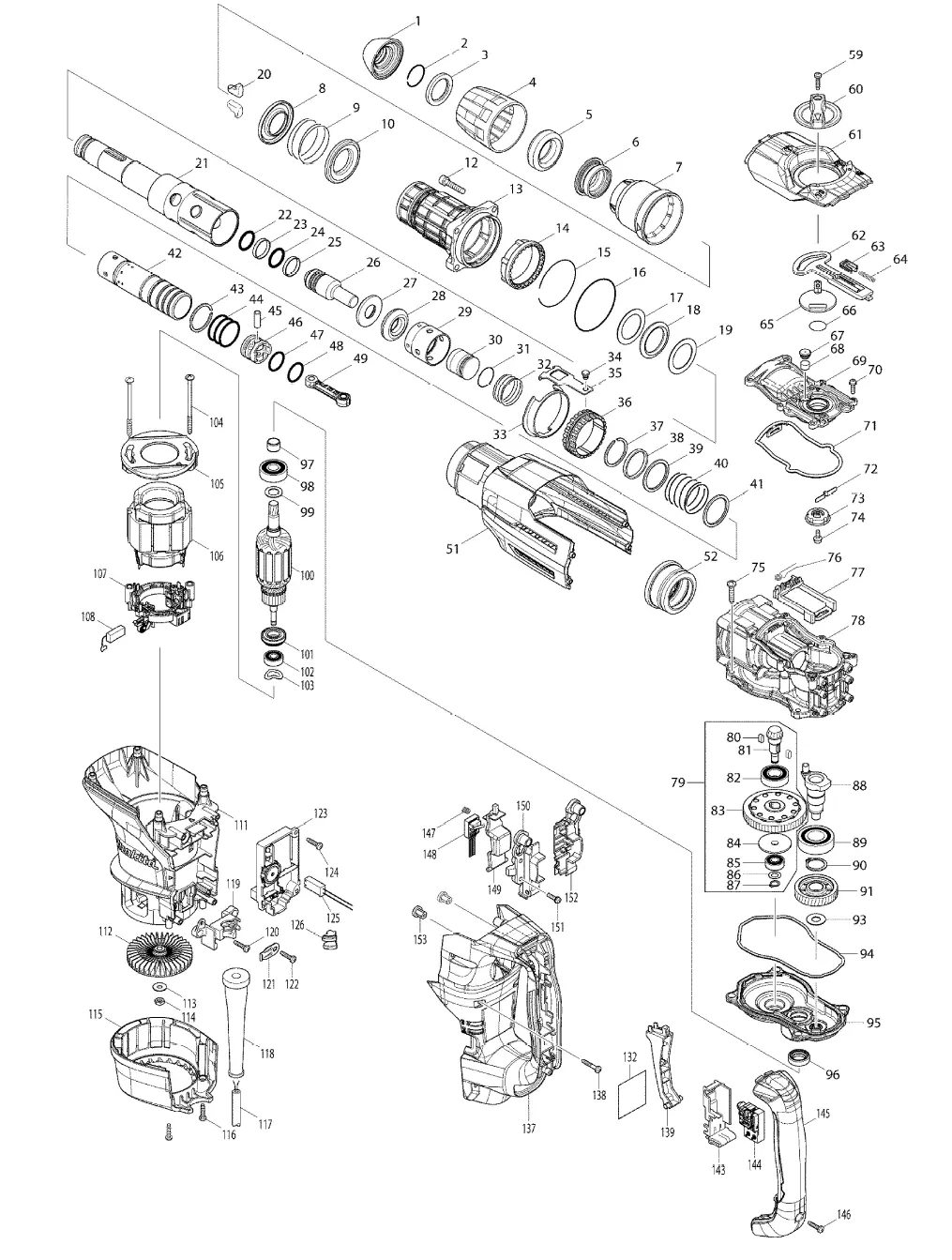

HR 4003 C

A B C D E F G H I J K L M N O P R S T U V W Y Z

П-п	Арт	Название
1		TOOL HOLDER CAP
2		RING SPRING 25
3		RING 28
4		CHUCK COVER
5		RUBBER RING 30
6		CHUCK RING
7		RELEASE COVER
8		SPRING GUIDE
9		COMPRESSION SPRING 46
10		SPRING GUIDE
12		HEX. SOCKET HEAD BOLT M6X30
13		BARREL COMPLETE
14		LOCK SLEEVE
15		RING SPRING 59
16		O RING 65
17		FLAT WASHER 32
18		RUBBER RING 32
19		FLAT WASHER 32
20		TOOL RETAINER
21		TOOL HOLDER
22		O RING 20
23		FLUORIDE RING 25
24		O RING 20
25		FLUORIDE RING 25
26		IMPACT BOLT
27		RING 17
28		RUBBER RING 18
29		SLIDE SLEEVE
30		STRIKER
31		O-RING 22
32		COMPRESSION SPRING 33
33		GUIDE RING
34		FLAT FILLISTER HEAD PIN 6
35		LINK PLATE
36		DRIVING SLEEVE
37		RETAINING RING (EXT) WR-32.5
38		RING 33
39		FLAT WASHER 33
40		COMPRESSION SPRING 34
41		FLAT WASHER 33
42		CYLINDER 28.5
43		RETAINING RING (EXT) WR-32.5
44		O RING 30
45		PIN 7
46		PISTON
47		O RING 21
48		O-RING 22
49		CONNECTING ROD
51		HOUSING COVER B COMPLETE
52		SPIRAL BEVEL GEAR 26
59		TAPPING SCREW 4X18
60		CHANGE LEVER
61		CRANK CAP COVER
62		CONTROL PLATE
63		SLIDE PLATE
64		COMPRESSION SPRING 4
65		CRANK LEVER
66		O RING 18
67		FILTER CAP
68		FILTER
69		CRANK CAP
70		PAN HEAD SCREW M4X16
71		SEAL RING B
72		LEAF SPRING
73		LINK LEVER
74		PAN HEAD SCREW M4X10
75		TAPPING SCREW 5X25
76		TORSION SPRING 7
77		LINK GUIDE
78		CRANK HOUSING B COMPLETE
79		TORQUE LIMITER ASSEMBLY INC. 80-87
80		KEY 4
81		SPIRAL BEVEL GEAR 7
82		BALL BEARING 6002LLU
83		TORQUE LIMITTER COMPLETE
84		SHOULDER WASHER 8
85		BALL BEARING 608DDW
86		FLAT WASHER 8
87		RETAINING RING S-8
88		CRANK SHAFT
89		BALL BEARING 6004LLU
90		RETAINING RING S-20
91		HELICAL GEAR 37
93		FLAT WASHER 10
94		SEAL RING A
95		GEAR HOUSING COMPLETE
96		OIL SEAL 15
97		SLEEVE 12
98		BALL BEARING 6201LLU
99		FLAT WASHER 12
100		ARMATURE ASS\\\'Y 220-240V INC. 97,98,99,101,102
101		INSULATION WASHER
102		BALL BEARING 608DDW
103		WAVE WASHER 15
104		TAPPING SCREW 5X80
105		BAFFLE PLATE
106		FIELD 220-240V
107		BRUSH HOLDE UNIT
108		CARBON BRUSH CB-350
111		MOTOR HOUSING
112		FAN 76
113		FLAT WASHER 6
114		HEX. NUT M6
115		REAR COVER
116		TAPPING SCREW 4X18
117		POWER SUPPLY CORD 1.5-2-4.0
118		CORD GUARD 10
119		CORD CLAMP BASE
120		TAPPING SCREW 4X18
121		STRAIN RELIEF
122		TAPPING SCREW 4X18
123		CONTROLLER
124		TAPPING SCREW 4X18
125		LEAD UNIT
126		LENS
132		HR4003C NAME PLATE
137		HANDLE B
138		TAPPING SCREW 4X25
139		SWITCH LEVER B
143		SWITCH HOLDER COMPLETE
144		SWITCH C3PA-1121
145		HANDLE COVER
146		TAPPING SCREW 4X18
147		COMPRESSION SPRING 6
148		SWITCH UNIT
149		SWITCH LEVER C
150		SWITCH CASE SET INC. 152
151		PAN HEAD SCREW M4X16
152		SWITCH CASE SET INC. 150
153		CAP 13
A01		SIDE GRIP ASSEMBLY
A02		SIDE HANDLE 73 SET
A03		GREASE VESSEL SET
A04		PLASTIC CASE SET
A05		DEPTH GAUGE
A06		CLOTH
