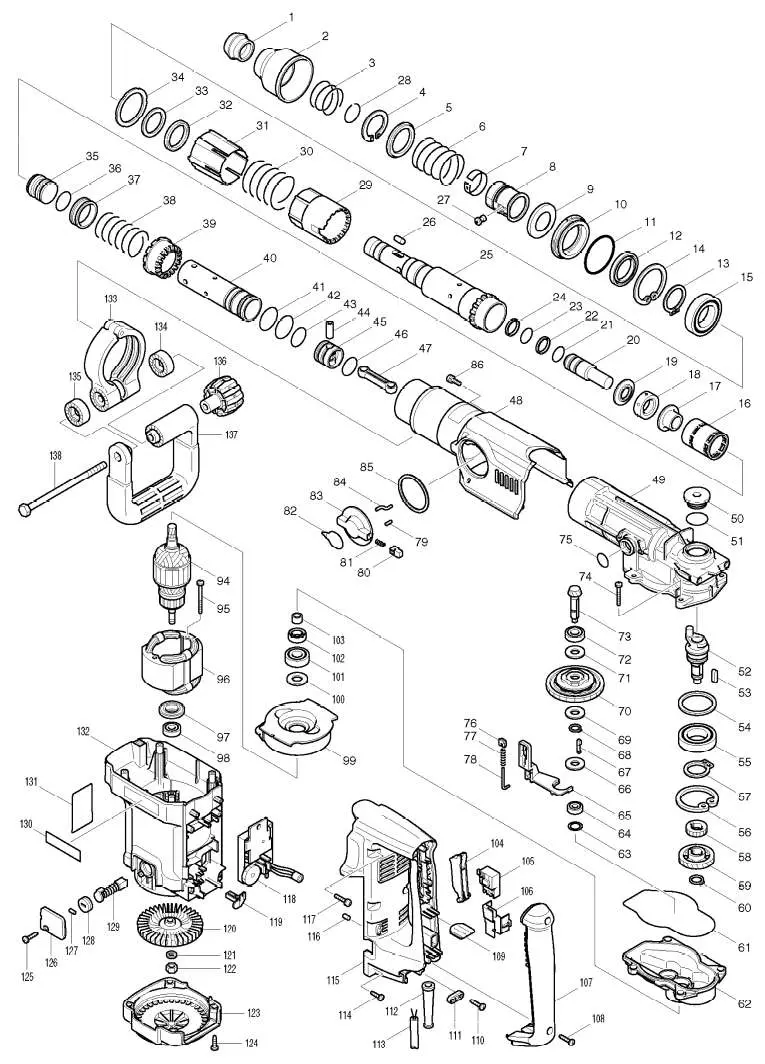

HR 4500 C
| П-п | Арт | Название |
|---|---|---|
| 1 | TOOL HOLDER CAP | |
| 2 | CHUCK COVER | |
| 3 | COMPRESSION SPRING 46 | |
| 4 | RETAINING RING WR-40 | |
| 5 | WASHER 40 | |
| 6 | COMPRESSION SPRING 50 | |
| 7 | LEAF SPRING 37 | |
| 8 | CHUCK RING | |
| 9 | CUP WASHER 32 | |
| 10 | SEAL CASE | |
| 11 | O RING 56 | |
| 12 | OIL SEAL 35 | |
| 13 | RETAINING RING S-35 | |
| 14 | RETAINING RING R-62 | |
| 15 | BALL BEARING 6007LLU | |
| 16 | SLIDE SLEEVE | |
| 17 | SLEEVE 19 | |
| 18 | RUBBER RING 22 | |
| 19 | WASHER 19 | |
| 20 | IMPACT BOLT | |
| 21 | O RING 20 | |
| 22 | FLUORIDE RING 25 | |
| 23 | O RING 20 | |
| 24 | FLUORIDE RING 25 | |
| 25 | TOOL HOLDER | |
| 26 | ROLLER 8 | |
| 27 | SHOULDER PIN 8 | |
| 28 | RING SPRING 25 | |
| 29 | LOCK SLEEVE A | |
| 30 | COMPRESSION SPRING 55 | |
| 31 | LOCK SLEEVE B | |
| 32 | URETHAN RING 35 | |
| 33 | FLAT WASHER 35 | |
| 34 | FLAT WASHER 49 | |
| 35 | STRIKER | |
| 36 | O RING 27 | |
| 37 | RING 38 | |
| 38 | COMPRESSION SPRING 39 | |
| 39 | SPIRAL BEVEL GEAR 36 | |
| 40 | CYLINDER 34 | |
| 41 | O RING 35 | |
| 42 | O RING 35 | |
| 43 | O RING 27 | |
| 44 | PIPE 10 | |
| 45 | PISTON | |
| 46 | O RING 27 | |
| 47 | ROD | |
| 48 | CRANK HOUSING COVER COMPLETE | |
| 49 | CRANK HOUSING COMPLETE | |
| 50 | CRANK CAP | |
| 51 | O RING 30 | |
| 52 | CRANK SHAFT | |
| 53 | KEY 5 | |
| 54 | FLAT WASHER 45 | |
| 55 | BALL BEARING 6006LLU | |
| 56 | RETAINING RING R-55 | |
| 57 | RETAINING RING S-30 | |
| 58 | SPUR GEAR 22 | |
| 59 | HELICAL GEAR 37 | |
| 60 | RETAINING RING S-16 | |
| 61 | SEAL RING | |
| 62 | GEAR HOUSING COMPLETE | |
| 63 |  |
THIN WASHER 15 |
| 64 |  |
BALL BEARING 608LLU |
| 65 |  |
CHANGE LINK |
| 66 |  |
FLAT WASHER 12 |
| 67 |  |
CHANGE KEY |
| 68 |  |
RETAINING RING S-12 |
| 69 |  |
FLAT WASHER 12 |
| 70 |  |
TORQUE LIMITER COMPLETE |
| 71 |  |
FLAT WASHER 12 |
| 72 |  |
BALL BEARING 6001LLU |
| 73 |  |
SPIRAL BEVEL GEAR 10 |
| 74 |  |
TAPPING SCREW 5X35 |
| 75 |  |
O RING 20 |
| 76 |  |
SLIDE PLATE |
| 77 |  |
COMPRESSION SPRING 3 |
| 78 |  |
GUIDE PIN 2 |
| 79 |  |
PIN 4 |
| 80 |  |
LOCK BUTTON |
| 81 |  |
COMPRESSION SPRING 2.4 |
| 82 |  |
INDICATION LABEL |
| 83 |  |
CHANGE LEVER |
| 84 |  |
CRANK PIN 4 |
| 85 |  |
DUSTPROOF WASHER 55 |
| 86 |  |
PAN HEAD SCREW M4X16 |
| 94 |  |
ARMATURE ASS\\\\\'Y 220-240V INC. 97,98,103 |
| 95 |  |
TAPPING SCREW 5X50 |
| 96 |  |
FIELD ASS\\\\\'Y 220-240V 1 2 |
| 97 |  |
INSULATION WASHER |
| 98 |  |
BALL BEARING 6000DDW |
| 99 |  |
BAFFLE PLATE |
| 100 |  |
FLAT WASHER 15 |
| 101 |  |
BALL BEARING 6202LLU |
| 102 |  |
OIL SEAL 15 |
| 103 |  |
SLEEVE 12 |
| 104 |  |
SWITCH LEVER |
| 105 |  |
SWITCH TG71B |
| 106 |  |
LEAD GUIDE |
| 107 |  |
HANDLE COVER |
| 108 |  |
TAPPING SCREW 4X18 |
| 109 |  |
SPONGE SHEET |
| 110 |  |
TAPPING SCREW 4X18 |
| 111 |  |
STRAIN RELIEF |
| 112 |  |
CORD GUARD 10 |
| 113 |  |
POWER SUPPLY CORD 1.5-2-4.0 |
| 114 |  |
TAPPING SCREW 5X20 |
| 115 |  |
HANDLE |
| 116 |  |
ACRYLIC PIN 5 |
| 117 |  |
PAN HEAD SCREW M5X20 |
| 118 |  |
CONTROLLER |
| 119 |  |
FIX ROD |
| 120 |  |
FAN 90 |
| 121 | FLAT WASHER 8 | |
| 122 | HEX. NUT M8 | |
| 123 | REAR COVER | |
| 124 | TAPPING SCREW 5X20 | |
| 125 | TAPPING SCREW 4X18 | |
| 126 | BRUSH HOLDER COVER | |
| 127 | RUBBER PIN 4 | |
| 128 | BRUSH HOLDER CAP 6.5-13.5 | |
| 129 | A.C. CARBON BRUSH CB-155 | |
| 130 | MAKITA MARK | |
| 131 | NAME PLATE HR4500C | |
| 132 | MOTOR HOUSING SET INC. 130 | |
| 133 | SIDE HANDLE BASE 75 COMPLETE | |
| 134 | SIDE HANDLE CAM | |
| 135 | SIDE HANDLE CAM | |
| 136 | WING NUT M8 | |
| 137 | SIDE HANDLE | |
| 138 | HEX. BOLT M8X150 | |
| A01 | GREASE VESSEL SET | |
| A02 | PLASTIC CARRYING CASE | |
| A03 | DEPTH GAUGE | |
| A04 | GRIP 36 COMPLETE | |
| A05 | SCREW M6X14 | |
| A06 | CUP SQUARE NECK BOLT M8X80 | |
| A07 | PLATE | |
| A08 | GRIP SPRING 75 | |
| A09 | SIDE GRIP BASE 75 | |
| A10 | HEX. NUT M6 | |
| B01 | SIDE HANDLE ASS\\\\\'Y INC. 133-138 | |
| B02 | GRIP 36 ASS\\\\\'Y INC. A03-A10 |
