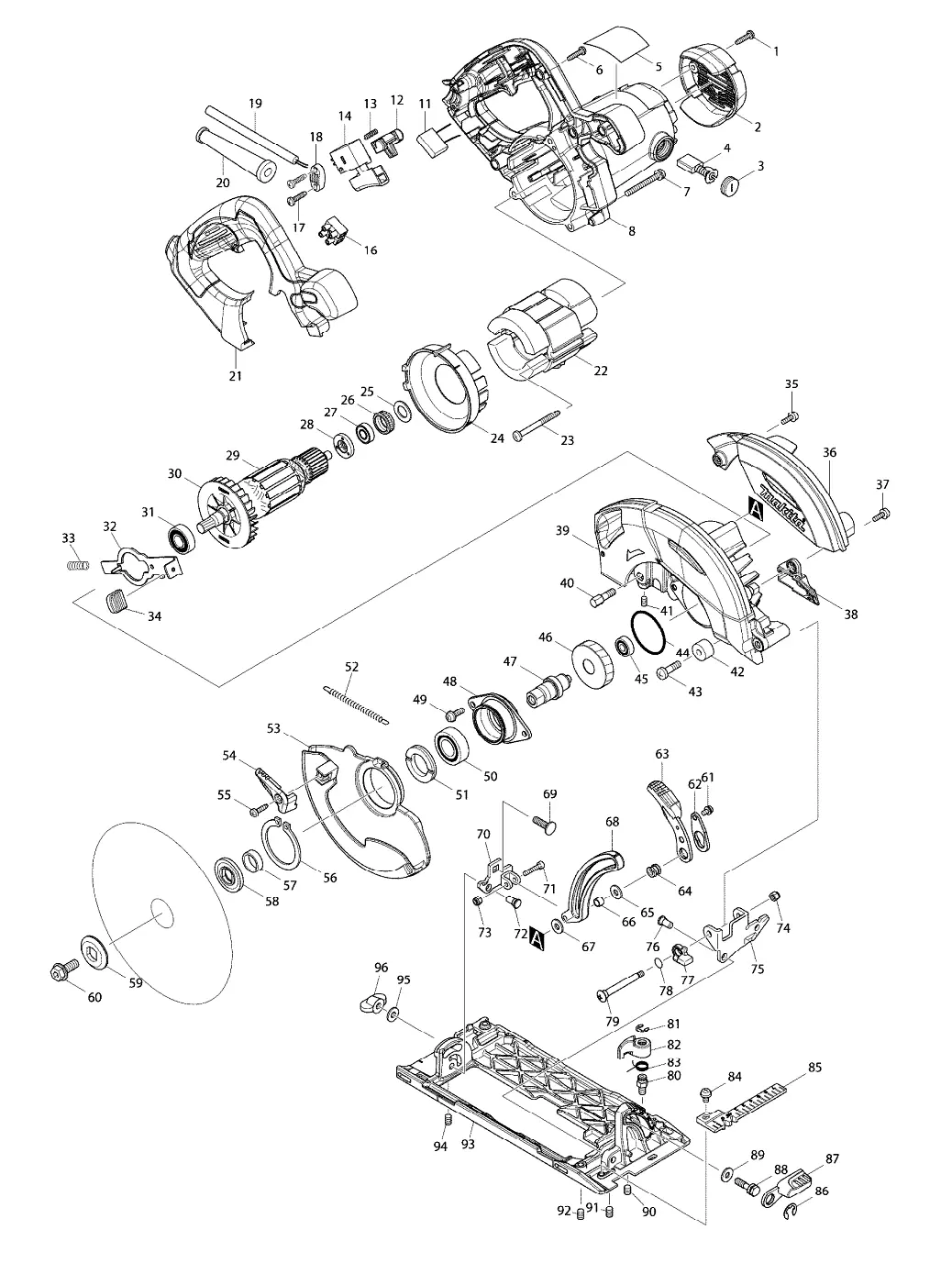

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
TAPPING SCREW 4X18 |
| 2 |  |
REAR COVER |
| 3 |  |
BRUSH HOLDER CAP 6.5-13.5 |
| 4 |  |
CARBON BRUSH SET CB-174 (NEW) |
| 5 | HS6100 NAME PLATE | |
| 6 | TAPPING SCREW 4X18 | |
| 7 | PAN HEAD SCREW M5X45 | |
| 8 | MOTOR HOUSING COMPLETE | |
| 11 | NOISE SUPPRESSOR | |
| 12 | LOCK OFF BUTTON | |
| 13 | COMPRESSION SPRING 4 | |
| 14 | SWITCH SGE115CDY-10 | |
| 16 | TERMINAL BLOCK 1P | |
| 17 | TAPPING SCREW 4X18 | |
| 18 | STRAIN RELIEF | |
| 19 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 20 | CORD GUARD 9.3-90 | |
| 21 | HANDLE COVER | |
| 22 | FIELD ASS\\\'Y 220-240V | |
| 23 | TAPPING SCREW 5X55 | |
| 24 | BAFFLE PLATE | |
| 25 | RUBBER WASHER 13 | |
| 26 | RUBBER RING 19 | |
| 27 | BALL BEARING 698ZZ | |
| 28 | INSULATION WASHER | |
| 29 | ARMATURE ASS\\\'Y 220V INC. 27,28,30,31 | |
| 30 | FAN 70 | |
| 31 | BALL BEARING 6001DDW | |
| 32 | SHAFT LOCK | |
| 33 | COMPRESSION SPRING 7 | |
| 34 | CAP | |
| 35 | PAN HEAD SCREW M4X12 | |
| 36 | BLADE COVER | |
| 37 | PAN HEAD SCREW M4X12 | |
| 38 | DUCT | |
| 39 | BLADE CASE COMPLETE | |
| 40 | HEX.BOLT M6X18 | |
| 41 | H.S.SET SCREW(CUP POINT)M5X8 | |
| 42 | RUBBER SLEEVE 6 | |
| 43 | PAN HEAD SCREW M6X20 | |
| 44 | O RING 44 | |
| 45 | BALL BEARING 607ZZ | |
| 46 | HELICAL GEAR 40 | |
| 47 | SPINDLE | |
| 48 | BEARING BOX | |
| 49 | PAN HEAD SCREW M5X16 | |
| 50 | BALL BEARING 6003DDW | |
| 51 | BEARING RETAINER 23-36 | |
| 52 | TENSION SPRING 4 | |
| 53 | SAFETY COVER | |
| 54 | LEVER 37 | |
| 55 | TAPPING SCREW CT 4X16 | |
| 56 | RETAINING RING S-42 | |
| 57 | RING 17 | |
| 58 | INNER FLANCE 35 (NEW) | |
| 59 | OUTER FLANGE 35 | |
| 60 | HEX. SOCKET HEX. BOLT M8X20 | |
| 61 | PAN HEAD SCREW M4X8 | |
| 62 | LOCK PLATE | |
| 63 | LEVER 70 | |
| 64 | HEX. NUT M6 | |
| 65 | FLAT WASHER 6 | |
| 66 | SLEEVE 6 | |
| 67 | FLAT WASHER 6 | |
| 68 | DEPTH GUIDE COMPLETE | |
| 69 | CAP SQUARE NECK BOLT M6X20 | |
| 70 | REAR ANGULAR GUIDE | |
| 71 | HEX. SOCKET HEAD BOLT M4X20 | |
| 72 | SHOULDER PIN 6-7 | |
| 73 | HEX. LOCKING NUT M4-7 | |
| 74 | HEX. LOCK NUT M5-8 | |
| 75 | ANGULAR GUIDE | |
| 76 | SHOULDER PIN 6-7 | |
| 77 | STOPPER | |
| 78 | O RING 9 | |
| 79 | TRUSS HEAD SCREW M6 | |
| 80 | HEX. BOLT M6X10 | |
| 81 | STOP RING E-6 | |
| 82 | LOCK LEVER | |
| 83 | TORSION SPRING 11 | |
| 84 | PAN HEAD SCREW M5X8 | |
| 85 | TOP GUIDE | |
| 86 | BOW STOP RING E-8 | |
| 87 | LEVER 45 | |
| 88 | HEX.BOLT M6X20 | |
| 89 | FLAT WASHER 6 | |
| 90 | H.S.SET SCREW(CUP POINT)M6X8 | |
| 91 | H.S.SET SCREW(CUP POINT)M6X8 | |
| 92 | H.S.SET SCREW(CUP POINT)M6X8 | |
| 93 | BASE | |
| 94 | H.S.SET SCREW(CUP POINT)M6X8 | |
| 95 | FLAT WASHER 6 | |
| 96 | SCREW M6 | |
| A01 | GUIDE RULE | |
| A02 | DUST NOZZLE | |
| A03 | PAN HEAD SCREW M4X16 | |
| A04 | T.C.T.SAW BLADE 165MM | |
| A05 | HEX. WRENCH 6 | |
| A06 | PLASTIC CARRYING CASE COMPLETE | |
| A07 | HS6100K PLASTIC CASE LABEL |
