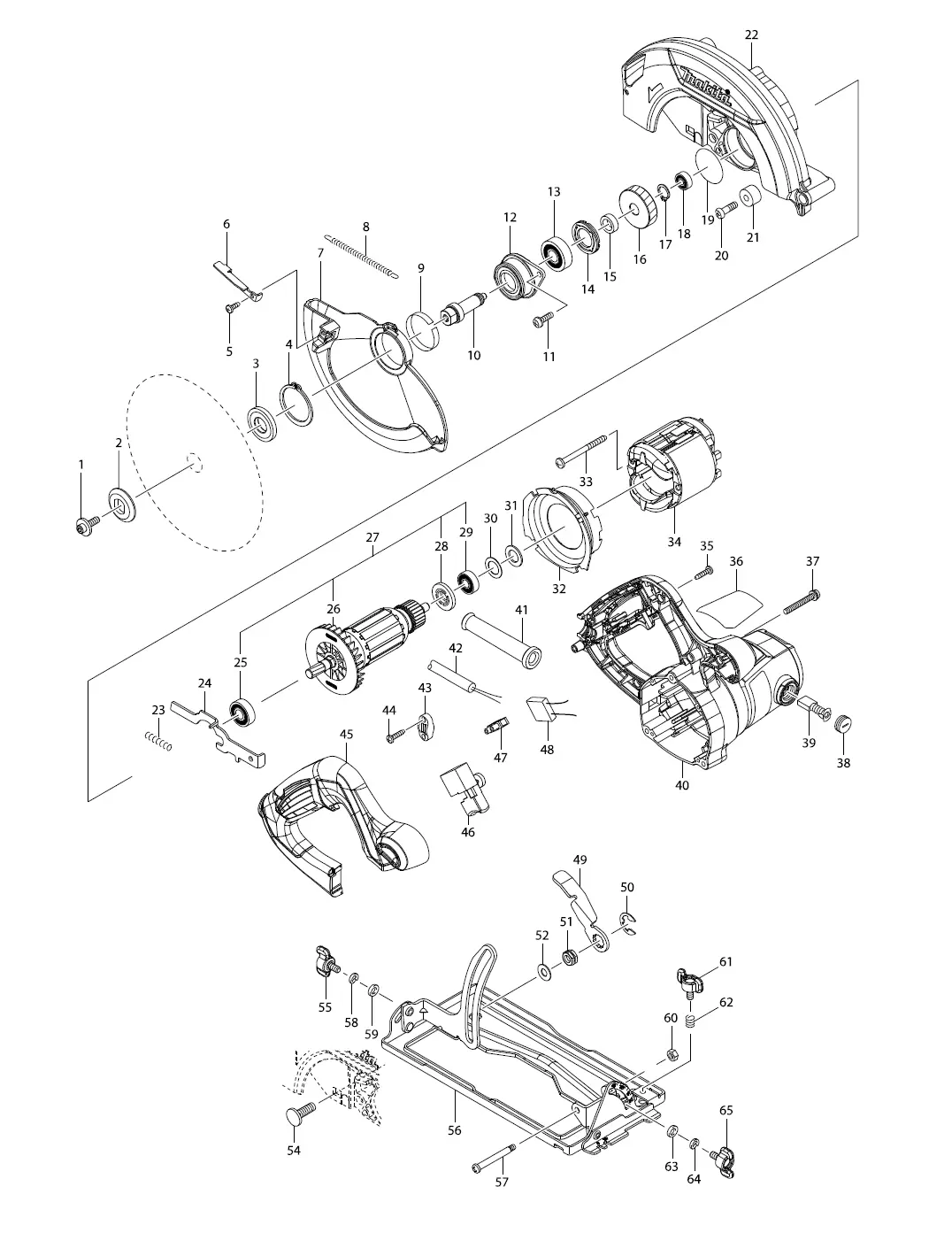

| П-п | Арт | Название |
|---|---|---|
| 001 | HEX. SOCKET HEAD BOLT M6X20 | |
| 002 | OUTER FLANGE 35 | |
| 003-2 | INNER FLANGE 35 | |
| 004 | RETAINING RING S-38 | |
| 005 | TAPPING SCREW CT 4X16 | |
| 006 | LEVER 37 | |
| 007 | SAFETY COVER | |
| 008 | TENSION SPRING 4 | |
| 009 | THICKNESS RING | |
| 10 | SPINDLE | |
| 11 | PAN HEAD SCREW M5X18 | |
| 12 | BEARING BOX | |
| 13 | BALL BEARING 6201DDW | |
| 14 | BEARING RETAINER 19-33 | |
| 15 | RING 12 | |
| 16 | HELICAL GEAR 38 | |
| 17 | RETAINING RING S-12 | |
| 18 | BALL BEARING 606ZZ | |
| 19 | O RING 39 | |
| 20 | +PAN HEAD SCREW M6X20 | |
| 21 | RUBBER SLEEVE 6 | |
| 22 | BLADE CASE COMPLETE | |
| C11 | O-RING 26 | |
| 23 | COMPRESSION SPRING 6 | |
| 24 | SHAFT LOCK | |
| 25 | BALL BEARING 6000DDW | |
| 26 | FAN 70 | |
| 27 | ARMATURE ASS\\\'Y 240V | |
| D10 | INC. 25,26,28,29 | |
| 28 | INSULATION WASHER | |
| 29 | BALL BEARING 608DDW | |
| 30 | FLAT WASHER 14 | |
| 31 | RUBBER WASHER 13 | |
| 32 | BAFFLE PLATE | |
| 33 | TAPPING SCREW 5X60 | |
| 34 | FIELD ASS\\\'Y 240V | |
| C10 | RING TERMINAL | |
| C20 | CONNECTOR P-1.25 | |
| 35 | TAPPING SCREW 4X18 | |
| 36 | HS7000 NAME PLATE | |
| 37 | PAN HEAD SCREW M5X40 | |
| 38 | BRUSH HOLDER CAP 7-11 | |
| 39 | CARBON BRUSH CB-303 | |
| 40 | MOTOR HOUSING COMPLETE | |
| C10 | BRUSH HOLDER 5-11 | |
| 41 | CORD GUARD 9.3-90 | |
| 42 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 43 | STRAIN RELIEF | |
| 44 | TAPPING SCREW 4X18 | |
| 45 | HANDLE COVER | |
| 46 | SWITCH SGES115C-7 | |
| 47 | TERMINAL BLOCK 1P | |
| 48 | NOISE SUPPRESSOR | |
| 49 | LEVER PLATE | |
| 50 | BOW STOP RING E-12 | |
| 51 | HEX. NUT M8-13 | |
| 52 | FLAT WASHER 8 | |
| 54 | FLATHEAD SQUARENECKBOLT M8X24 | |
| 55 | THUMB SCREW M6X12 | |
| 56 | BASE | |
| 57 | PAN HEAD SCREW M5 | |
| 58 | SPRING WASHER 6 | |
| 59 | FLAT WASHER 6 | |
| 60 | HEX. LOCK NUT M5-8 | |
| 61 | THUMB SCREW M6X12 | |
| 62 | COMPRESSION SPRING 8 | |
| 63 | FLAT WASHER 6 | |
| 64 | SPRING WASHER 6 | |
| 65 | THUMB SCREW M6X12 | |
| A01 | GUIDE RULE | |
| A02 | HEX. WRENCH 5 | |
| A03 | TCT SAW BLADE F WOOD 185X30X16 | |
| A04 | DUST NOZZLE SET |
