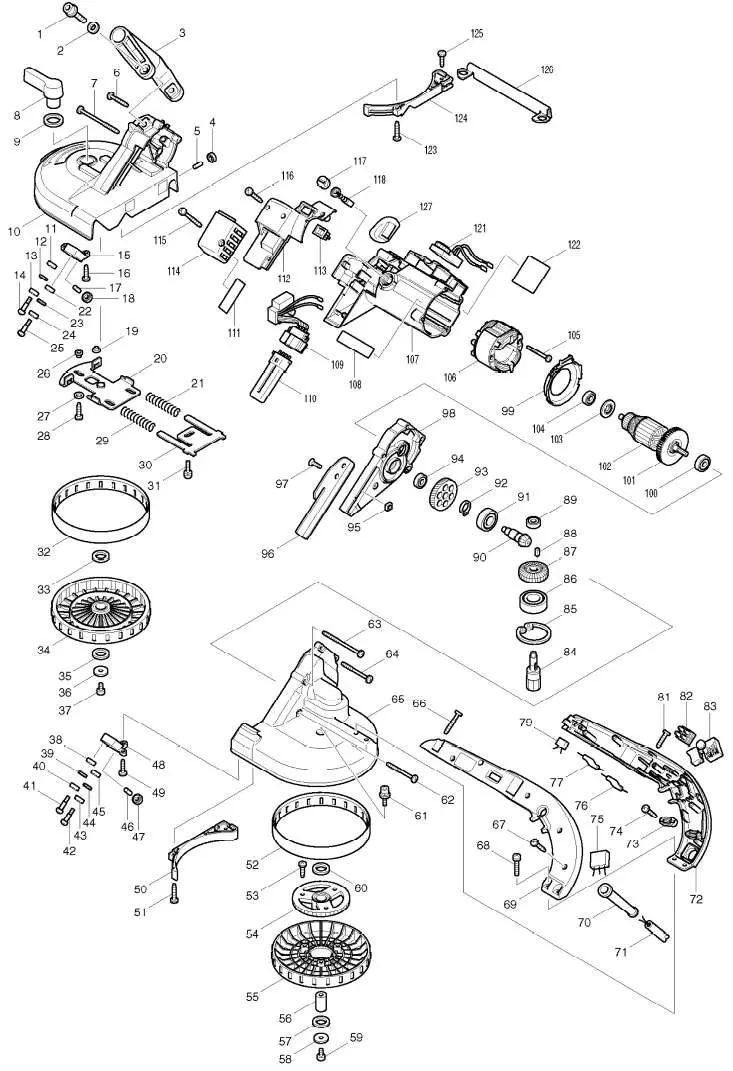

| П-п | Арт | Название |
|---|---|---|
| 1 | HEX. SOCKET HEAD BOLT M8X35 | |
| 2 | FLAT WASHER 8 | |
| 3 | GRIP | |
| 4 | BALL BEARING 696ZZ | |
| 5 | PIN 6 | |
| 6 |  |
TAPPING SCREW 4X25 |
| 7 |  |
TAPPING SCREW 4X55 |
| 8 |  |
LEVER 60 |
| 9 |  |
FLAT WASHER 20 |
| 10 |  |
FRONT WHEEL COVER COMPLETE |
| 11 |  |
BALL BEARING 696ZZ |
| 12 |  |
FLAT WASHER 6 |
| 13 |  |
BALL BEARING 696ZZ |
| 14 |  |
+ PAN HEAD SCREW M5 |
| 15 |  |
UPPER HOLDER |
| 16 |  |
TAPPING SCREW CT 4X16 |
| 17 |  |
PIN 6 |
| 18 |  |
BALL BEARING 696ZZ |
| 19 |  |
SLEEVE 5 |
| 20 |  |
SLIDE PLATE |
| 21 |  |
COMPRESSION SPRING 11 |
| 22 |  |
BALL BEARING 696ZZ |
| 23 |  |
FLAT WASHER 6 |
| 24 |  |
BALL BEARING 696ZZ |
| 25 |  |
+ PAN HEAD SCREW M5 |
| 26 |  |
SLEEVE 5 |
| 27 |  |
FLAT WASHER 4 |
| 28 |  |
TAPPING SCREW CT 4X16 |
| 29 |  |
COMPRESSION SPRING 11 |
| 30 |  |
TENSION PLATE |
| 31 |  |
PAN HEAD SCREW M5X16 |
| 32 |  |
RUBBER TIRE |
| 33 |  |
FLAT WASHER 16 |
| 34 |  |
WHEEL COMPLETE |
| 35 |  |
FLAT WASHER 16 |
| 36 |  |
FLAT WASHER 6 |
| 37 |  |
HEX. SOCKET HEAD BOLT M6X12 |
| 38 |  |
BALL BEARING 696ZZ |
| 39 |  |
FLAT WASHER 6 |
| 40 |  |
BALL BEARING 696ZZ |
| 41 |  |
+ PAN HEAD SCREW M5 |
| 42 |  |
+ PAN HEAD SCREW M5 |
| 43 |  |
BALL BEARING 696ZZ |
| 44 |  |
FLAT WASHER 6 |
| 45 |  |
BALL BEARING 696ZZ |
| 46 |  |
PIN 6 |
| 47 |  |
BALL BEARING 696ZZ |
| 48 |  |
LOWER HOLDER |
| 49 |  |
TAPPING SCREW CT 4X16 |
| 50 |  |
SAW GUARD HOLDER |
| 51 |  |
TAPPING SCREW BIND CT 4X20 |
| 52 |  |
RUBBER TIRE |
| 53 |  |
TAPPING SCREW 5X20 |
| 54 |  |
GEAR COMPLETE |
| 55 | WHEEL | |
| 56 | LOWER SHAFT | |
| 57 | FLAT WASHER 16 | |
| 58 | FLAT WASHER 6 | |
| 59 | HEX. SOCKET HEAD BOLT M6X12 | |
| 60 | FLAT WASHER 16 | |
| 61 | HEX.SOCKET HEAD BOLT M6X16 | |
| 62 | TAPPING SCREW BIND CT 4X40 | |
| 63 | TAPPING SCREW 4X55 | |
| 64 | TAPPING SCREW 4X40 | |
| 65 | REAR WHEEL COVER | |
| 66 | TAPPING SCREW 4X18 | |
| 67 | TAPPING SCREW 4X18 | |
| 68 | PAN HEAD SCREW M5X25 | |
| 69 | HANDLE SET INC. 72 | |
| 70 | CORD GUARD 8 | |
| 71 | POWER SUPPLY CORD 1.5-2-2.5 | |
| 72 | HANDLE SET INC. 69 | |
| 73 | CORD CLAMP | |
| 74 | TAPPING SCREW 4X18 | |
| 75 | NOISE SUPPRESSOR | |
| 76 | CHOKE COIL | |
| 77 | CHOKE COIL | |
| 79 | NOISE SUPPRESSOR | |
| 81 | TAPPING SCREW BIND CT 4X20 | |
| 82 | TERMINAL BLOCK 2P | |
| 83 | SWITCH SGEL115CDY-6 | |
| 84 | SPUR GEAR 8 | |
| 85 | RETAINING RING R-47 | |
| 86 | BALL BEARING 6204LLB | |
| 87 | SPIRAL BEVEL GEAR 29 | |
| 88 | KEY 4 | |
| 89 | BALL BEARING 608ZZ | |
| 90 | SPIRAL BEVEL GEAR 11 | |
| 91 |  |
BALL BEARING 6202DDW |
| 92 |  |
RETAINING RING S-15 |
| 93 |  |
HELICAL GEAR 64 |
| 94 |  |
BALL BEARING 608ZZ |
| 95 |  |
SQUARE NUT M6 |
| 96 |  |
STOPPER PLATE |
| 97 |  |
HEX. SOCKET HEAD BOLT M6X16 |
| 98 |  |
GEAR HOUSING COMPLETE |
| 99 |  |
BAFFLE PLATE |
| 100 |  |
BALL BEARING 629DDW |
| 101 |  |
FAN 60 |
| 102 |  |
ARMATURE ASS\\\\\'Y 220-240V INC. 100,101,103,104 |
| 103 |  |
INSULATION WASHER |
| 104 |  |
BALL BEARING 608ZZ |
| 105 |  |
TAPPING SCREW 5X45 |
| 106 |  |
FIELD 220-240V |
| 107 |  |
MOTOR HOUSING COMPLETE |
| 108 |  |
MAKITA MARK |
| 109 |  |
LIGHT CIRCUIT |
| 110 |  |
FLUORESCENT LIGHT SET |
| 111 |  |
LENZ |
| 112 |  |
LAMP COVER |
| 113 |  |
SWITCH SLE6A |
| 114 |  |
LAMP BOX |
| 115 |  |
TAPPING SCREW 4X40 |
| 116 |  |
TAPPING SCREW 3X20 |
| 117 |  |
BRUSH HOLDER CAP |
| 118 |  |
CARBON BRUSH CB-303 |
| 121 |  |
CONTROLLER |
| 122 |  |
NAME PLATE 2107F |
| 123 |  |
TAPPING SCREW BIND CT 4X20 |
| 124 |  |
SAW GUARD HOLDER |
| 125 |  |
TAPPING SCREW CT 4X16 |
| 126 |  |
SAW GUARD |
| 127 |  |
CAP |
| A01 |  |
WRENCH HOLDER 3.4 |
| A02 |  |
BAND SAW BLADE 18 (C.STEEL) |
| A03 |  |
HEX. WRENCH 4 |
| A04 |  |
PLASTIC CARRYING CASE |
