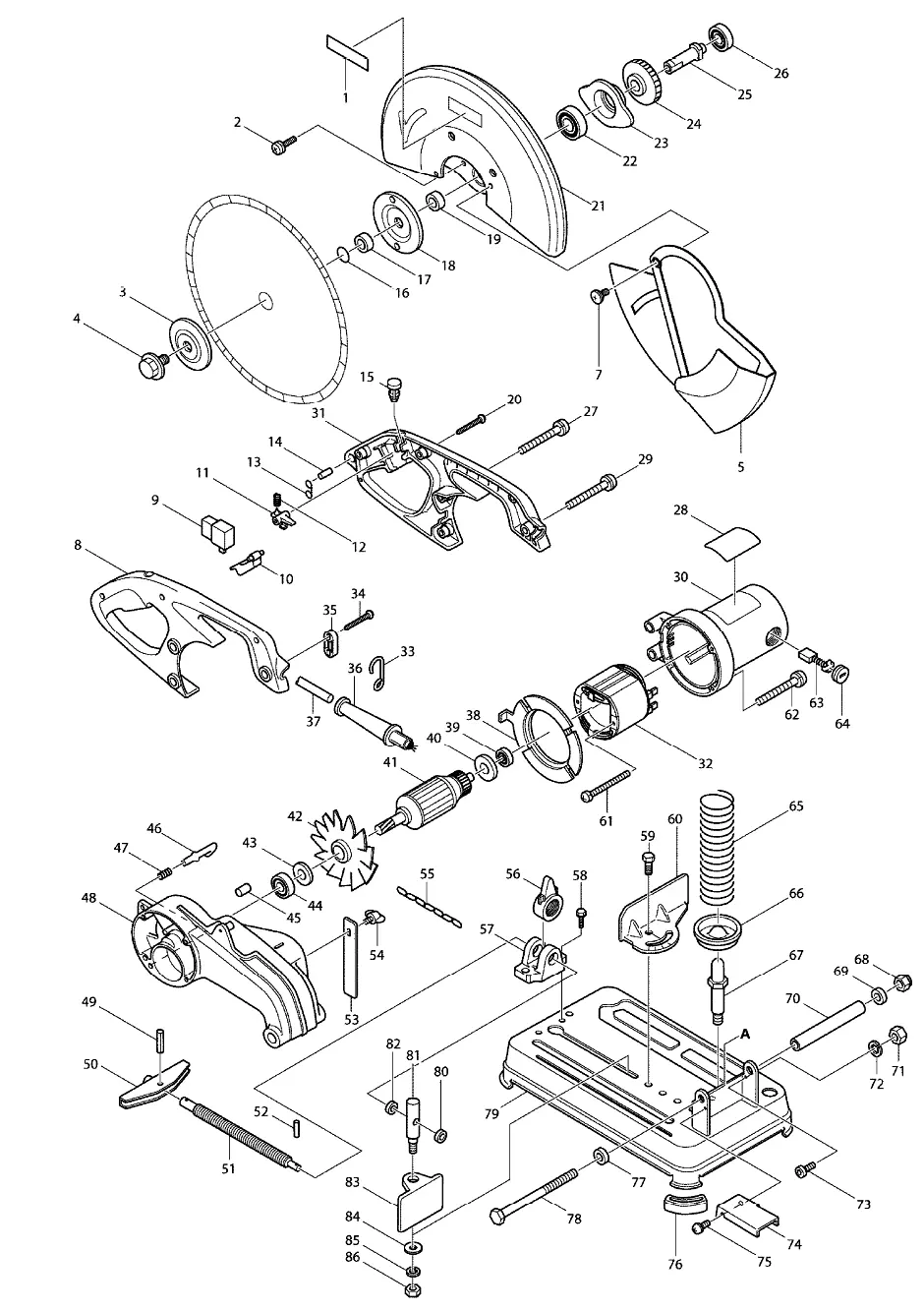

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
MAKITA MARK |
| 2 |  |
PAN HEAD SCREW M6X20 |
| 3 |  |
FLANGE 90 |
| 4 |  |
HEX. BOLT M10X25 |
| 5 |  |
SAFETY GUIDE |
| 7 |  |
FLAT HEAD SCREW M6 |
| 8 |  |
HANDLE SET INC. 31 |
| 9 |  |
SWITCH TG71B |
| 10 |  |
SWITCH LEVER COMPLETE |
| 11 |  |
SWITCH LOCK |
| 12 | COMPRESSION SPRING 4 | |
| 13 | HANGER | |
| 14 | PIN 6 | |
| 15 | SWITCH BUTTON | |
| 16 | O RING 14 | |
| 17 | RING 17 | |
| 18 | FLANGE 90 | |
| 19 | RING 17 | |
| 20 | TAPPING SCREW 4X18 | |
| 21 | SAFETY COVER | |
| 22 | BALL BEARING 6203ZZ | |
| 23 | BEARING BOX | |
| 24 | HELICAL GEAR 41 | |
| 25 | SPINDLE | |
| 26 | BALL BEARING 6000ZZ | |
| 27 | PAN HEAD SCREW M5X50 | |
| 28 | NAME PLATE 2414NB | |
| 29 | PAN HEAD SCREW M5X35 | |
| 30 | MOTOR HOUSING COMPLETE | |
| 31 |  |
HANDLE SET INC. 8 |
| 32 |  |
FIELD 220V |
| 33 |  |
HOOK |
| 34 |  |
TAPPING SCREW 4X18 |
| 35 |  |
STRAIN RELIEF |
| 36 |  |
CORD GUARD 9.3-90 |
| 37 |  |
POWER SUPPLY CORD 1.0-2-2.5 |
| 38 |  |
BAFFLE PLATE |
| 39 |  |
BALL BEARING 629LLB |
| 40 |  |
INSULATION WASHER |
| 41 |  |
ARMATURE ASS\\\'Y 220V INC. 39,40,42-44 |
| 42 |  |
FAN 92 |
| 43 |  |
WASHER 15 |
| 44 |  |
BALL BEARING 6202DDW |
| 45 |  |
RUBBER PIN 6 |
| 46 |  |
STOPPER |
| 47 |  |
COMPRESSION SPRING 7 |
| 48 |  |
GEAR HOUSING COMPLETE INC. 45 |
| 49 |  |
SPRING PIN 5-20 |
| 50 |  |
HANDLE 120 |
| 51 |  |
VICE SCREW |
| 52 |  |
SPRING PIN 3-18 |
| 55 |  |
CHAIN |
| 56 |  |
VICE NUT |
| 57 |  |
SCREW GUIDE |
| 58 |  |
PAN HEAD SCREW M8X30 |
| 59 |  |
HEX. BOLT M10X25 |
| 60 |  |
GUIDE PLATE |
| 61 |  |
TAPPING SCREW 5X75 |
| 62 |  |
PAN HEAD SCREW M5X50 |
| 63 |  |
CARBON BRUSH CB-203 |
| 64 |  |
BRUSH HOLDER CAP 7-18 |
| 65 |  |
COMPRESSION SPRING 45 |
| 66 |  |
SPRING HOLDER |
| 67 |  |
HEX.BOLT M10 |
| 68 |  |
HEX. LOCK NUT M10-17 |
| 69 |  |
CUP WASHER 10 |
| 70 |  |
PIN 16-113 |
| 71 |  |
HEX. NUT M6 |
| 72 |  |
SPRING WASHER 6 |
| 73 |  |
HEX. SOCKET HEAD BOLT M6X12 |
| 74 |  |
SPARK GUARD |
| 75 |  |
PAN HEAD SCREW M6X10 |
| 76 |  |
CUSHION |
| 77 |  |
CUP WASHER 10 |
| 78 |  |
HEX. BOLT M10X130 |
| 79 |  |
BASE |
| 80 |  |
FLAT WASHER 8 |
| 81 |  |
SCREW M8 |
| 82 |  |
FLAT WASHER 8 |
| 83 |  |
VISE PLATE |
| 84 |  |
FLAT WASHER 8 |
| 85 |  |
SPRING WASHER 8 |
| 86 |  |
HEX. NUT M8 |
| 87 |  |
WAVE WASHER 6 |
| A01 |  |
SOCKET WRENCH 17 |
| A02 |  |
CUT-OFF WHEEL 355-NO.10 AEPD-007/93 |
| A03 |  |
14\\\"CUT-OFF WHEEL 5PCS |
| E01 |  |
NOISE SUPPRESSOR |
| E03 |  |
LINE FILTER |
| E04 |  |
PLUG |
| E09 |  |
UNDER COVER |
| E10 |  |
HEX.SOCKET HEAD BOLT M6 |
| E11 |  |
WING BOLT M6X10 |
