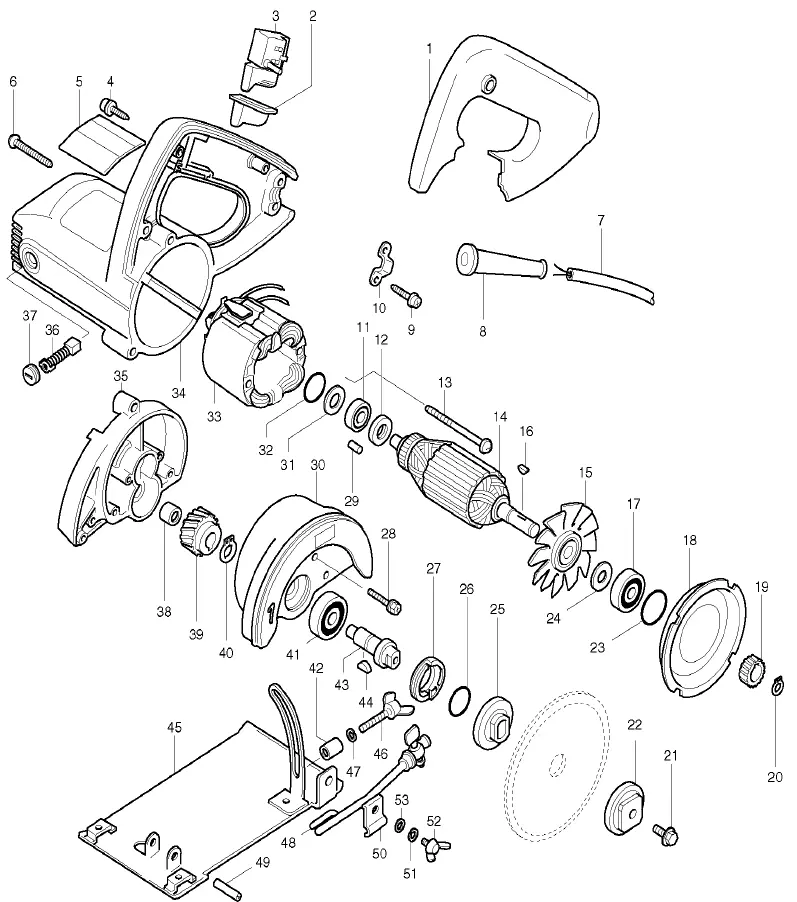

| П-п | Арт | Название |
|---|---|---|
| 1 | HANDLE COVER, 4100NH | |
| 2 | DUST COVER. 4101RH | |
| 3 | SWITCH.4100NH | |
| 4 | TAPPING SCREW 4X20, 9046 | |
| 5 | NAME PLATE. 4100NH | |
| 6 | P.H. SCREW M5X40, 2711 | |
| 7 | CORD | |
| 8 | CORD GUARD 8-85, HP2010N | |
| 9 | TAPPING SCREW 4X18, 4323K | |
| 10 | STRAIN RELIEF. 4323K | |
| 11 | B. BEARING 608LB, 5091D | |
| 12 | INS. WASHER, HR2400 | |
| 13 | T. SCREW FLANGE PT 5X65.JR3020 | |
| 14 | ARMATURE. 4100NH | |
| 15 | FAN 68, 4101 RH | |
| 16 | WOODRUFF KEY 3, 9217SPC | |
| 17 | BALL BEARING 629LLB, 5277NB | |
| 18 | BAFFLE PLATE. 4200H | |
| 19 | HELICAL GEAR 19 4200NH | |
| 19 | HELICAL GEAR 17.4200NH | |
| 20 | RETAINING RING S-8, DA391D | |
| 21 | H.F.H. BOLT M6X17, 5005BA | |
| 22 | OUTER FLANGE, 4200H | |
| 22 | N/A | |
| 23 | O RING 26,4200H | |
| 24 | F. WASHER 9, 4200N | |
| 25 | INNER FLANGE, 4200H | |
| 25 | N/A | |
| 26 | O RING 18,4200H | |
| 27 | BEARING RETAINER, 4100NH | |
| 28 | HEX BOLT M4X25, 4101 RH | |
| 29 | RUBBER PIN 4, HR2400 | |
| 30 | BLADE CASE CPL..4100NH | |
| 31 | F. WASHER 14, HR2400 | |
| 32 | O RING 18, 5005BA | |
| 33 | FIELD ASSY 115V, 4100NH | |
| 34 | MOTOR HOUSING CPL..4100NH | |
| 35 | GEAR HOUSING, 4100NH | |
| 36 | CARBON BRUSH CB-303 SET. 9227C | |
| 36 | CARBON BRUSH SET CB-303. 9227C | |
| 37 | BRUSH HOLDER CAP, HM1100C | |
| 38 | N.BEARING 810.4200N | |
| 39 | HELICAL GEAR 42.4200NH | |
| 39 | HELICAL GEAR 41.4200NH | |
| 40 | RETAINING RING S-12. 9218PBL | |
| 41 | BALL BEARING 6201DDW. N9501B | |
| 42 | SLEEVE 7. 4100NH | |
| 43 | SPINDLE. 4200H | |
| 44 | WOODRUFF KEY 4, HM1810 | |
| 45 | BASE, 4100NH | |
| 46 | WING BOLT M6X28.4100NH | |
| 47 | SPRING WASHER 6. 5007NB | |
| 49 | SPRING PIN 6-32,4200H | |
| 1 | SPANNER, 2708 | |
| 1 | SOCKET WRENCH. 4200H | |
| 1,01 | 4 DIAMOND BLADE TURBO GEN/PURP, 4100NH |
