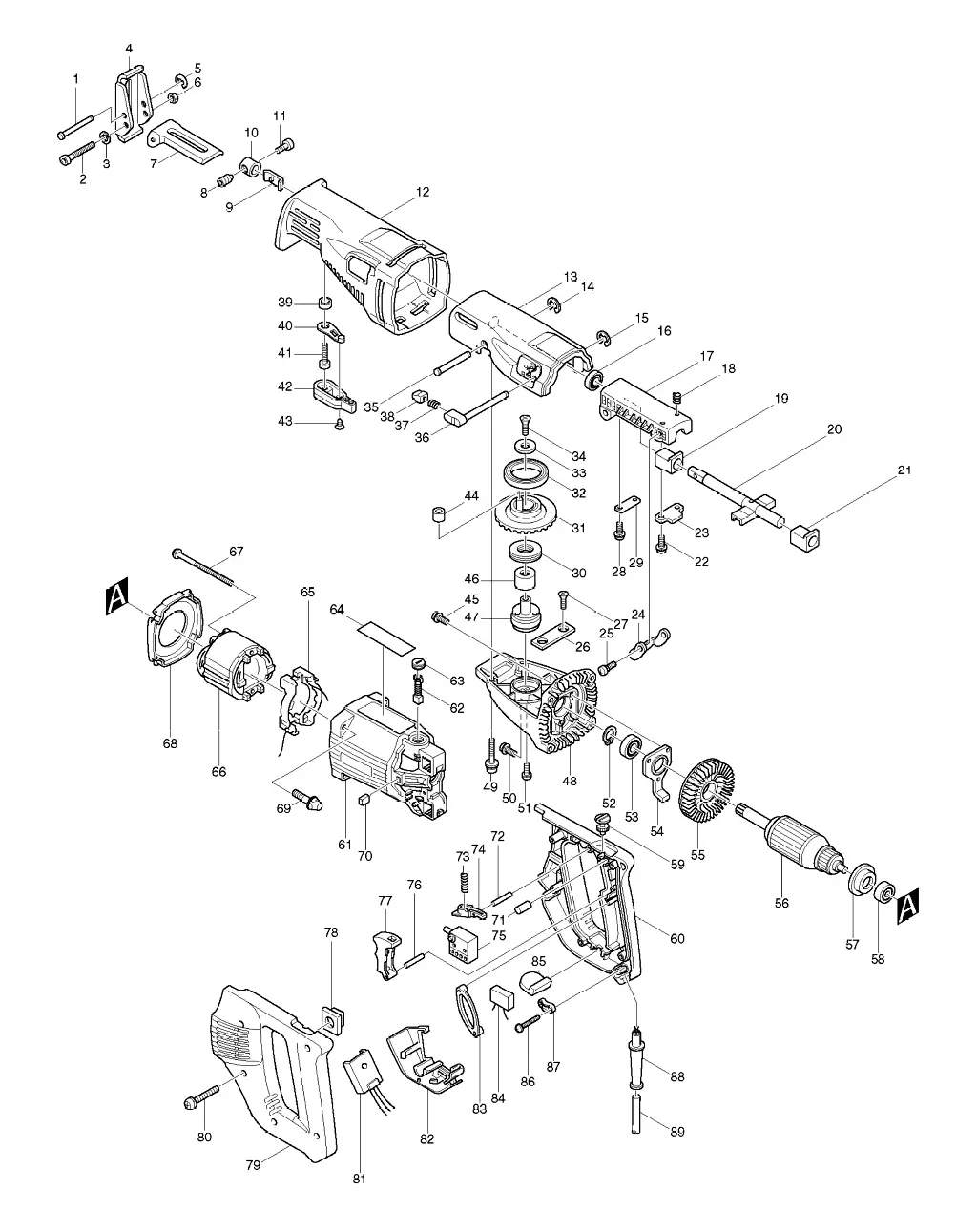

| П-п | Арт | Название |
|---|---|---|
| 1 | PIN 4 | |
| 2 | HEX. SOCKET HEAD BOLT M5X45 | |
| 3 | SPRING WASHER 5 | |
| 4 | SHOE PLATE | |
| 5 | STOP RING E-3 | |
| 6 | HEX. LOCK NUT M5-8 | |
| 7 | SHOE SUPPORTER | |
| 8 | HEX.SOCKET SET SCREW(HOLE)M8X9 | |
| 9 | LEAF SPRING | |
| 10 | BLADE CLAMP | |
| 11 | HEX. SOCKET HEAD BOLT M5X15 | |
| 12 | INSULATION COVER | |
| 13 | GEAR HOUSING COVER | |
| 14 | STOP RING E-6 | |
| 15 | STOP RING E-6 | |
| 16 | DUST SEAL 12.7 | |
| 17 | SLIDER SUPPORT | |
| 18 | COMPRESSION SPRING 4 | |
| 19 | PLANE BEARING 12.7 | |
| 20 | SLIDER | |
| 21 | PLANE BEARING 12.7 | |
| 22 | HEX. SOCKET HEAD BOLT M5X16 | |
| 23 | PLATE (B) | |
| 24 | ARM | |
| 25 | #ИМЯ? | |
| 26 | PLATE (C) | |
| 27 | HEX. SOCKET HEAD BOLT M5X12 | |
| 28 | HEX. SOCKET HEAD BOLT M5X16 | |
| 29 | PLATE | |
| 30 | THRUST NEEDLE BEARING 2035 | |
| 31 | GEAR | |
| 32 | BALL BEARING 6808 | |
| 33 | FLAT WASHER 6 | |
| 34 | HEX. SOCKET HEAD BOLT M5X12 | |
| 35 |  |
PIN 7 |
| 36 |  |
LEVER 20 |
| 37 |  |
COMPRESSION SPRING 5 |
| 38 |  |
STOPPER |
| 39 |  |
RING 8 |
| 40 |  |
LEVER PLATE |
| 41 |  |
HEX. BOLT M8X20 |
| 42 |  |
LEVER 50 |
| 43 |  |
HEX. SOCKET HEAD BOLT M5X8 |
| 44 |  |
NEEDLE BEARING 710 |
| 45 |  |
PAN HEAD SCREW M5X8 |
| 46 |  |
NEEDLE BEARING 1216 |
| 47 |  |
GEAR SHAFT |
| 48 |  |
GEAR HOUSING |
| 49 |  |
PAN HEAD SCREW M5X25 |
| 50 |  |
PAN HEAD SCREW M5X16 |
| 51 |  |
PAN HEAD SCREW M5X12 |
| 52 |  |
RETAINING RING S-12 |
| 53 |  |
BALL BEARING 6001DDW |
| 54 |  |
BEARING RETAINER |
| 55 |  |
FAN 70 |
| 56 |  |
ARMATURE ASS\\\'Y 220V INC. 55,57,58 |
| 57 |  |
INSULATION WASHER |
| 58 |  |
BALL BEARING 608DDW |
| 59 |  |
SPEED CONTROL KNOB |
| 60 |  |
HANDLE SET INC. 79 |
| 61 |  |
MOTOR HOUSING COMPLETE |
| 62 |  |
CARBON BRUSH CB-253 |
| 63 |  |
BRUSH HOLDER CAP 7-11 |
| 64 |  |
NAME PLATE JR3020 |
| 65 |  |
SUPPORT COMPLETE |
| 66 |  |
FIELD 220V |
| 67 |  |
TAPPING SCREW 5X65 |
| 68 |  |
BAFFLE PLATE |
| 69 |  |
PAN HEAD SCREW M5X30 |
| 70 |  |
RUBBER BLOCK (B) |
| 71 |  |
RUBBER PIN 4 |
| 72 |  |
PIN 3 |
| 73 |  |
COMPRESSION SPRING 4 |
| 74 |  |
LOCK BUTTON |
| 75 |  |
SWITCH SGE110CV-1P |
| 76 |  |
PIN 3 |
| 77 |  |
SWITCH LEVER |
| 78 |  |
RUBBER BLOCK (A) |
| 79 |  |
HANDLE SET INC. 60 |
| 80 |  |
TAPPING SCREW 4X25 |
| 81 |  |
TRIAC |
| 82 |  |
CONTROLLER CASE |
| 83 |  |
RUBBER BAND |
| 84 |  |
NOISE SUPPRESSOR |
| 85 |  |
RUBBER PLATE |
| 86 |  |
TAPPING SCREW 4X18 |
| 87 |  |
STRAIN RELIEF |
| 88 |  |
CORD GUARD 9.3-90 |
| 89 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| A01 |  |
RECIPRO SAW BLADE NO.21 |
| A02 |  |
RECIPRO SAW BLADE NO.22 |
| A03 |  |
RECIPRO SAW BLADE NO.23 |
| A04 |  |
HEX. WRENCH 4 |
| A05 |  |
WRENCH HOLDER 3.4 |
| A06 |  |
PLASTIC CARRYING CASE |
| E11 |  |
SAFETY LOCK BUTTON |
