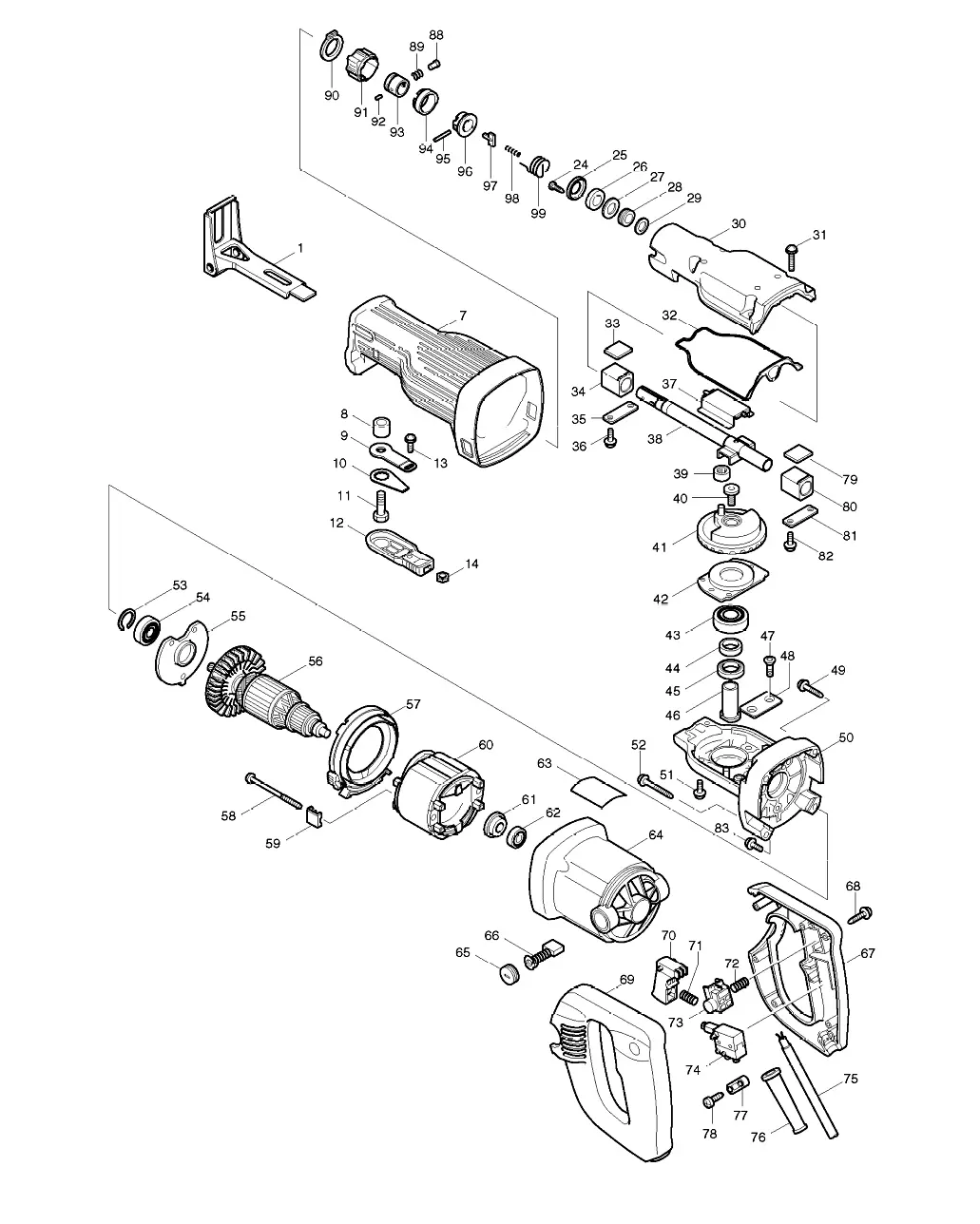

| П-п | Арт | Название |
|---|---|---|
| 1 | SHOE | |
| 7 | INSULATION COVER | |
| 8 | SLEEVE 9 | |
| 9 | INNER PLATE | |
| 10 | LOCK PLATE | |
| 11 | HEX. BOLT M8X25 | |
| 12 | LEVER 60 | |
| 13 | PAN HEAD SCREW M4X10 | |
| 14 | HEX. NUT M4 | |
| 15 | CLAMP | |
| 16 | STEEL BALL 4.8 | |
| 17 | PIN 5.5-6 | |
| 18 | TORX. S.H. SHOULDER BOLT M5X10 | |
| 19 | PUSH PIN | |
| 20 | COMPRESSION SPRING 3 | |
| 21 | PUSH BUTTON | |
| 22 | COMPRESSION SPRING 16 | |
| 23 | RING 13 | |
| 24 | TAPPING SCREW BIND CT 5X12 | |
| 25 | FELT RETAINER | |
| 26 | FELT RING 14 | |
| 27 | FLAT WASHER 14 | |
| 28 | X RING 14 | |
| 29 | FLAT WASHER 16 | |
| 30 | GEAR HOUSING COVER | |
| 31 | PAN HEAD SCREW M5X30 | |
| 32 | PACKING | |
| 33 | PLATE 12X16 | |
| 34 | PLANE BEARING 14 | |
| 35 | PLATE | |
| 36 | PAN HEAD SCREW M5X16 | |
| 37 | SLIDE PLATE | |
| 38 | SLIDER | |
| 39 | NEEDLE BEARING 708 | |
| 40 | HEX. SOCKET HEAD BOLT M10X18 | |
| 41 | GEAR COMPLETE | |
| 42 | BEARING RETAINER 56 | |
| 43 | BALL BEARING 6202LLB | |
| 44 | RING 15 | |
| 45 | BALL BEARING 6902 | |
| 46 | GEAR SHAFT | |
| 47 | HEX. SOCKET HEAD BOLT M5X12 | |
| 48 | PLATE (C) | |
| 49 | TAPPING SCREW 5X30 | |
| 50 | GEAR HOUSIHG | |
| 51 | PAN HEAD SCREW M5X8 | |
| 52 | TAPPING SCREW 5X45 | |
| 53 | RETAINING RING S-12 | |
| 54 | BALL BEARING 6001DDW | |
| 55 | BEARING RETAINER | |
| 56 | ARMATURE ASS\\\'Y 220V INC. 61,62 | |
| 57 | BAFFLE PLATE | |
| 58 | TAPPING SCREW 5X60 | |
| 59 | RETAINER | |
| 60 | FIELD ASS\\\'Y 220V | |
| 61 | INSULATION WASHER | |
| 62 | BALL BEARING 608DDW | |
| 63 | NAME PLATE JR3030T | |
| 64 | MOTOR HOUSING COMPLETE | |
| 65 | BRUSH HOLDER CAP 7-11 | |
| 66 | CARBON BRUSH CB-303 | |
| 67 | HANDLE SET INC. 69 | |
| 68 | TAPPING SCREW 4X20 | |
| 69 | HANDLE SET INC. 67 | |
| 70 | SWITCH LEVER | |
| 71 | COMPRESSION SPRING 5 | |
| 72 | COMPRESSION SPRING 4 | |
| 73 | LOCK-ON BUTTON | |
| 74 | SWITCH SGE106CV-1P | |
| 75 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 76 | CORD GUARD 9.3-90 | |
| 77 | STRAIN RELIEF | |
| 78 | TAPPING SCREW 4X18 | |
| 79 | PLATE 12X16 | |
| 80 | PLANE BEARING 14 | |
| 81 | PLATE | |
| 82 | PAN HEAD SCREW M5X16 | |
| 83 | PAN HEAD SCREW M5X8 | |
| 86 | FLAT WASHER 5 | |
| 87 | SPRING WASHER 5 | |
| 88 | SHOULDER PIN 5 | |
| 89 | COMPRESSION SPRING 6 | |
| 90 | RETAINING RING (EXT) S-18 | |
| 91 | DRIVING SLEEVE | |
| 92 | PIN 3 | |
| 93 | GUIDE SLEEVE | |
| 94 | DRIVING SLEEVE GUIDE | |
| 95 | PIN 3 | |
| 96 | SLEEVE | |
| 97 | PUSH PLATE | |
| 98 | COMPRESSION SPRING 2 | |
| 99 | TORSION SPRING 17 | |
| A01 | RECIPRO SAW BLADE NO.21 | |
| A02 | RECIPRO SAW BLADE NO.22 | |
| A03 | RECIPRO SAW BLADE NO.23 | |
| A04 | PLASTIC CARRYING CASE | |
| E02 | NOISE SUPPRESSOR | |
| E05 | SPONGE SHEET |
