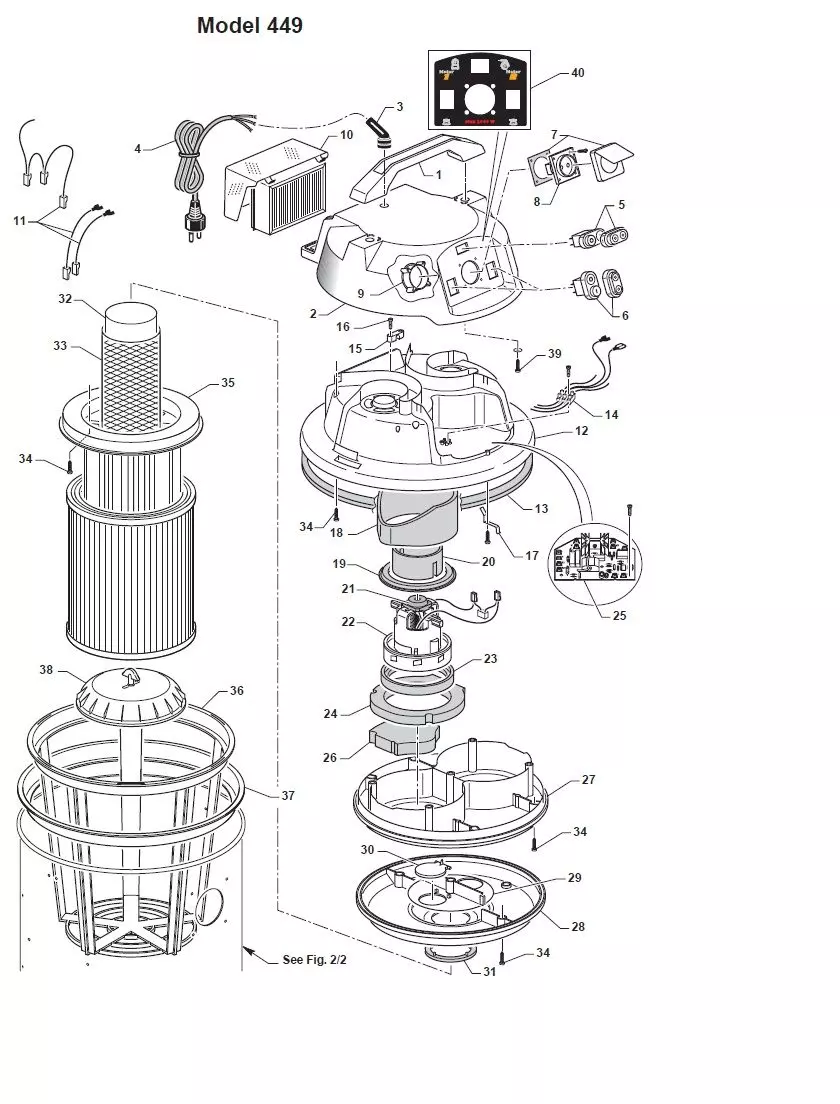

Двигатель, фильтр, панель управления
| П-п | Арт | Название |
|---|---|---|
| 1 | Handle | |
| 2 | Cover | |
| 3 | Cable guide | |
| 4 | Feeder | |
| 5 | TTR Switch | |
| 6 | TTR bipolar switch | |
| 7 | Outer shell + cover | |
| 8 | Schuko socket | |
| 9 | Socket lock nut | |
| 10 | Hepa post-filter lid | |
| 11 | Set of wires | |
| 12 | Motor cover | |
| 13 | Drawn wire mm 10x5 | |
| 14 | Tripolar terminal | |
| 15 | Cable fastener | |
| 16 | ![]() |
Screw 3,5x20 mm type Poly lok |
| 17 | ![]() |
Electrostatic current lamella |
| 18 | ![]() |
Exterior isolator ring to motor diaphragm |
| 19 | ![]() |
Diaphragm seal |
| 20 | ![]() |
Flow separator |
| 21 | ![]() |
Motor absorber |
| 22 | ![]() |
W/cup single-stage motor |
| 23 | ![]() |
Motor gasket |
| 24 | ![]() |
Moulded ring |
| 25 | ![]() |
Electronic card |
| 26 | ![]() |
Rear motor support’s shaped soundproofing |
| 27 | ![]() |
Motor support |
| 28 | ![]() |
Conveyor plate |
| 29 | ![]() |
Valve body |
| 30 | ![]() |
Valve flap |
| 31 | ![]() |
Float gasket |
| 32 | ![]() |
Float |
| 33 | ![]() |
Float protection grid |
| 34 | ![]() |
Screw 4x30 mm type Poly lok |
| 35 | ![]() |
Cartridge holder basket |
| 36 | ![]() |
Pre-filter housing |
| 37 | ![]() |
Pre-filter flange |
| 38 | ![]() |
Complete adapter disk |
| 39 | ![]() |
Screw 4,5x40 mm type Poly lok |
| 40 | ![]() |
Twin Power Tools cover adhesive |
