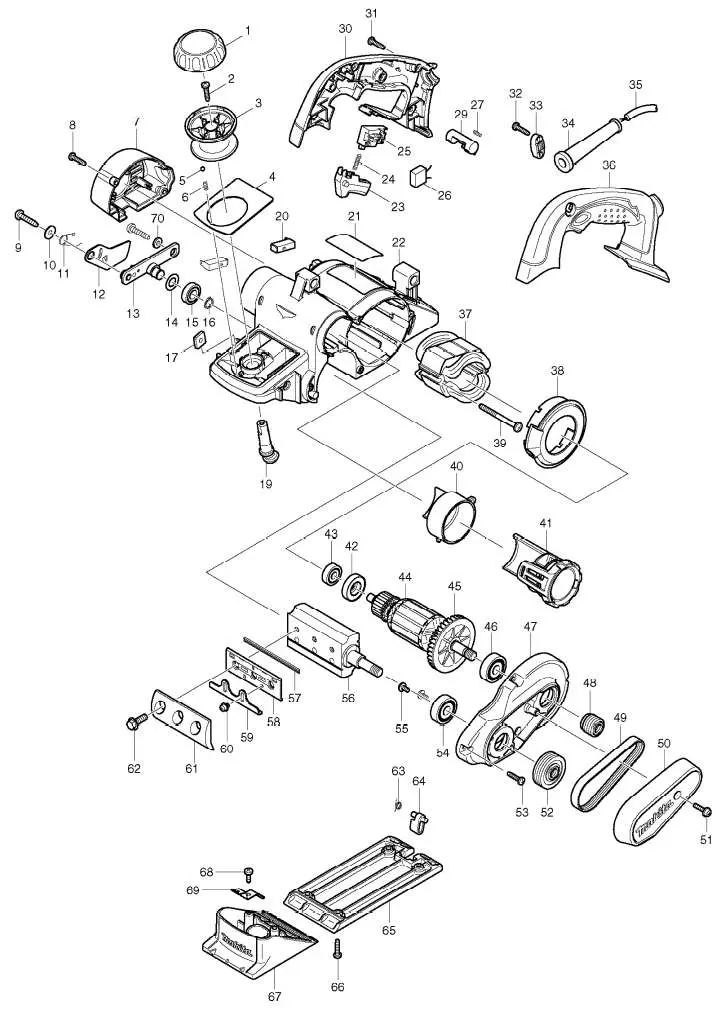

| П-п | Арт | Название |
|---|---|---|
| 1 | KNOB COVER | |
| 2 | TAPPING SCREW 4X18 | |
| 3 | KNOB | |
| 4 | FRONT PANEL | |
| 5 | STEEL BALL 4 | |
| 6 | COMPRESSION SPRING 3 | |
| 7 | REAR COVER | |
| 8 | TAPPING SCREW 4X18 | |
| 9 | TAPPING SCREW 5X25 | |
| 10 | FLAT WASHER 5 | |
| 11 | TORSION SPRING 10 | |
| 12 | DRUM COVER | |
| 13 | DRUM HOLDER COMPLETE | |
| 14 | FLAT WASHER 10 | |
| 15 | BALL BEARING 6900LLB | |
| 16 | RETAINING RING S-10 | |
| 17 | SQUARE NUT M5 | |
| 19 | CAM | |
| 20 | CARBON BRUSH CB-132 | |
| 21 | KP0810 NAME PLATE | |
| 22 | HOUSING | |
| 23 | SWITCH LEVER | |
| 24 | COMPRESSION SPRING 3 | |
| 25 | SWITCH TG71B | |
| 26 | NOISE SUPPRESSOR | |
| 27 | COMPRESSION SPRING 4 | |
| 29 | LOCK OFF BUTTON | |
| 30 | HANDLE SET INC. 36 | |
| 31 | TAPPING SCREW 4X18 | |
| 32 | TAPPING SCREW 4X18 | |
| 33 | STRAIN RELIEF | |
| 34 | CORD GUARD 10-85 | |
| 35 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 36 | HANDLE SET INC. 30 | |
| 37 |  |
FIELD ASS\\\\\'Y 220-240V |
| 38 |  |
BAFFLE PLATE |
| 39 |  |
TAPPING SCREW 5X55 |
| 40 |  |
NOZZLE |
| 41 |  |
DUCT ASS\\\\\'Y |
| 42 |  |
INSULATION WASHER |
| 43 |  |
BALL BEARING 608LLB |
| 44 |  |
ARMATURE ASS\\\\\'Y 240V INC. 42,43,45 |
| 45 |  |
FAN 62 |
| 46 |  |
BALL BEARING 6200DDW |
| 47 |  |
BRACKET COMPLETE |
| 48 |  |
V-PULLEY 4-20L |
| 49 |  |
POLY V-BELT 4-241 |
| 50 |  |
BELT COVER |
| 51 |  |
PAN HEAD SCREW M4X18 |
| 52 |  |
V-PULLEY 4-37 |
| 53 |  |
TAPPING SCREW 4X18 |
| 54 |  |
BALL BEARING 6200DDW |
| 55 |  |
+ SCREW M4X8 |
| 56 |  |
DRUM COMPLETE |
| 57 |  |
T.C.T. MINI PLANER BLADE 82 |
| 58 |  |
SET PLATE F/MINI BLADE |
| 59 |  |
ADJUST PLATE |
| 60 |  |
+ PAN HEAD SCREW M4X5 |
| 61 |  |
DRUM PLATE (2PCS/SET) |
| 62 |  |
HEX. FLANGE HEAD BOLT M6X17 |
| 63 |  |
TORSION SPRING 7 |
| 64 |  |
FOOT |
| 65 |  |
BASE |
| 66 |  |
TAPPING SCREW 4X18 |
| 67 |  |
FRONT BASE COMPLETE |
| 68 |  |
TAPPING SCREW BIND CT 4X12 |
| 69 |  |
LEAF SPRING |
| 70 |  |
FLAT WASHER 5 |
| A01 |  |
GUIDE RULE ASS\\\\\'Y |
| A02 |  |
BLADE GAUGE ASS\\\\\'Y |
| A03 |  |
SOCKET WRENCH 9 |
| A04 |  |
SCREW M5X20 |
| A05 |  |
FLAT WASHER 5 |
| A06 |  |
DEPTH GUIDE |
