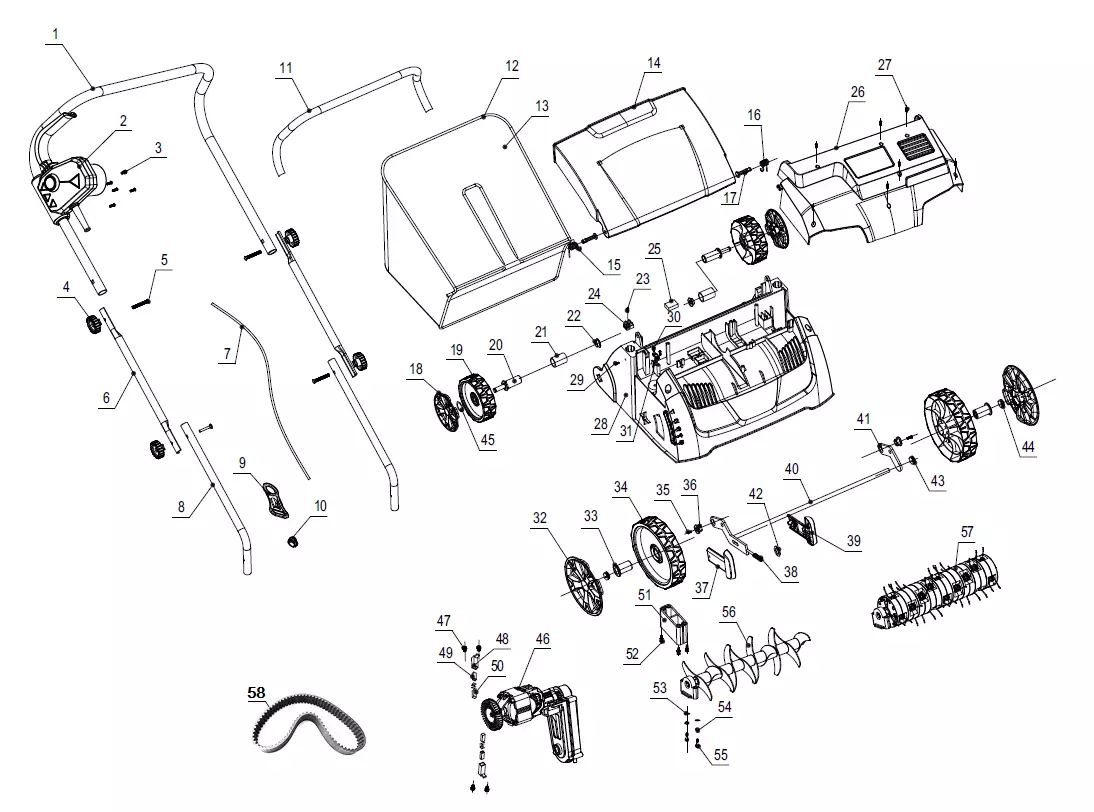

Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | UPPER HANDLE | |
| 2 | SWITCH BOX ASS\\\'Y | |
| 3 | SCREW | |
| 4 | KNOB | |
| 5 | SCREW | |
| 6 | MIDDLE HANDLE | |
| 7 | CONNECTION CABLE 2x1,0mm2 | |
| 8 | LOWER HANDLE | |
| 9 | CABLE HANGER | |
| 10 | CABLE CLIP | |
| 11 | HANDLE SHEATH | |
| 12 | COLLECTION BAG SUPPORT | |
| 13 | GRASS CATCHER BAG MAKITA | |
| 14 | REAR FLAP | |
| 15 | REAR FLAP TORSION SPRING -LEFT | |
| 16 | REAR FLAP TORSION SPRING -RIGHT | |
| 17 | PLASTIC PIN | |
| 18 | REAR WHEEL COVER | |
| 19 | REAR WHEEL | |
| 20 | BIG BAND PULLEY AXLE | |
| 21 | REAR WHEEL AXLE SLEEVE | |
| 22 | REAR AXLE CAP | |
| 23 | SELF-TAPPING SCREW 3x18 | |
| 24 | TERMINAL SET | |
| 25 | PCB ASS\\\'Y | |
| 26 | MOTOR COVER | |
| 27 | SCREW | |
| 28 | DECK MAKITA BLUE | |
| 29 | SCREW | |
| 30 | SCREW | |
| 31 | CABLE PRESSBOARD | |
| 32 | FRONT WHEEL COVER | |
| 33 | FRONT WHEEL AXLE | |
| 34 | FRONT WHEEL | |
| 35 | SCREW | |
| 36 | FRON AXLE CAP | |
| 37 | HEIGHT ADJUSTMENT HANDLE LEFT COVER | |
| 38 | HEIGHT ADJUSTMENT SPRING | |
| 39 | HEIGHT ADJUSTMENT HANDLE RIGHT COVER | |
| 40 | WHEEL AXLE ASS’Y | |
| 41 | CONNECTION PLATE | |
| 42 | WASHER 5 | |
| 43 | NUT | |
| 44 | SELF-LOCKING NUT M6 | |
| 45 | CIRCLIP | |
| 46 | MOTOR ASS\\\'Y | |
| 47 | 3 IN 1 SCREW M4x12 | |
| 48 | BRUSH HOLDER | |
| 49 | BRUSH HOLDER | |
| 50 | CARBON BRUSH | |
| 51 | LOWER BEARING HOLDER | |
| 52 | 3 IN 1 SELF-TAPPING SCREW 4x20 | |
| 53 | FLAT WASHER 6 | |
| 54 | SPRING PAD 6 | |
| 55 | BOLT M6x45 | |
| 56 | SCARIFIER BLADE SHAFT ASS. | |
| 57 | RAKER BLADE SHAFT ASS. | |
| 58 | РЕМЕНЬ |
